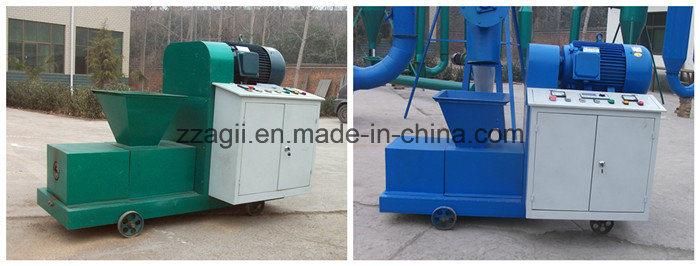

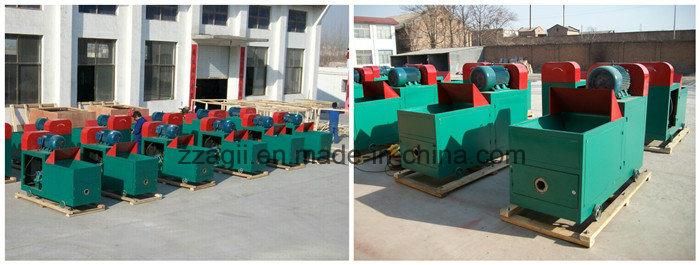

Home Use 200kg/H Fire Wood Briquette Making Machine for Sale
Zhengzhou AG Machinery & Equipment Co., Ltd.- Work Forms：Screw
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Moulding Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：ZBJ-50
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE
- Power：15kw Electric Motor
- Capacity：200kg,H Briquette Making
- Diameter of F Briquette：30,40,50mm
- Machine Weight：700kgs
- Electrical Cabinet：Delixi Electrical Components
- Keyword 1：Biomass Briquette Machine
- Keyword 3：Sawdust Briquette Machine
- Keyword 2：Wood Briquette Machine
- Keyword 4：Screw Briquette Machine
- Keyword 5：China Briquette Machine
- Transport Package：Wood Carton
- Specification：1780*750*1290 mm
- Trademark：AGII
- Origin：Zhengzhou, China
- Production Capacity：100 Sets,Month
Description
(kg/h)
(kw)
(mm)
(kg)
Raw material for making briquettes:
Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton stalks ,nutshell, coconut shell, etc

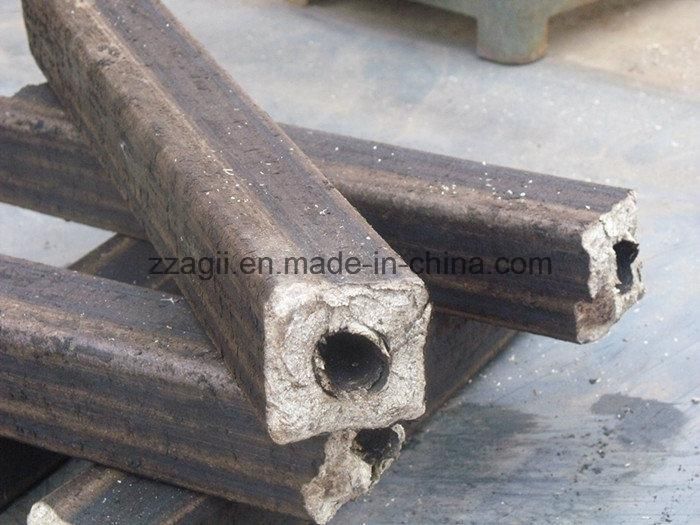

Wood Briquettes:
1) This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.
2) The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
3) The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on
4) The available length could be: 20cm,30cm, 40cm, 50cm
5) Final Briquette : Specific gravity: 1300-1900kg/m Calorific value: 4500-5000kcal/kg
Application:
As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :
1) Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..
2) Furnace & Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)
3) Brick Kilns: It is the total, substitute of steam coal.
4) Residential & Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.

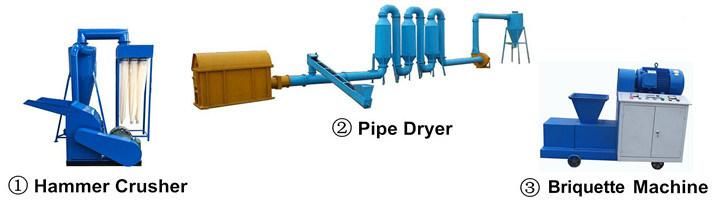

Biomass Wood Briquette Making Line:
