• Model NO.：R-RP630
• Condition：New
• Color：Black
• After-sales Service：Lifetime Online Technical Support
• Motor Power：20.37kw
• Keyword：Drum Sander
• Transport Package：Plywood Box
• Specification：2000*1900*2000mm
• Trademark：ZD
• Origin：China
• HS Code：84659300

Basic Info.

Model NO. R-RP630 Condition New Color Black After-sales Service Lifetime Online Technical Support Motor Power 20.37kw Keyword Drum Sander Transport Package Plywood Box Specification 2000*1900*2000mm Trademark ZD Origin China HS Code 84659300

Product Description

 general calibrating sanding machine for wood is mainly used for surface sanding and fixed thickness.
1; This R-RP series calibrating sander remove amount is within 1mm, and removing amount is different depends on different kinds of wood panels. Such as Mahogany removing amount is 0.3mm, poplar removing amount is about 0.5mm.

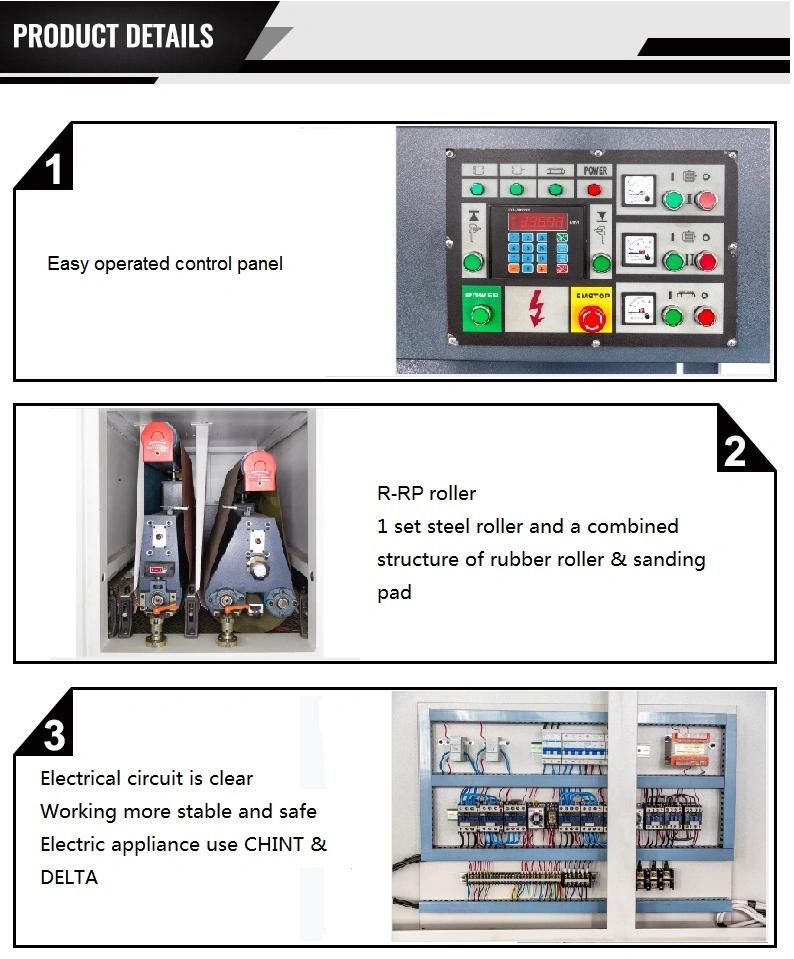

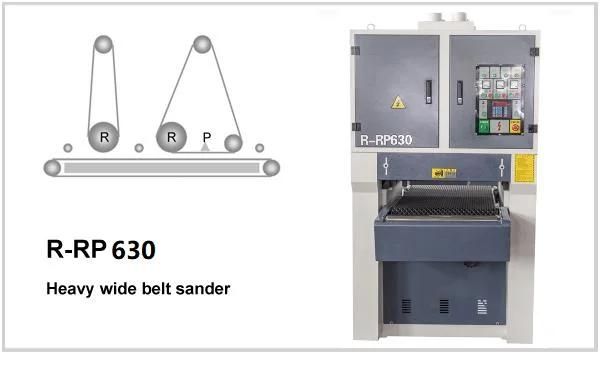

2:The R-RP structure is one sanding roller and one combined sanding with pad structure. The front roller is an adjustable steel roller, which is used to calibrate thickness, and 2^nd combined structure with sanding and pad can not be adjustable thickness, which is used to fine polishing. The sanding pad structure simulates manual polishing to do fine sanding.
3: Sanding belts grit: 1^ST sanding unit is equipped with rough sanding grits sanding belt, and 2^nd sanding unit is equipped with fine grits sanding belt. We supply the sander paper, the standard sanding paper grit is the first one is #80, and the second sanding unit is #120. Also, we could customize the different grits as per your request, there are other sanding grits sanding paper for options, such as #100,#180, etc.
4:Optional device: The vacuum working table is available for all the models of the sander. The 1^st and 2^nd sanding units are roller structures, equipped with vacuum working tables and panel pressing rollers, which calibrate the soft panel, not flatness. This vacuum working table is mainly used for sanding the soft and thinner panels.

Specifications:


Model	R-RP630	R-RP1300
Max working width	630mm	1300mm
Material thickness	2.5-120mm	2.5-120mm(option 2.5-160mm)
Min. Working length	350mm	350mm
Feeding speed	6-30m/min	6-30m/min
1# sanding belt speed	18m/min	18m/min
2# sanding belt speed	14m/min	12m/min
Size of sanding belt	650*1900mm	1320*2020mm
Main motor power	11kw,7.5kw	37kw,22kw
Total power	20.74kw	56.74kw
Working air pressure	0.5mpa	0.55mpa
Volume of dust collecting	5000m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s
Overall dimension (L*W*H)	1700*1100*2050mm	2750*2200*2050mm
Weight	1800kg	3200kg
