Woodworking Machinery

Double Ended Mortise Machine

Qingdao Samac International Trading Co., Ltd.
  • Type:Wooden Mold Router
  • Spindle Layout:Horizontal
  • Spindle Number:Double-Spindle
  • Feed Mode:Manual
  • Controlling Mode:CNC
  • Certification:ISO

Base Info

  • Model NO.:RMS-3112
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Transport Package:Standard Packing or Packing According to Customer
  • Specification:R200-CNC
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:90sets,Month


Basic Info.

Model NO. RMS-3112 Customized Customized Condition New Color Customized Transport Package Standard Packing or Packing According to Customer Specification R200-CNC Trademark SAMACH Origin China Production Capacity 90sets/Month

Product Description

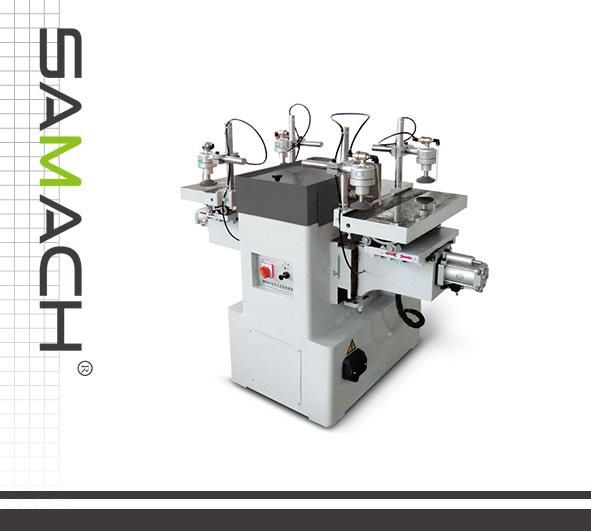

CNC Mortise Machine

Double Ended Mortise Machine

Double Ended Mortise Machine

It is the essential tenon machine for dining chair ,table and solid wood furniture industry,has the advantage of high efficient.it can process square tenon and oval tenon.round tenon,mitre tenon, High production rate up to 16 pcs/min.


1.Built with two tables for higher efficiency operations
2. Adjustable tenon width and depth
3. continuous tenoning motion
4. Miter gauge provided on the table allows for cutting bevel tenons
5. Feeding speed is adjustable  for cutting various wood materials
6.10"HMI touch screen provides user-friendly operations and allow for selection of various tenon shapes.
7. X,Y Axis employ servo motor for directly driving the ball screw through a coupling,which features low backlash and high positioning accuracy
8. Equipped with air pressure protection switch ,achieve machine stop protection  in deficiency,safety to operate.
9. Motion simulation function ensures the correct selection of tenon shape and avoid a danger of cutterhead bumping
10.The work table and machine frame adopt quality castings ,which can keep the stable Performance and good accuracy

Working Table Lift Stroke80MM
Angle of working table's inclination±20°
Max.Mortise width120±2RMM
Max.Mortise depth60MM
Spindle speed9500R/MIN
Install power2.2KW
Packing Size(L*W*H)1430X1240X1160MM
Net Weight500KG
