• Model NO.：YHCP
• Voltage：380,415V
• Stroke：800mm
• Cylinder：2*360*800mm
• Drying Method：Steam or Thermal Oil
• The Max Opening：1800mm
• Motor Power：7.5kw
• Weight ：14000kg
• Warranty：1year
• Function：Plywood LVL Bb Pressing
• Application：Plywood Line
• Transport Package：Shrinkage Film for Overall of Main Equipment
• Specification：3550*1370*4650mm
• Trademark：YIHE MACHINERY
• Origin：Linyi China
• Production Capacity：20sets,Month

Basic Info.

Model NO. YHCP Voltage 380/415V Stroke 800mm Cylinder 2*360*800mm Drying Method Steam or Thermal Oil The Max Opening 1800mm Motor Power 7.5kw Weight  14000kg Warranty 1year Function Plywood LVL Bb Pressing Application Plywood Line Transport Package Shrinkage Film for Overall of Main Equipment Specification 3550*1370*4650mm Trademark YIHE MACHINERY Origin Linyi China Production Capacity 20sets/Month

Product Description

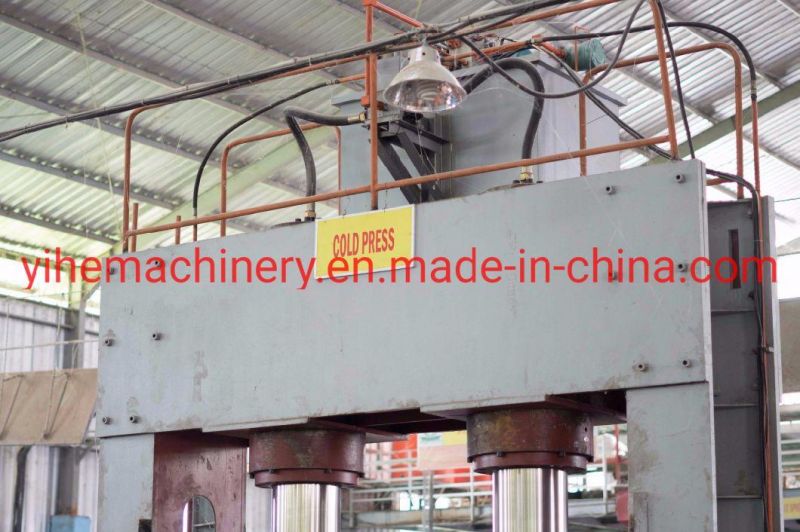

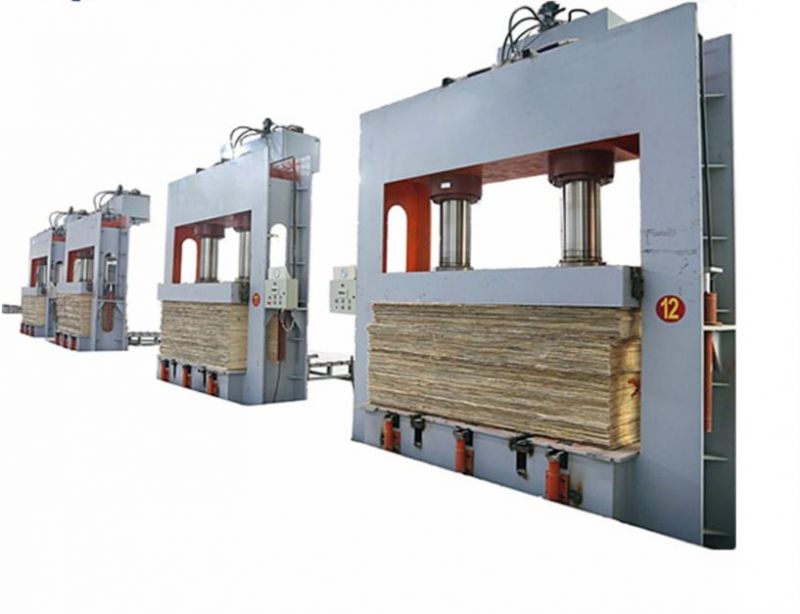

Cold press machine for plywood in China




Cold press for plywood making machine.

Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantage of our pre-press equipment
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.

Features:

1 This machine is used for pre-pressing process of making plywood, block board and decorative board.
2 The whole structure is designed and manufactured based on advanced international experience and new technological requirements.
3 The electric system and hydraulic system of the machine have been examined precisely and the free-beam will not fall by its own gravity with results assuring excellent quality.

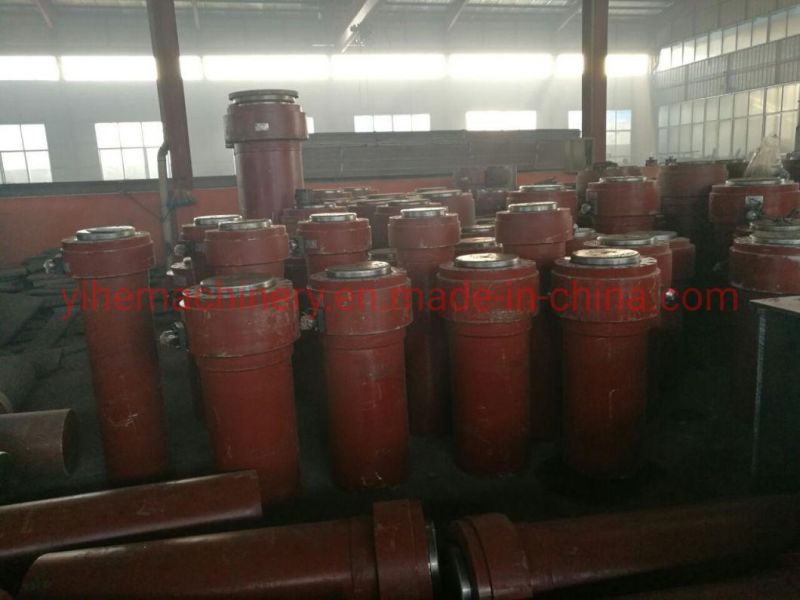

4 The cylinder is made of super-hard metal,and the seal use low-resistance stepped gaskets, no leakage.
Technical Specifications


Max pressure:	508 Tons	Weight:	14Tons
Board feeding direction:	Transverse	The max opening:	1800mm
Layers:	1Layers	Work plate size:	2700*1370mm
Cylinder:	2*360*800mm	Cylinder:	2*80*800mm
Stroke:	800mm	Overall dimension:	3550*1370*4650mm
power:	7.5kw	Thickness of the frame:	30mmQ235
Middle beam:	400mm	Composite frame:	Assembled
Working methods:	Full automatic	Upper and bottom beam:	900mm

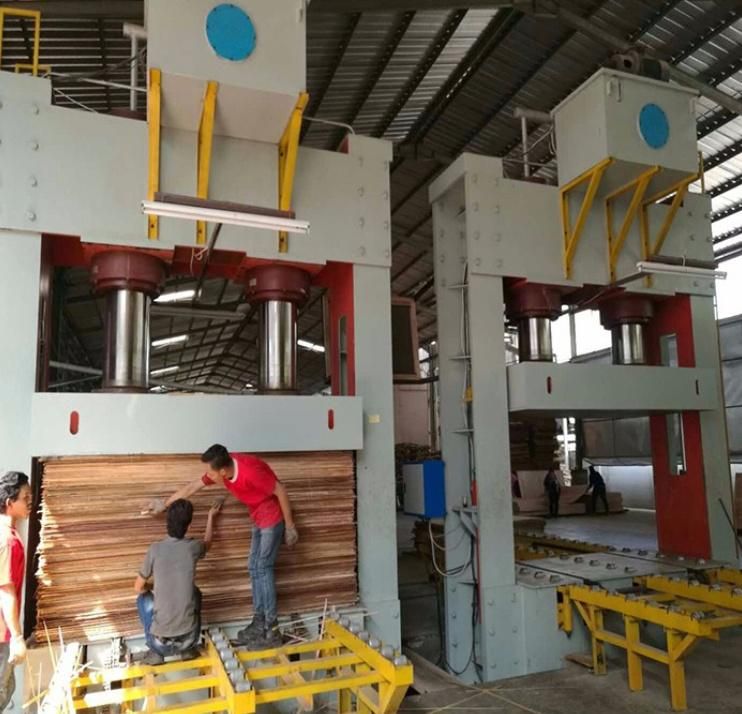

Images in Detail

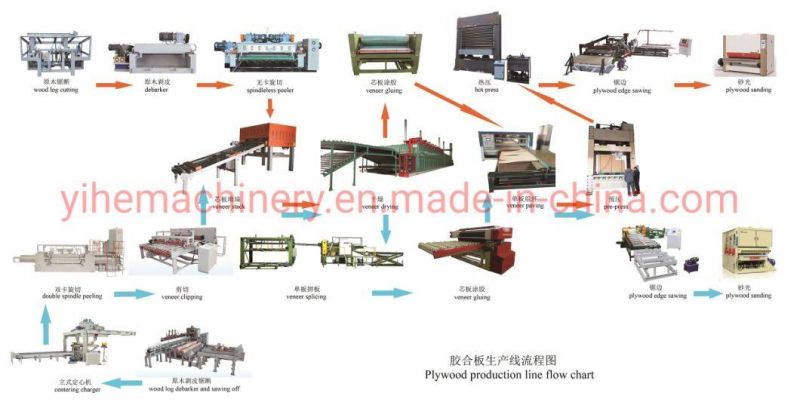

Plywood Production Line



Lead Delivery time:Normally 15days

Payment terms:30% in advance,70%before shipping from port

Warratry time:1 year

Service:Technician door to door service/online service 7/24
