• Model NO.：ZDR-R1300
• Color：Customized
• Transport Package：Plywood Case
• Specification：Net weight: 2200kg
• Trademark：QDZD
• Origin：China
• HS Code：84659300
• Production Capacity：500sets

Basic Info.

Model NO. ZDR-R1300 Color Customized Transport Package Plywood Case Specification Net weight: 2200kg Trademark QDZD Origin China HS Code 84659300 Production Capacity 500sets

Product Description

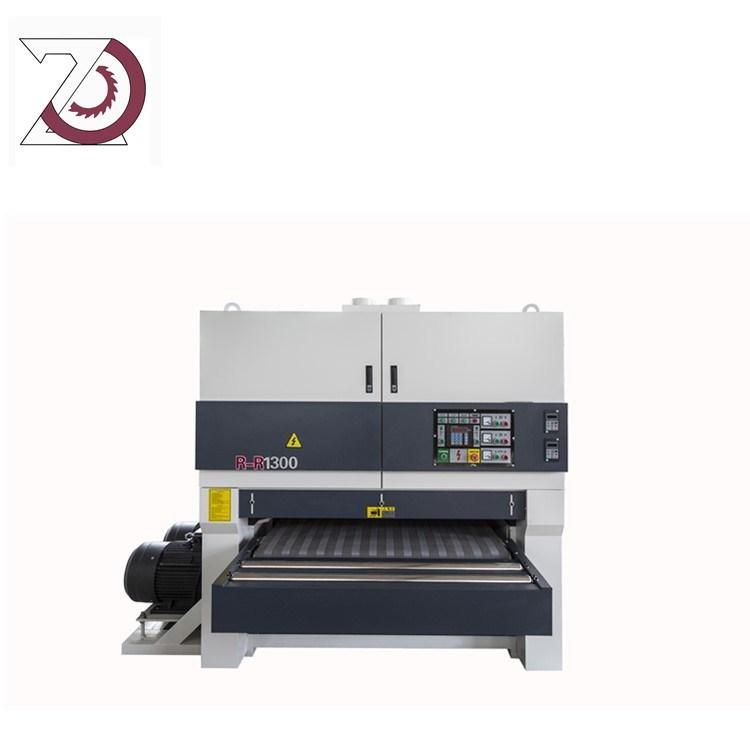

Full automatic wide belt sander woodworking sanding machine
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
Specification:


Max. working width	630mm	1000mm	1300 mm
Working thickness	2.5-110 mm	2.5-110 mm	2.5-110 mm
No.1 sanding belt speed	20 m/s	20 m/s	20 m/s
No.2 sanding belt speed	18 m/s	18 m/s	18 m/s
Sanding belt size	650*1900mm	1020*2020	1320*2020 mm
Conveyor speed	6~38 m/min	6~38 m/min	6~38 m/min
Total power	16.87kw	20.25kw	26.37kw
Working pressure	0.55 MPA	0.55 MPA	0.55 MPA
Consumption of compressed air	5000 m³/h	5000 m³/h	5000 m³/h
Overall dimension	1700*1100*2050mm	1700*1400*2050mm	2750*2200*2050mm
Net weight	1300kg	2000kg	3200kg

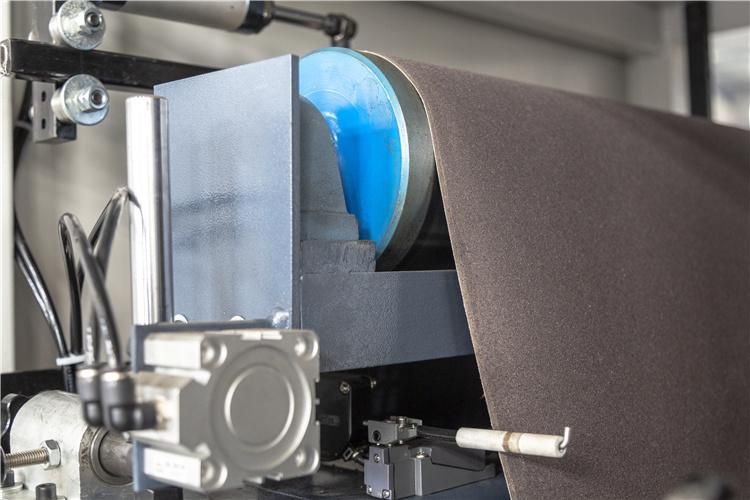

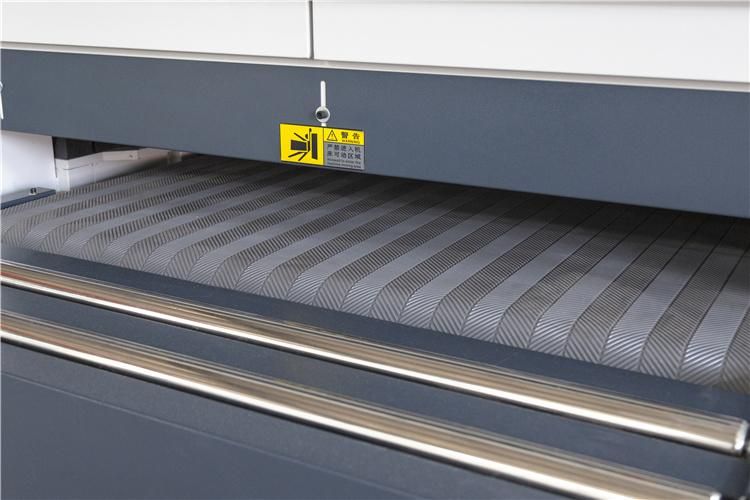

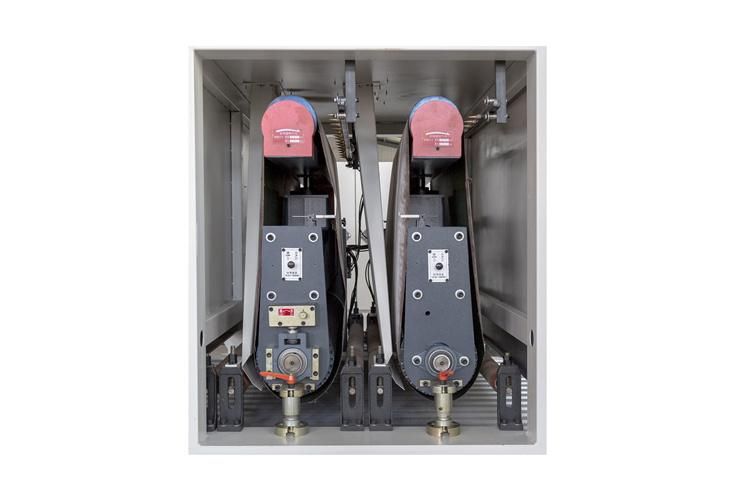

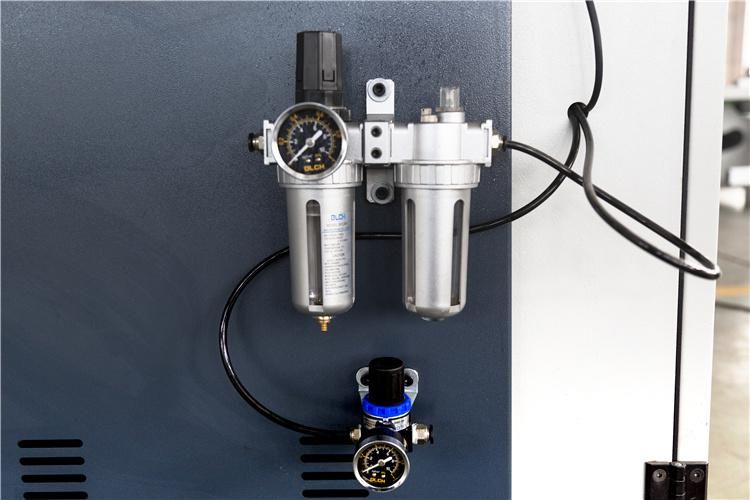

 Product details:

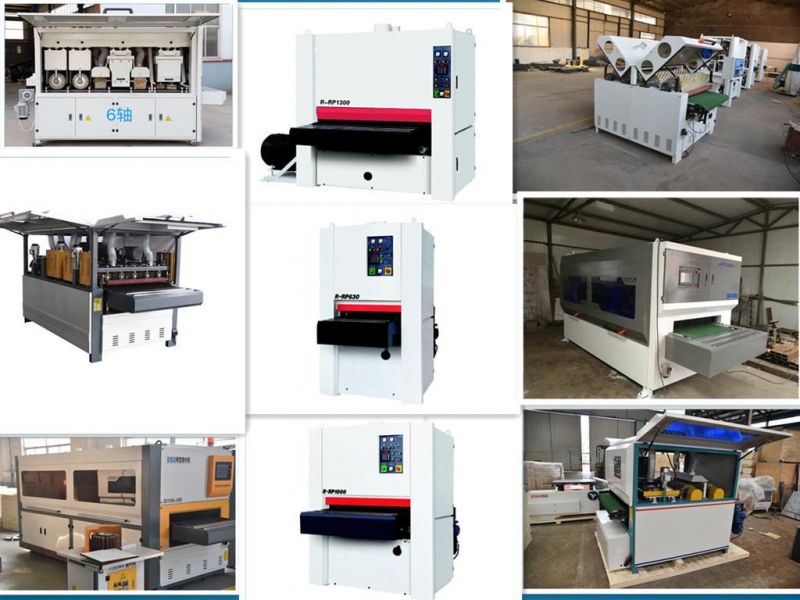

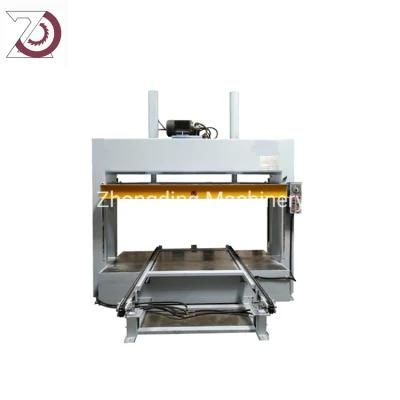

Similar product:




Feature:

1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller goes up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller go up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.




Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO
