• Model NO.：M25
• Feed Mode：Mechanical
• Controlling Mode：CNC
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm
• Spindle Power：4.5kw
• Delivery Time：in 7 Days
• Warranty：1 Year
• After-Sale Service：Whole Life
• Transport Package：Wood
• Specification：CE
• Trademark：flying
• Origin：China
• Production Capacity：100PC,Month

Basic Info.

Model NO. M25 Feed Mode Mechanical Controlling Mode CNC Certification CE Customized Customized Condition New Color Customized Working Area 1300*2500mm Spindle Power 4.5kw Delivery Time in 7 Days Warranty 1 Year After-Sale Service Whole Life Transport Package Wood Specification CE Trademark flying Origin China Production Capacity 100PC/Month

Product Description

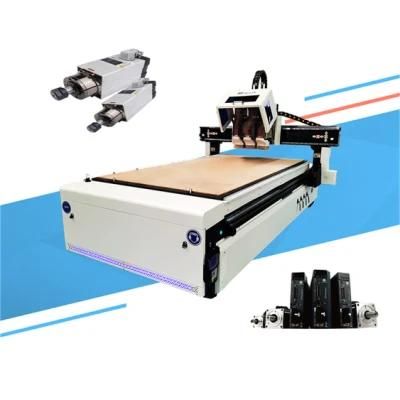

CNC Router/Wood engraving machineModel: M25

Features:
1. Whole Steel structure, imported square orbit, ball-screw for z axis, gear-wheel drive for x axis and y axis,The traveling in air reach 30 meters/minute ,the cutting speed can reach 25 meters/minute.
2. This machine adopts advanced DSP numerical control system .It has the characteristic of operating with the handle, large screen display ,convenient operation and easy maintenance .It is designed with more human nature.
3. Unique intelligent calculation fully develop the potential of the motor and lead to high speed processing ,and the synchronization of curves and straight lines. It can make the curves perfect.
4. Equipped with stronger casting steel gantry, whole machine is much more stable and durable!
5. Professional 3D control system.
6. Equipped with standard auto lubricating oil system, which ensure the machine last longer.
7. Equipped with 4.5kw spindle motor, Six districts vacuum suction table, 5.5kw vacuum pump and dust collector, It is mainly applicable in the manufacture of furnitures ,wooden doors, and other wood works.





Speicfications:

Model Name	M25B
X, Y axis working area	1, 300 X 2, 500mm
Z axis working area	>200mm
Table size:	1, 480 X 3, 000mm
Max. Speed	32, 000mm/min
Max. Working speed	10, 000mm/min
Working delicacy	0.02mm
Reposition accuracy	0.05mm
Max. Feeding height	250mm
Engraving Command	G code, u00, mmg, plt
Software	Type3 software, Wentai software, Artcam software
Max. Power consumption	4.5kW (option: HSD 6KW/9KW)
Spindle	4.5KW variable speed, water cooled motor
Spindle speed:	24, 000rpm
Work type	Stepper
Working voltage	AC 380V, 50Hz
Manner of receiving data	usb cable, Operation handle
Running circumstance temperature	0 - 45
Relative humidity	30% - 75%
Machine Size	3000*1860*1700mm
Net Weight	1000kg
