Multi-Heads Woodworking 380V Vacuum Table Wood CNC Router 1325 1530 2030 with 3 Axis
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New

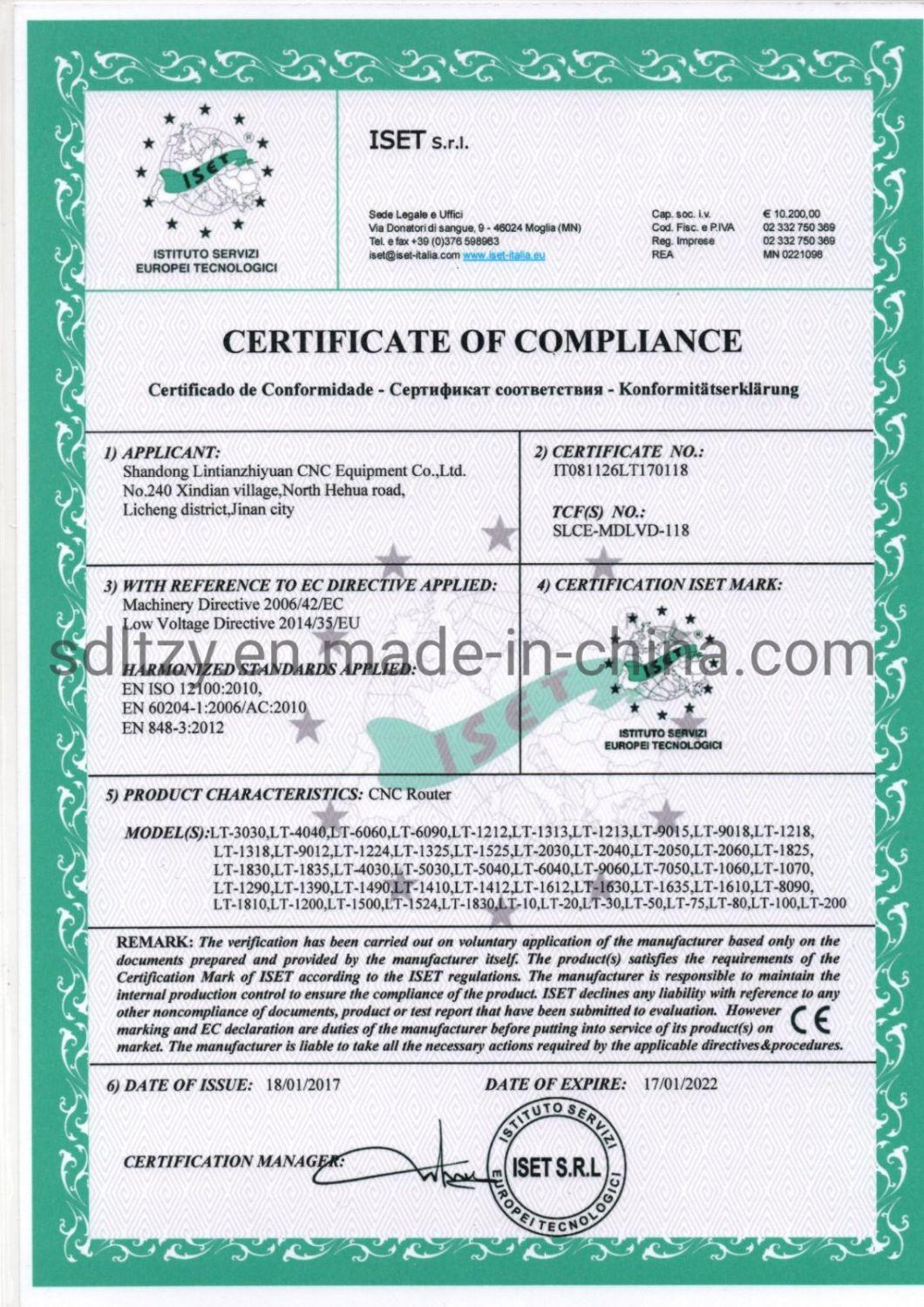

- Certification：CE
- CNC or Not：CNC
- Voltage：380V
- Working Area：1300X2500mm
- Spindle：7.5kw 3.5kw Air Cooled Spindle
Base Info
- Model NO.：LT-1325
- Control System：Syntec FC Control System
- Working Table：Vacuum Table
- Dust Collector：Dual Bags Dust Collector
- Working Voltage：AC380V
- Reducer：Shimpo Reducer
- Transport Package：Plywood Case
- Specification：13cbm
- Origin：China
- HS Code：8465990000
- Production Capacity：300sets,Year
Description
Overview
Product Description
Detailed PhotosProduct Parameters Model 1325/1530/2030/2040 Working area 1300x2500mm Table Vacuum table with 5.5kw vacuum pump Spindle 3.5kw x3+7.5kw x2 air cooled spindle Control system Syntec FC control system Motors&drives Leadshine 1.3kw servo motors&servo drives Reducer Japan Shimpo reducer Dust collector Dual bags dust collector Inverter 11kw inveter Guide rail Hiwin linear square guide rail 25mm Driving method X,Y axis by 1.5 helical gear rack,Z axis by pneumatic Positioning cylinder 3+2 positioning cylinder Others Push device,auxiliary feeding device,tool sensor;tool box,etc Working voltage AC220V/AC380V,3 phase,50/60Hz
