• Model NO.：BY213x8,16(10)H
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Pressure：200t
• Transport Package：Wrapping Film
• Specification：31000KGS
• Trademark：Metro
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：50set,Month

Basic Info.

Model NO. BY213x8/16(10)H Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Pressure 200t Transport Package Wrapping Film Specification 31000KGS Trademark Metro Origin Shandong, China HS Code 8465990000 Production Capacity 50set/Month

Product Description

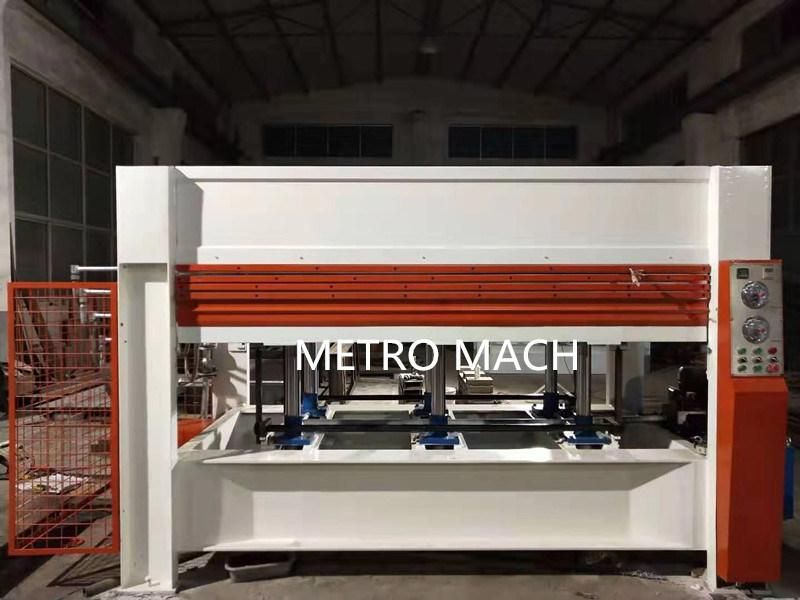

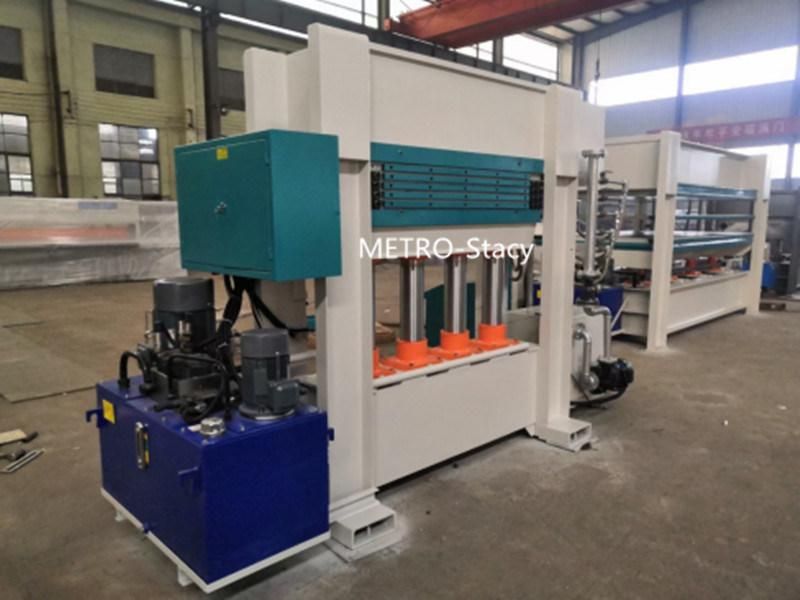

200T 10 Layers Hot Press Machine For Door
Product Descriptions :

Hot press is suitable for furniture manufacturers, wooden door factories, wood-based panels secondary processing veneer, used for hot pressing bonding home panels, building partition, wooden doors, fire door surface material veneer.
1. The heating platen is processed with complete steel plate, smooth surface with little tolerance,  it can heat panels evenly.
2. The frame of machine is made of high-precision standard steel plate. It can prevent the deformation caused by high pressure.
3. Strict quality control, Good quality NO.1 standard steel plate,
4. Good quality oil cylinders, no oil leakage.


Technical Parameters:

Various pressure:50T/80T/100T/160T/200T ... is available.
Pressing size: 3x6ft, 4x8ft, 5x5ft, 4x10/12ft etc.

Technical Parameters:


Model	BY213x8/16(10)H
Total pressure	200ton
Feeding direction	Transversal
Dimension of hot platen	2100x1000x42mm
Number of layers	10
Number of platens	11
Opening	100mm
Diameter & stroke of Oil cylinder	Ф140mmx1000mm
Number of cylinders	6
Total power	7.5Kw+3Kw
Electrical components	Scheider or Siemens brand
Scissor lifter	Rise height 1800mm
Overall dimension (Approx)	3800x1300x3200mm
Net Weight (Approx)	16000Kg
Delivery time	30 days
