• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Power：1.5kw 2.2kw or 3.0kw
• Working Size：Customized
• Spindle Quantity：Customized
• Table：Vacuum Table or T-Slot Table or Together
• Z Axis Height：Customized
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：dwin made in china
• Origin：Jinan, Shandong, China
• HS Code：8465990000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW1325 Customized Customized Condition New Color Customized Spindle Power 1.5kw 2.2kw or 3.0kw Working Size Customized Spindle Quantity Customized Table Vacuum Table or T-Slot Table or Together Z Axis Height Customized Transport Package Plywood Box, Free From Fumigation Specification CE Trademark dwin made in china Origin Jinan, Shandong, China HS Code 8465990000 Production Capacity 50 Sets Per Month

Product Description

Wood Cabinet Making Woodworking Vacuum Bed CNC Router

This machine is cnc router using for woodworking process, can make all kinds of wood furniture, wood arts and crafts, with vacuum table attached on the machine, can absorb light materials, if vacuum table is not enough to fix your materials, we can design t-slot on the table to help fix.

Woodworking Vacuum Bed CNC Router has following features:

Place of Origin: China
1) Woodworking: three-dimensional wave board processing, wooden door, screen, craft window processing and different kinds of furniture assistance processing

2) Advertisement stuff: the advertisement label and marking manufacturing, cutting, various kinds of materials and advertisement decoration products manufacturing

3) Mold manufacturing: our routers may carve metal molds including copper, aluminum, iron, as well as non-metal molds like marble, plastic board and wooden board

4) Other lines: our routers may carve various kinds of shade vulture, relief, craft and gift

5) High speed processing: the curving and linear speeds are consistent and the running rate amounts to above 35 meters/minutes

6) Excellent parts: our company uses Italy ball screw, imported linear rail and outstanding step-by-step system. We also use imported bearing and highly efficient main axle electrical machinery

7) Compatible software: our software is compatible with type 3/Artcam/Castmate and other kinds of CAD/CAM design software

8) Convenient hold controls: we uses advanced USB connection type with DSP operating system. Our routers can completely work off-line and do not take any computer resources

9) Besides, our routers have realized automatic starting and stopping of DSP operating system

10) Excellence performance: our routers have the features of recording after stop and the power failure may be restored

12) The vacuum table can have strong absorbing ability .together with the Vacuum pump for 5.5kw

Application and Usage:
-  Kitchen Cabinets
- Office furniture
- Real wood and MDF panels

Features
1. Cast steel structure makes our router more stable
2. Auto lubrication makes maintenance much easier
3. Separate controlling cabinet makes operations more convenient
Machine specifications:

Specifications:

1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1460x2750mm
3	X,Y,Z Traveling Positioning Accuracy	±0.05/300mm
4	X,Y,Z Repositioning Positioning Accuracy	±0.05mm
5	Table Surface	Bakelite Vacuum Ttable (Option:T-slot table)
6	Frame	Cast steel structure
7	X, Y Structure	Rack and Pinion Drive,Hiwin Rail Linear Bearings
8	Z Structure	Ball Screw, Hiwin Rail Linear Bearings
9	Max.Power Consumption (Without spindle)	2.0Kw
10	Max.Rapid Travel Rate	32000mm/min
11	Max.Working Speed	20000mm/min
12	Spindle Power Motor	4.5KW HSD Spindle
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper system(Option:Servo System)
15	Working Voltage	AC220V/50/60Hz,1PH (Option: 380V 3PH)
16	Command Language	G Code
17	Operating System	DSP System (Option: Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25
21	X,Y Resolution	<0.02mm
22	Software Compatability	Type3 software,Ucancam software(Option:Artcam software)

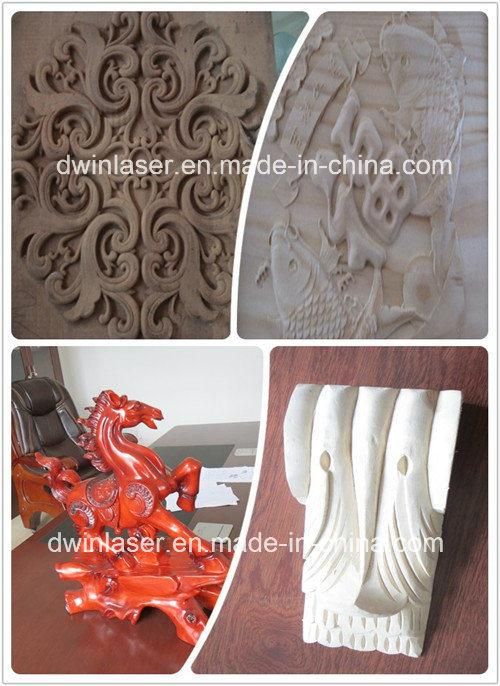

Samples

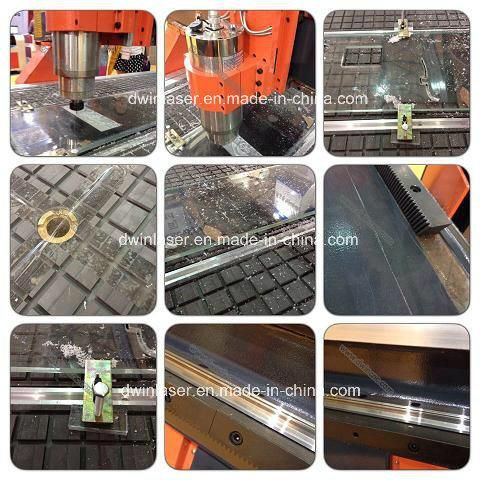

Machine details
