• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y Working Area：1300mm*2500mm
• Z Working Area：200mm
• Table Size：2100mm*3100mm*1750mm
• Max Feeding：4m-5.5m,Min
• Work-Holding：2m-3m,Min
• Resolution：0.005mm
• Interface：USB
• Command：G Code*.U00*.Mmg*.Plt
• Drive Motor：Leadshine Stepper Motor
• Spindle Power：5.5kw Spindle
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW1325 Customized Customized Condition New Color Customized X,Y Working Area 1300mm*2500mm Z Working Area 200mm Table Size 2100mm*3100mm*1750mm Max Feeding 4m-5.5m/Min Work-Holding 2m-3m/Min Resolution 0.005mm Interface USB Command G Code*.U00*.Mmg*.Plt Drive Motor Leadshine Stepper Motor Spindle Power 5.5kw Spindle Transport Package Plywood Box, Free From Fumigation Specification CE Trademark DWIN Origin Jinan, Shandong, China HS Code 846599 Production Capacity 50 Sets Per Month

Product Description

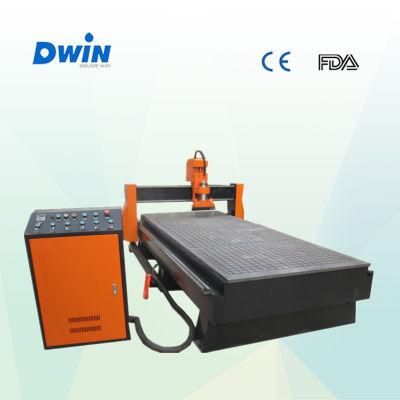

                                         DW1325 3KW/4.5KW/5.5KW Vacuum table woodworking cnc router




Product overview:


This series is at service of three dimensional cylinder engraving .Machine configuration is changed from materials.Ordinary series mahines can also added the rotary device to engraving the cylinders.

Product Features:

1.360° cylinder engraving. Expands the application of CNC router .can applicable in the furniture and gifts industry .

2.Cylinder materials is fixed by chuck thought three holders,force ecerted uniformly and effectively ,and center positioned accurately ,so guarantee the working accuracy.

3.Rotary's diameter and length can be customized.

4. The machine has the adantages of break point and break power continue engraving.

Parameter details :

XY working area	1300mm x2500mm x 200mm
Z working area	200mm
Table size	2100mm*3100mm*1750mm
Max feeding	4m-5.5m/min
Work-holding	2m-3m/min
Resolution	0.005mm
Interface	USB
Command	G code*.u00*.mmg*.plt
Surroundings for software	Windows98/2000/xp
Power(not include the spindle)	500W
Working voltage	AC220V/50Hz
spindle power rate	5.5KW Italy HSD Spindle
spindle rotating speed	0-24000rpm/min
Drive motor	steper

Guarantee & After Sales Service:

1)  The machine guarantee is 18 months.
2)  24 hours technical support by email or calling.
3)  Friendly English verson manual and operation video CD disc.

Applicable:

Cylindrical or three-dimensional engraving on stone,wood,metal and advertising industry.
