• Model NO.：JBT102
• Panel Thinkness：10-45mm
• Min.length panel：40mm
• Min.width panel：40mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Operating Temperature：120-170ºC
• Glue Pot Volume：270ml
• Weight：9.5kgs
• Motor Power：15kw
• Machine Size：380*330*380mm
• Independent Packing Size：380*300*420mm
• Whole Package Size：465*430*515mm
• Total Power：765W
• Transport Package：Wooden Case
• Specification：0.05CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. JBT102 Panel Thinkness 10-45mm Min.length panel 40mm Min.width panel 40mm Manufacturing Principles Glue Tank Overhead Customized Customized Operating Temperature 120-170ºC Glue Pot Volume 270ml Weight 9.5kgs Motor Power 15kw Machine Size 380*330*380mm Independent Packing Size 380*300*420mm Whole Package Size 465*430*515mm Total Power 765W Transport Package Wooden Case Specification 0.05CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

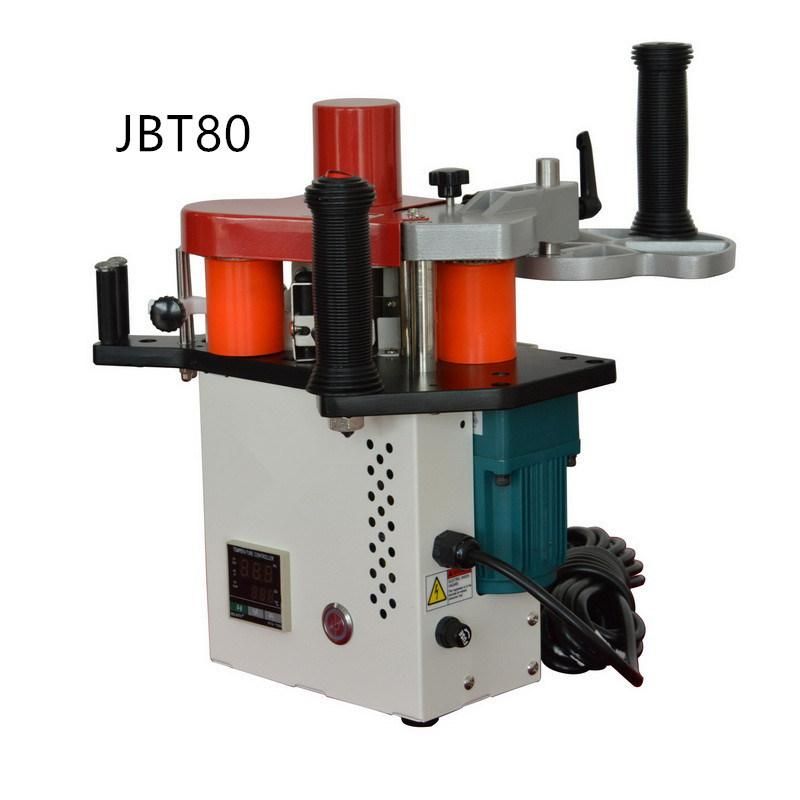

Portable Edge Banding Machine
Technical Specification:


Type	JBT80	JBT90	JBT101	JBT102
Min edge diameter	40 mm	40 mm	40 mm	40 mm
Feeding speed	5 m/min	0.5-3.5 m/min	0.5-8 m/min	2-6 m/min
Banding thickness	0.3-3.0 mm	0.3-3.0 mm	0.3-3.0 mm	0.6-3.0 mm
Banding width	10-45 mm	10-45 mm	10-45 mm	10-60 mm
Operating temperature	120-170ºC	120-170ºC	120-180ºC	120-180ºC
Motor power	15 w	15 w	20 w	25 w
Total power	765 w	765 w	620 w	725 w
Glue pot volume	270 ml	270 ml	300 g	570 g
Weight	9.5 kgs	9.5 kgs	10 kgs	11 kgs
Machine size	380*330*380 mm	380*330*380 mm	380*330*380 mm	390*350*310 mm
Independent packing size	380*300*420 mm	380*300*420 mm	380*300*420 mm	370*350*420 mm
Whole package size	465*430*515 mm	465*430*515 mm	465*430*515 mm	465*430*515 mm
0-45°Tilting	no	no	Yes	Yes
Double Surface Gluing	no	no	no	Yes

Feature:

1. The perfect solution for edge banding of all sizes !
2. The edge bander can be used for large sized wooden boards and half-finished wooden products.
3. The board can be fixed in place while the hand-held edge bander proceeds.

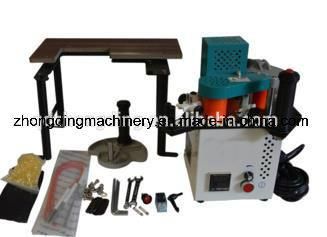

4. It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand.
5. The process of edge banding is the same for normal sized loads.

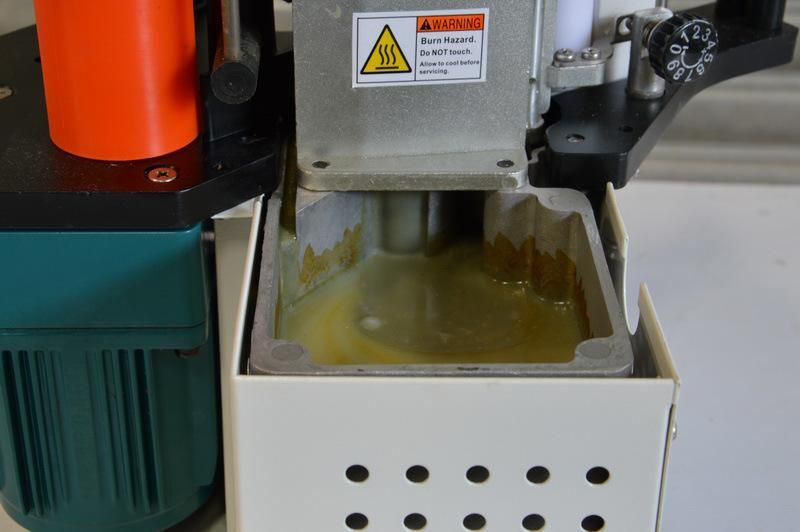

Product Details:

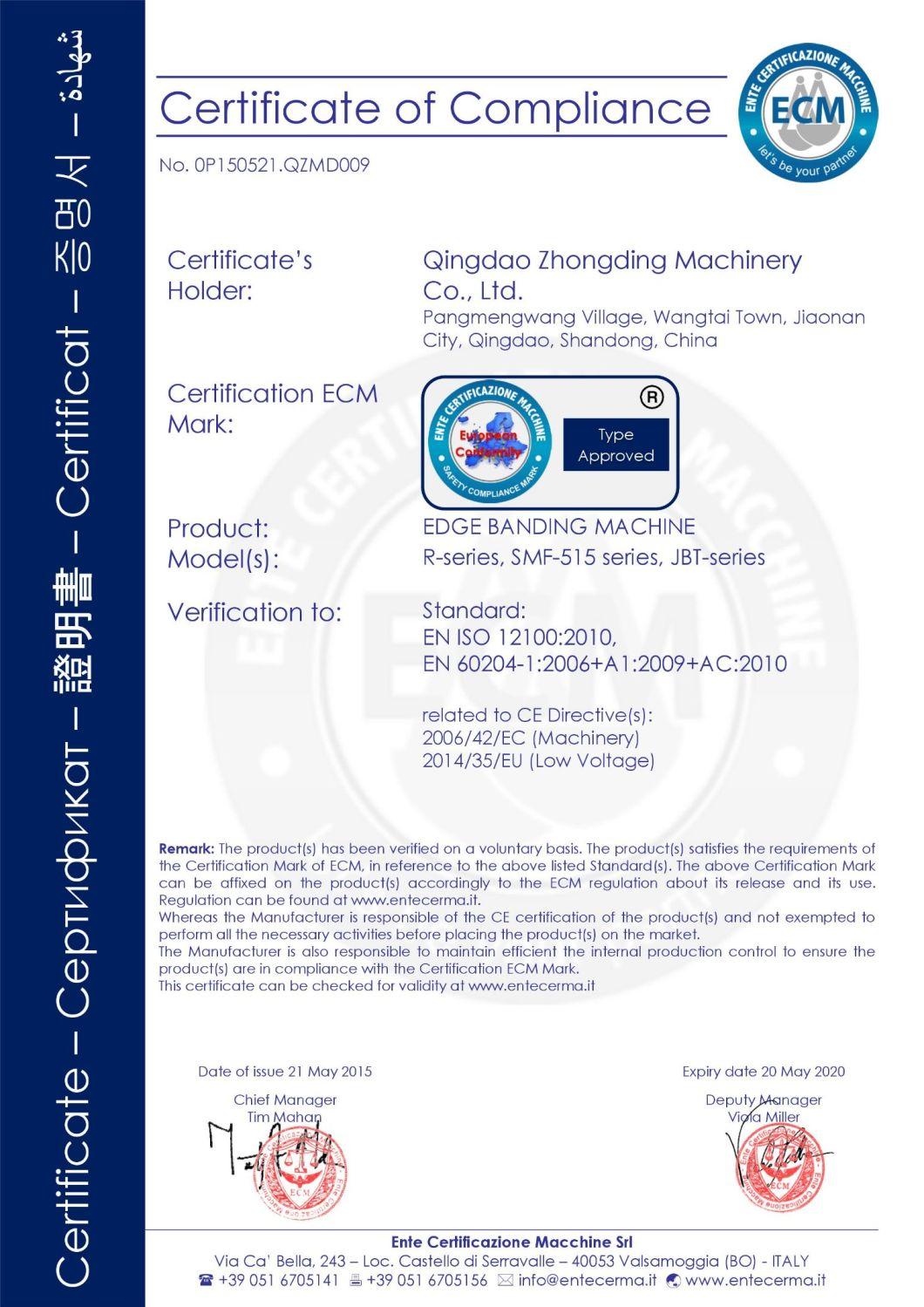

Certificate:




Our company:

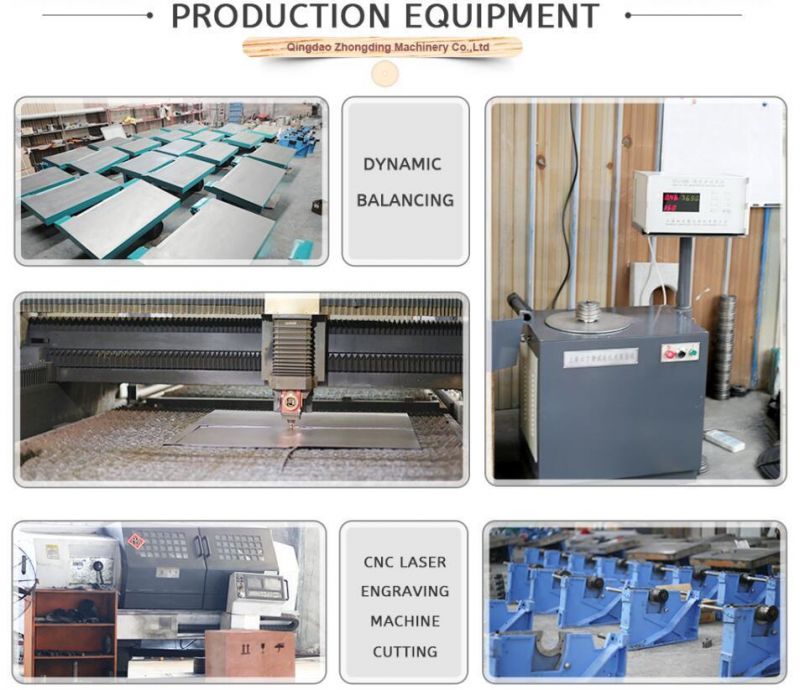

Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
