Energy Saving Home Use Kaf 200 Flat Die Biomass Wood Pellet Mill
Zhengzhou AG Machinery & Equipment Co., Ltd.- Type:Flat Die Platen Wheel
- Voltage:380V
- Automatic Grade:Semiautomatic
- Controlling Mode:Artificial
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:KAF200, KAF250, KAF300, KAF350, KAF450
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Multi Color
- Product Name:Flat Die Wood Pellet Machine
- Raw Material:Wood Sawdust
- Power Source:Electric or Diesel
- Material:Carbon Steel
- Machine Type:Flat Die
- Technical Service:Available
- Power:15 Kw
- Capacity:200-250 Kg,H
- Dimension:1200*550*1050 mm
- Weight:550 Kg
- Transport Package:Wooden Case
- Specification:1* 0.45* 0.8 m
- Trademark:AG
- Origin:China
- Production Capacity:10 Sets Per Month
Description
Basic Info.
Model NO. KAF200, KAF250, KAF300, KAF350, KAF450 Warranty 1 Year Customized Customized Condition New Color Multi Color Product Name Flat Die Wood Pellet Machine Raw Material Wood Sawdust Power Source Electric or Diesel Material Carbon Steel Machine Type Flat Die Technical Service Available Power 15 Kw Capacity 200-250 Kg/H Dimension 1200*550*1050 mm Weight 550 Kg Transport Package Wooden Case Specification 1* 0.45* 0.8 m Trademark AG Origin China Production Capacity 10 Sets Per MonthProduct Description

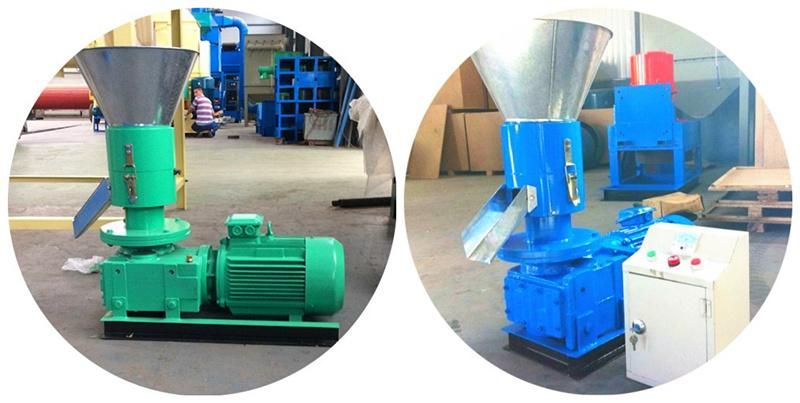

Energy Saving Home Use KAF200 Flat Die Biomass Wood Pellet MillIntroduction of flat die wood pellet mill:
1.Flat die pellet mills and its working principleFlat die pellet mills use a flat die with slots. The powder is introduced to the top of the die and as the die rotates a roller presses the powder through the holes in the die. A cutter on the other side of the die cuts the exposed pellet free from the die.

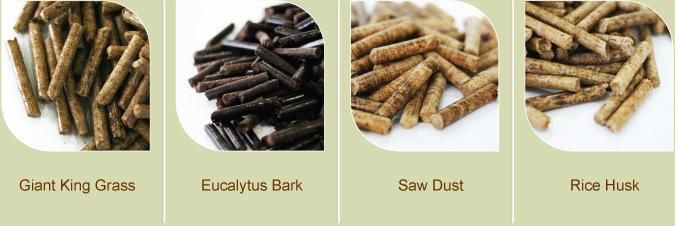

2. Raw Material Scope of Biomass Pellet mills
As per the classification of raw material, there are two main kinds of raw material used, , Agro wastes and Wood wastes such as rice husk, corn cobs, maize stalks, peanut shells, sunflower seed shells, coconut shuck, straw stalks; Wood logs, timber, lumber, tree branches and twigs, tree trunks, wood chips, sawdust, saw shavings, wood powder and shrubs and etc.
Advantages of our biomass wood pellet mill
1). Biomass Pellet is a new-style energy which is renewable, environmental protection, it is also clean and low cost.
2). Pellet (biomass briquette, biomass pellet, wood pellet) is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source, instead of coal in boiler burning, avoiding the pollution of burning coal, also being used as industrial fuel.
3). Biofuel can instead of coal for biomass power generation.

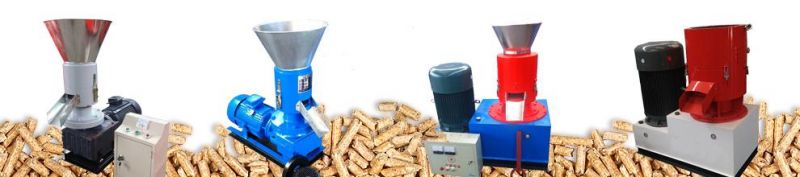

Home Use Flat Die Wood Pellet Mill KAF200, KAF 250, KAF 300, KAF 350, KAF 400 and KAF 450,Flat Die Biomass Wood Pellet Mill for Sale

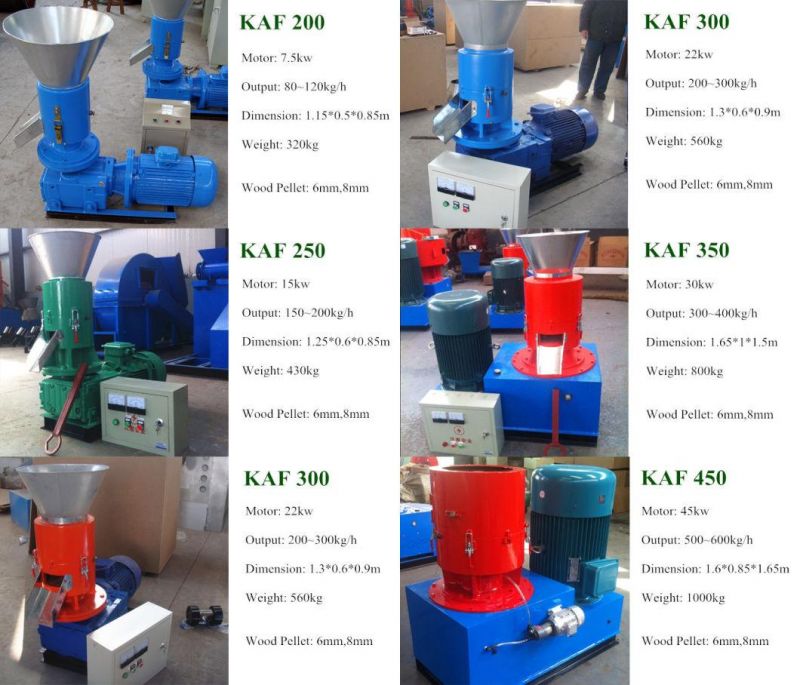

Specification:
Model | Power | Capacity | Dimension | Weight |
KAF 200 | 7.5 kw | 100-120 kg/h | 1000*450*850 mm | 350 kg |
KAF 250 | 15 kw | 200-250 kg/h | 1200*550*1050 mm | 550 kg |
KAF 300 | 22 kw | 250-300 kg/h | 1250*600*1100 mm | 750 kg |
KAF 350 | 30 kw | 350-400 kg/h | 1650*700*1300 mm | 1000 kg |
KAF 450 | 45 kw | 450-500 kg/h | 1300*700*1500 mm | 1450 kg |

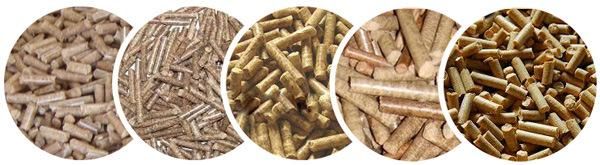

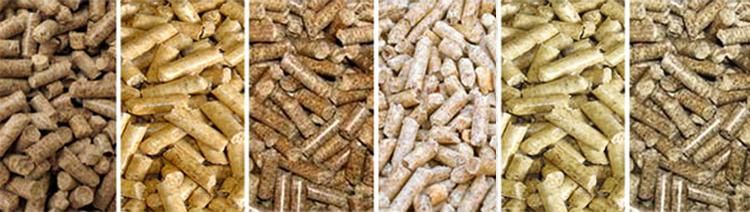

Finished Product:
FAQ of Wood Pellet Machine
1. What are biomass pellets and What's the Characteristics?
Pellets are made from fine dry biomass which was run through a pellet machine and formed into small compressed pellets of different sizes. Pellets can be used as animal feed, animal bedding or as bio fuel.
2. What is the raw material for making fuel pellets?
Wood Pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc. The raw material is renewable and sustainable. They are available locally, so the cost is affordable and predictable.
3. What are pellets used for?
Biomass pellets are used mainly for heating, while feed pellets are used for animal feeding.
4. What size of pellets does this machine produce?
General size: 6mm, 8mm, 10mm, and 12mm; the length and diameter of the pellets can be adjusted according to you need.
5. What about the delivery?
Normally by sea transportation. We also can provide air transportation if you need
6. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others, including flat die, rollers and bearing.
