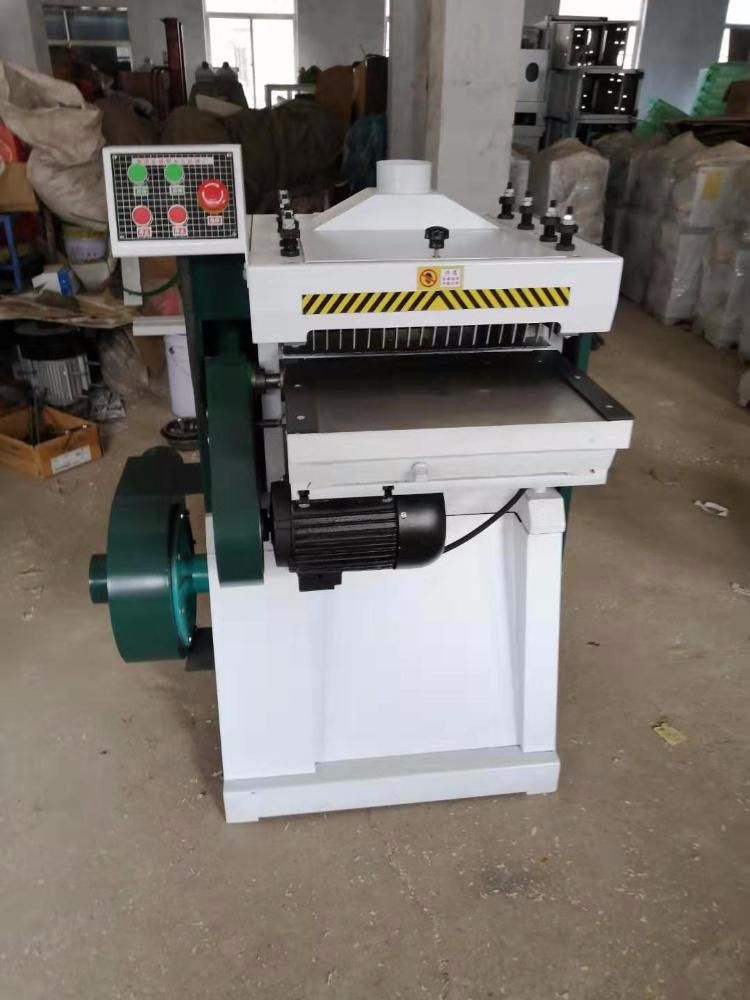

Woodworking Machinery Heavy Duty Thickness Planer

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Single-sided Pressure Planer
  • Working Depth：＜100mm
  • Working Width：500-700mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：5-10Kw

Base Info

  • Model NO.：MB106H
  • Cutter Shaft：3
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Transport Package：Plywood Case
  • Specification：760*1060*1270mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659200
  • Production Capacity：2 Sets,Week

Description

ModelMB104HMB105HMB106HVoltage/power380v/4kw380v/5.5kw380v/7.5kwMax. planing width400mm500mm630mmPlaning thickness8-190mm8-190mm8-190mmPlaning length>250mm>250mm>250mmMax. planing depth6mm8mm8mmSpindle speed6000rpm6000rpm6000rpmFeed speed6;8m/min6;8m/min6;8m/minOverall dimension760*830*1240mm760*930*1270mm760*1060*1270mmWeight480kg550kg600kg

1000mm, 1300mm width are also available.
Woodworking Machinery Heavy Duty Thickness Planer

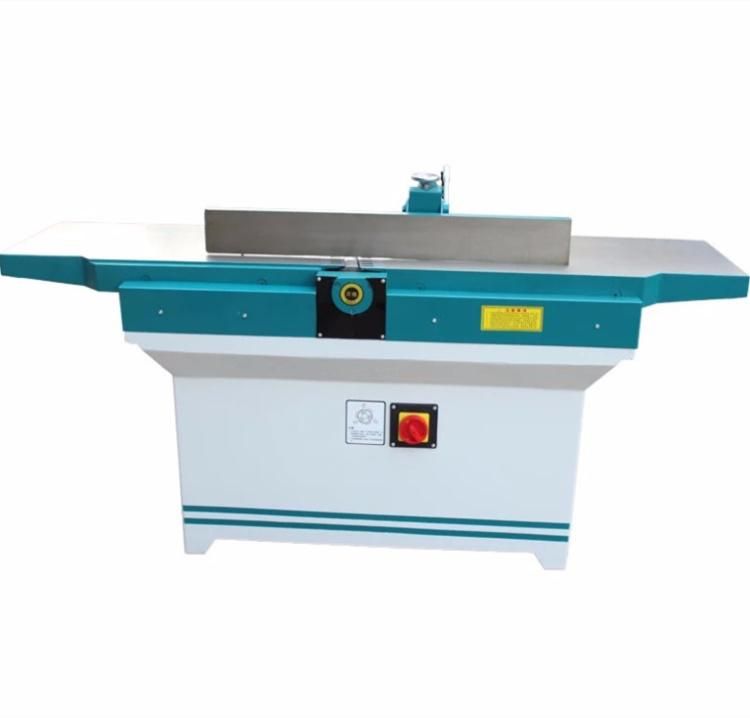

Surface planer:

Woodworking Machinery Heavy Duty Thickness Planer

Double sided planer:
Woodworking Machinery Heavy Duty Thickness Planer

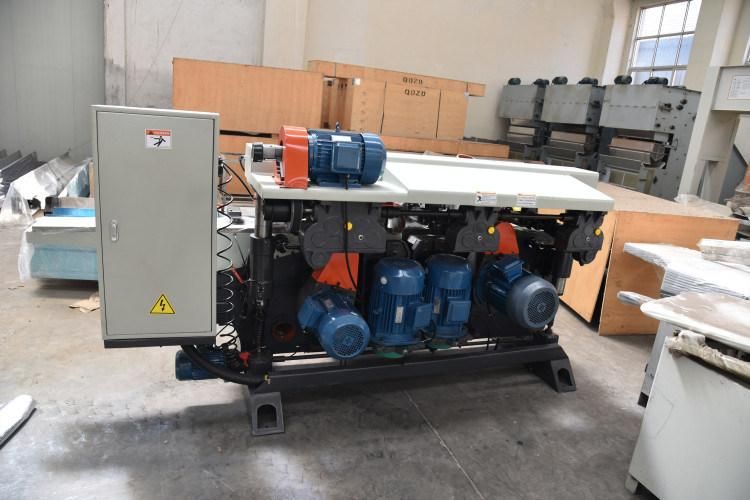

Four sided planer:
Woodworking Machinery Heavy Duty Thickness Planer

For more details, pls feel free to contact us.
