Wood CNC Router Machine (Rj1325)
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Type:Engraving Router
- Spindle Layout:Horizontal
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE
Base Info
- Model NO.:RJ1325
- Condition:New
- Maximum Speed:X Y Axes 60m,Min
- Tool Storage:8 Tools
- Transport Package:Wooden Case
- Specification:1300x2500mm
- Trademark:Ruijie
- Origin:China
- HS Code:8401200000
- Production Capacity:500PCS,Year
Description
Basic Info.
Model NO. RJ1325 Condition New Maximum Speed X Y Axes 60m/Min Tool Storage 8 Tools Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 8401200000 Production Capacity 500PCS/YearProduct Description
RJ1325 CNC RouterFeatures
1. Welded structure by thick profiled steel, stabilized under high temperature, ensures minimmum distortion, excellent rigidity and powerful strength.
2. Double motors and drivers of Y axis ensure steady movement.
3. Rack gear transmission ensures fast speed and high accuracy.
4. Imported linear square guide rail ensures high accuracy and maximum work load-bearing.
5. Optimized mechanical and electrical desigh with well-selected brand parts minimizes breakdpwn rate.
6. High power spindle, working powerful with low noise, guarantees long time mass processing.
7. Function of continuous working at stop point by power failure.
After-Sale Service
1) The machine warranty is 1 year;
2) 24 hours technical support by email or calling;
3) Friendly English version manual and operation video CD disc.
4) Samples for free
5) CE/ISO certificate
Working travel | X axis 1300 mm Y axis 2500 mm Z axis 230 mm |
Table size | 1300 mm*2500 mm |
Maximum speed | X Y axes 60m/min |
Spindle | Voltage: AC380v Frequency: 400Hz |
Italy HSD | Speed: 24000r/min Power: 8kw |
Pressure | Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa |
Pressure protection | No less than 0.7 |
Dust collecting power | 3.0kw |
Vacuum power | 5.0kw (phenol aldehyde laminated cloth board) |
Total power | 23.0kw |
Mechanism size | Area: 1.8m*3.3m Height: 1.5m Weight: 850kg |
Japanese servo motor | Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min. |
Tool storage | 8 tools |
Diameter of cutter head | 3.175mm, 6mm, 12.7mm. |
Cubage | 18.0 CBM |
Working travel | X axis 1300 mm Y axis 2500 mm Z axis 230 mm |
Table size | 1300 mm*2500 mm |
Maximum speed | X Y axes 60m/min |
Spindle | Voltage: AC380v Frequency: 400Hz |
Italy HSD | Speed: 24000r/min Power: 8kw |
Pressure | Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa |
Pressure protection | No less than 0.7 |
Dust collecting power | 3.0kw |
Vacuum power | 5.0kw (phenol aldehyde laminated cloth board) |
Total power | 23.0kw |
Mechanism size | Area: 1.8m*3.3m Height: 1.5m Weight: 850kg |
Japanese servo motor | Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min. |
Tool storage | 8 tools |
Diameter of cutter head | 3.175mm, 6mm, 12.7mm. |
Cubage | 18.0 CBM |

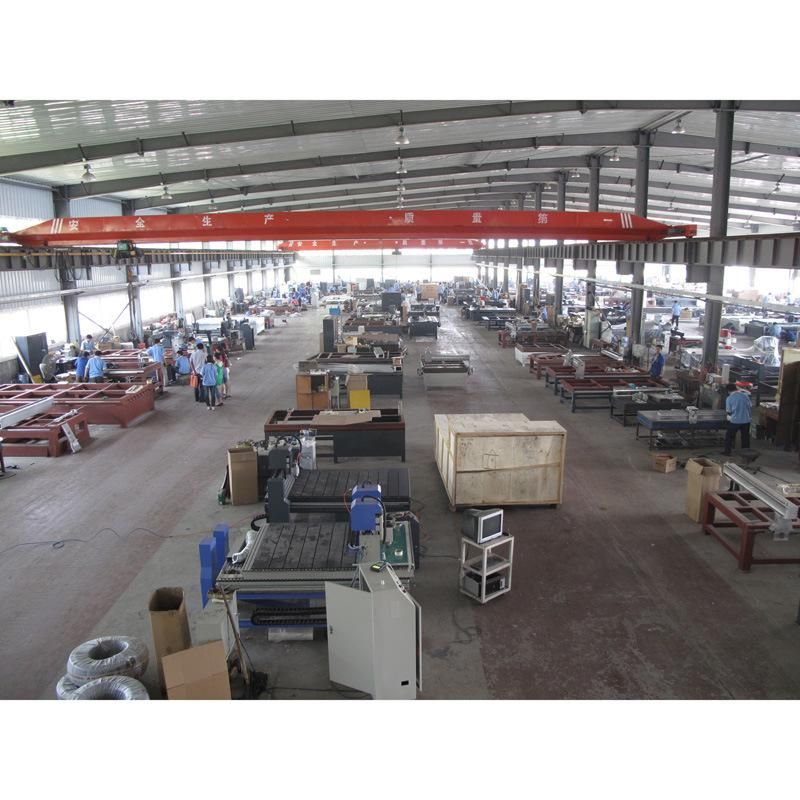

Factory Show
