• Model NO.：GJH 6090-1
• Customized：Customized
• Condition：New
• Color：Customized
• Application：Wood, MDF, Arylic
• Guide Rail：Taiwan Trv
• Screw：Tbi 2510
• Running Mode：Stepper
• Spindle：2.2kw, Water Cooling
• Control System：Nc Studio
• Transport Package：Plywood Case
• Specification：GJH 6090-1
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. GJH 6090-1 Customized Customized Condition New Color Customized Application Wood, MDF, Arylic Guide Rail Taiwan Trv Screw Tbi 2510 Running Mode Stepper Spindle 2.2kw, Water Cooling Control System Nc Studio Transport Package Plywood Case Specification GJH 6090-1 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per Month

Product Description

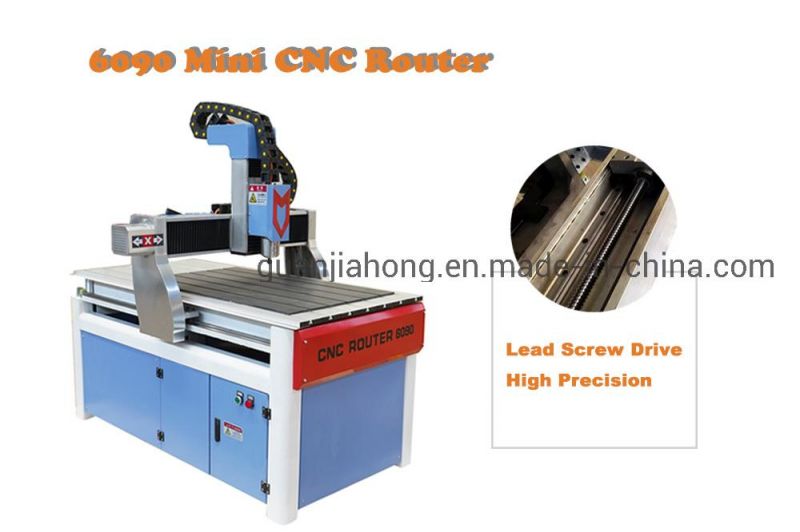

1. GJH 6090 engraving machine is designed for board, furniture, handicraft, etc. Four Workstage ATC functions bring us high-efficiency and high quality.
2. Cast iron bed surface, integral cast aluminium for crossbeam, ensure the machining accuracy.
3. Support breakpoint processing, easy to adjust.
4. All kinds of machine models can be customized according to the clients' requirements.










NO	Performance index	Performance index	Parameter
1	Working area	X area	600mm
		Y area	900mm
		Z area	120mm
2	Table size		600mm*900mm
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X axis	Original Taiwan Ball screw
		Y axis	Original Taiwan Ball screw
		Z axis	Original Taiwan Ball screw
5	Speed	Max traverse speed	30000mm/min
		Max engraving speed	8000mm/min
6	Spindle (water-cooling)	Spindle power	2.2KW
		Spindle speed	0_24000r/min
7	Drive motor		450A Stepper Motor and DMA 860 Driver
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC Studio
