• Model NO.：MK361A
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Working Experience：Twenty Years′ Experience
• Net Weight：48-51 Kg
• Main Shaft Speed of Milling Flutes：2800 Rpm
• Type：Wooden Mold Router
• Spindle Layout：Horizontal
• Spindle Number：Single-Spindle
• Feed Mode：Manual
• Controlling Mode：Artificial
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：495*305*220mm
• Trademark：xinlihui
• Origin：Qingdao
• HS Code：8465990000
• Production Capacity：100,Week

Basic Info.

Model NO. MK361A After-Sales Service Provided Engineers Available to Service Machinery Overseas Working Experience Twenty Years′ Experience Net Weight 48-51 Kg Main Shaft Speed of Milling Flutes 2800 Rpm Type Wooden Mold Router Spindle Layout Horizontal Spindle Number Single-Spindle Feed Mode Manual Controlling Mode Artificial Certification CE, ISO Customized Customized Condition New Color Customized Transport Package Standard Package, Be Made According Cutomer Need Specification 495*305*220mm Trademark xinlihui Origin Qingdao HS Code 8465990000 Production Capacity 100/Week

Product Description

MK361A vertical single-axis grooving machine square hole

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

1, Product Show:

2, Specification:

Motor power Rating	750W Output 550W
Voltage	220V
Motor speed	2840 rpm
Open the knives 2	1/2 inch         3/8 inch
Workbench size	220*160MM
Maximum opening depth	128MM
Drill chuck	Φ1-Φ13
A box size	495*315*220MM
B box size	445 * 315 * 220MM
Machine weight	45KG

3, Use:

The single-axis vertical woodworking grooving machine is also called the square chisel grooving machine, commonly known as the eye-catching machine. It is mainly used for processing square or rectangular gutters on the surface of parts or components such as squares and wooden frames. The main feature is that the cutting tool adopts a hollow square chisel with a drill bit inside. It is a special machine tool for cutting the square L or long raft at the joint of wooden parts. It is an ideal tool for the wood processing industry and individual households to carry out reclamation.
Second, the characteristics:

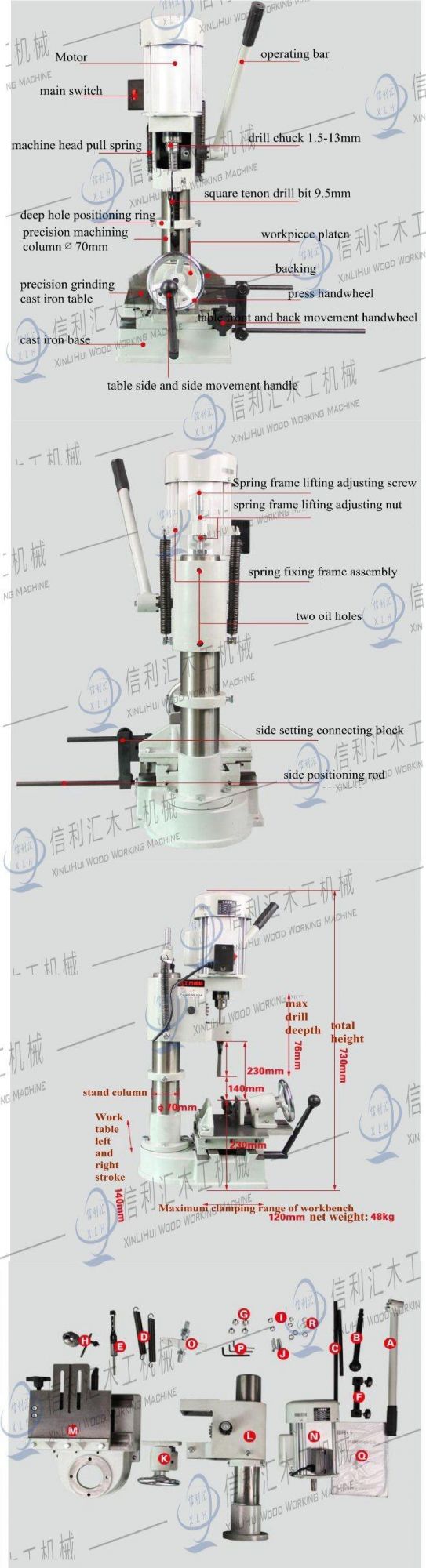

1. This woodworking machine is mainly composed of main body, spring frame lifting adjustment, vertical adjustment of column sleeve, head tension spring and deep drilling ring. It is compact and light, flexible and reliable, and stable in operation.
2, the motor uses 220 volts, easy to use.

3. The machine comes standard with a square drill bit. In addition to the rotary motion, the drill bit and the hollow square shaft that does not rotate are also reciprocated. The hollow square chisel cuts the round hole drilled by the drill into a square bore. When machining a rectangular groove, in addition to the reciprocating movement of the drill bit and the square chisel, the workpiece must also be moved laterally left and right.

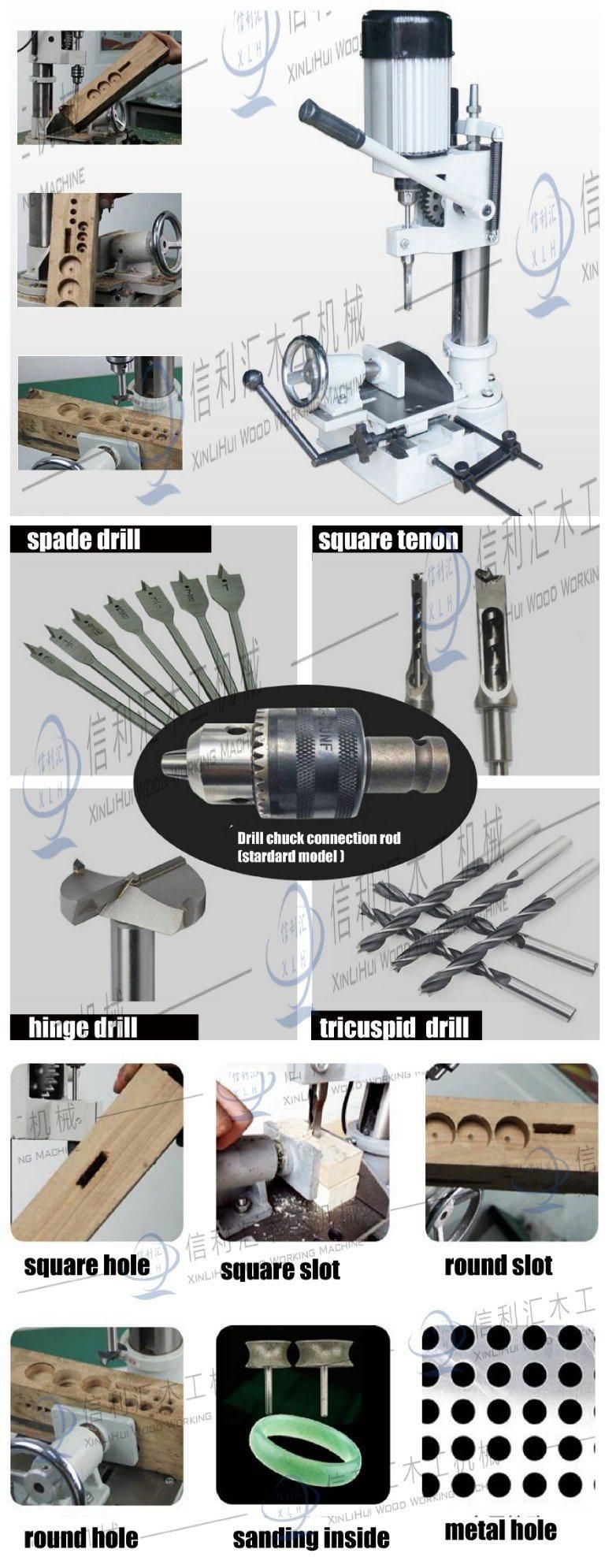

4 Detail Show:

5 Sample show

6, Features
1 Good quality;
2 Competitive price;
3 Customer's design is welcome.
