• Model NO.：BSQ1814H
• Trademark：METRO
• Origin：China
• HS Code：8465960000
• Production Capacity：100set,Month

Basic Info.

Model NO. BSQ1814H Trademark METRO Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

Product Description

1.Product Description:1.This machine is used to peel log without skin to core veneer and continue peeling log core after spindle peeling. It is very popular for plywood industry.
2. CNC Spindle less Veneer Peeling Lathe, with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.
3. Servo motor, Precision hardened gear reducer.
4. Japanese Mitsubishi CNC system .
5. We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand.

2.Technical Parameters:

ITEM	Parameters	Remark
Max working length	1400mm	Roller length 1500mm
Working diameter range	22-500mm	Cross roller can be 20mm
Working speed range	20-82m/min	Frequency control
Veneer thickness	0.5-7.0mm	Double side smooth
Peeling knife size	1500X180X16mm	SENGANG(Japan tech)
Clipping knife size	1400X100X12mm	SENGANG(Japan tech)
Double rollers motor power	7.5KWX2 SETS
Single roller motor power	5.5KWX2 SETS
Screw feed motor power	7.5KW	Servo motor(LEAD)
Rotary clipper motor power	1.5KW	Servo motor(LEAD)
Rubber belt conveyor motor	1.5KW
Total motor power	36.5KW
Inverter power	39.7KW(30+7.5+2.2)	GTAKE BRAND
Double roller speed reducer	R87 harden helical X 2SETS
Single roller speed reducer	R87 harden helical X 2SETS
Screw feed speed reducer	R87 harden helical X 1SET
Rubber roller speed reducer	R87 harden helical X 1SET
Machine overall dimension	4900X1900X1550mm
Machine weight	6200KGS

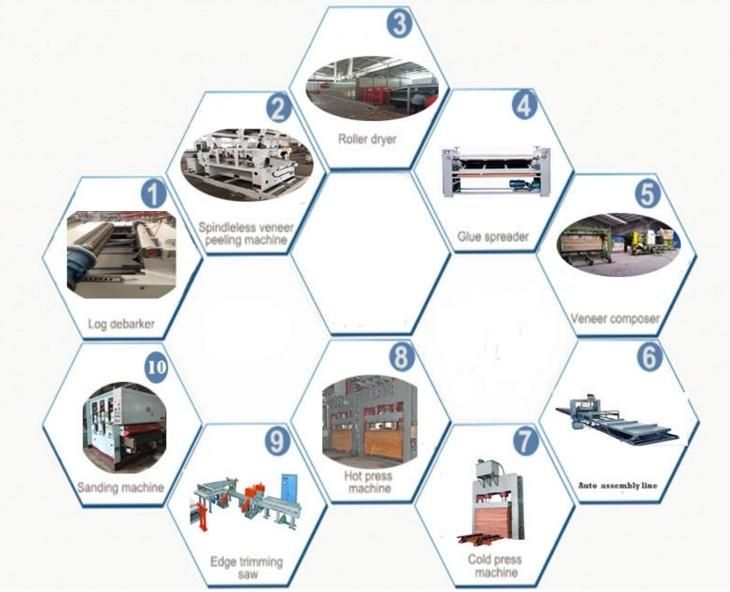

Product List:

Certifications:



Usage:
Used for poplar core veneer peelig and cutting
Veneer thickness is adjustable, double sides smooth
Peeling speed is adjustable
Service

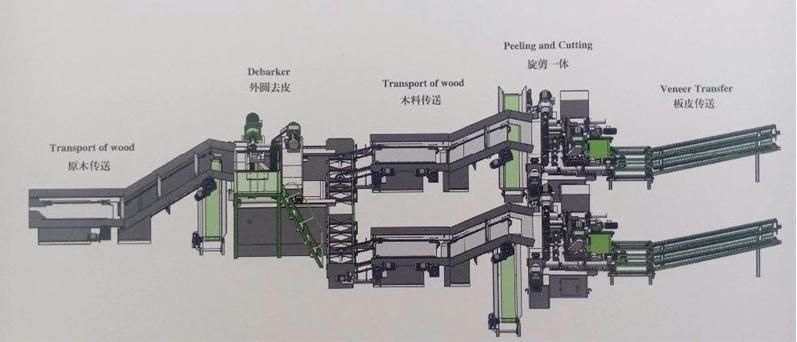

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.
