Wood Pneumatic Three Heads CNC Engraving&Cutting Router Machine
Jinan Sea Eagle Cnc Machinery Co., Ltd.- After-sales Service:Yes
- Warranty:24 Months
- Condition:New
- Certification:ISO, CE
- CNC or Not:CNC
- Voltage:380V
Base Info
- Model NO.:1325
- Type:Engraving Router
- Spindle Number:2-4
- Customized:Customized
- Color:Customized
- Feed Mode:Mechanical
- Control System:Syntec 6MB Control System
- Inverter:5.5kw E Type Taiwan Delta Inverter
- Linear Rail:Taiwan PMI 25# Linear Guide
- Rotary Device:Diameters: 200mm
- Dimension(L*W*H):3050*1940*2200mm
- Transport Package:Plywood Box
- Specification:3050*1940*2200mm
- Trademark:sea eagle
- Origin:China
- HS Code:84659900
- Production Capacity:2000sets,Year
Description
Working area

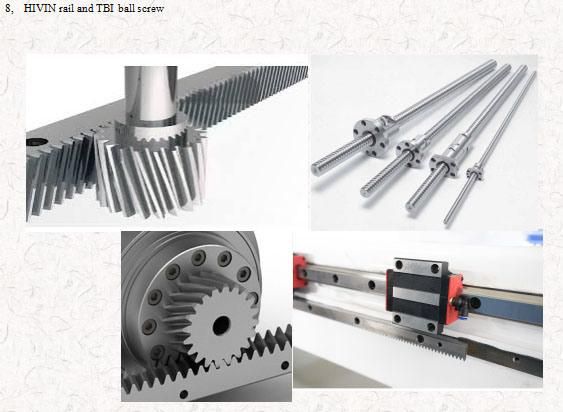

Working areaX 1,300mm Y 2,500mm Z 210 mm Transmission system X Hiwin square rail,-No.25, Helical - Rack & Pinion Y Hiwin square rail,-No.25, Helical - Rack & Pinion Z ball screw ,Hiwin square rail. Spindle Power 6 kw HQD Spindle , 4 sets; or 4.5kw ,2 sets, 6kw 2 sets Inverter Yaskawa or Fulling Rotating Speed 24000rpm Cooling Type water- cooling or air-cooling Drive systems X,Y,Z Yaskawa or leadshine Precision <0.01mm Positioning accuracy <0.01mm idling speed 0~24000mm/min Max speed 90m/min Working speed 40m/min

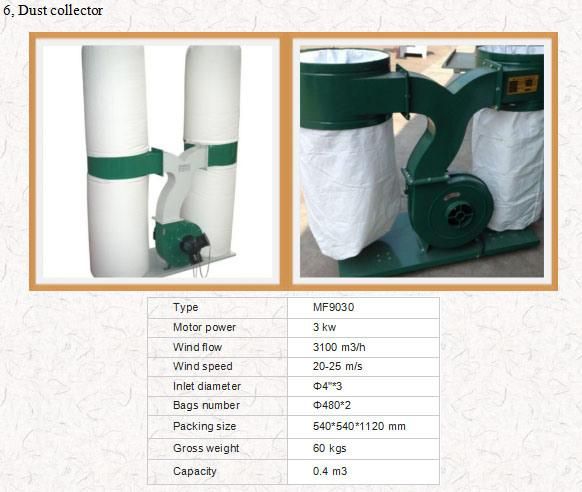

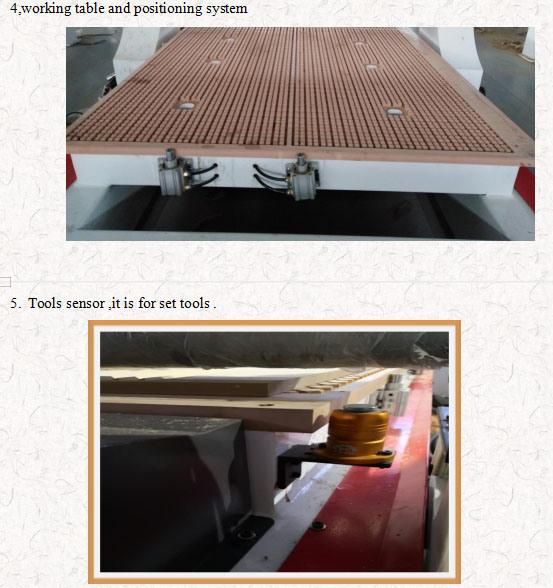

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel, table vacuum adsorption table. Control System LNC control system, or SYNTEC system, mach3 Working Voltage AC380V±30V, 50HZ Command Code G Code, *.mmg, *.plt, *.eng Tool sensor system Available Packing Plywood case Net Weight 3600KG Packing Size 4000*1970*1930(mm) Gross Weight 3000KG dust collector 4.0 kw 380V Reducer system Timing Pulley
