• Model NO.：ZD1325AT
• Control System：Taiwan Syntec
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Motors：Japanese Yaskawa Servo Motor and Drivers
• Changing Cutters Way：Automatically Changing Cutters
• Table：Vacuum Table
• Vacuum Adsorption Table：5.5kw Vacuum Pump
• Transport Package：Wooden Box
• Specification：1300*2500*200 mm
• Trademark：ZHONGDING
• Origin：China
• HS Code：84659900
• Production Capacity：2 Sets,Week

FunctionDrilling, Grooving, Cutting, Engraving, Milling and so onXYZ working stroke (Max. work piece size)1300*2500*200 mmMax. unloading speed60000 mm/minMax. working speed23000 mm/minCompatible softwareArtcam,type3,CAD,CDR,Jingdiao,Wentai, etc.CommandG code, u00, mmg, pltControl systemSYNTECDrive motorSYNTEC servo motorSoftware operating environmentWindows98/2000/XP/WIN7 32 Main spindle9kw HSD, air cooling

Machine detail--------










FAQ--------

-Delicery time?
-60 days after deposit or as negotiation.
-Warranty period?
-1 year.
-Payment term?
-30% as deposit and balance before shipment.
-MOQ?
-1 set.
-Votage?
-As your request.

Machine application--------

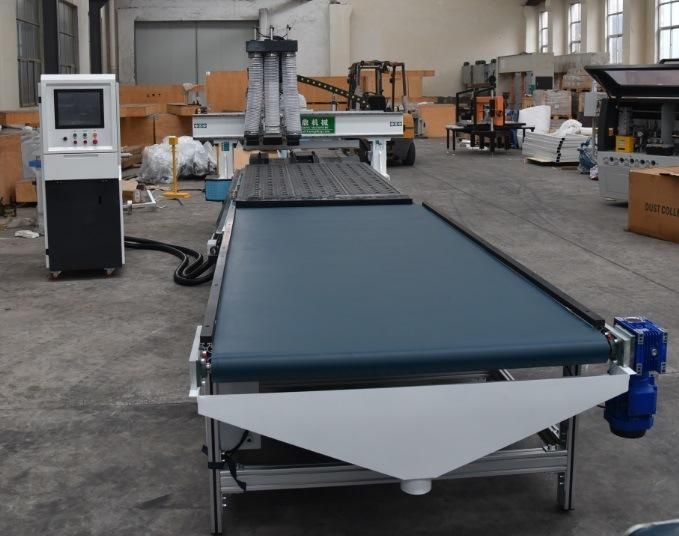

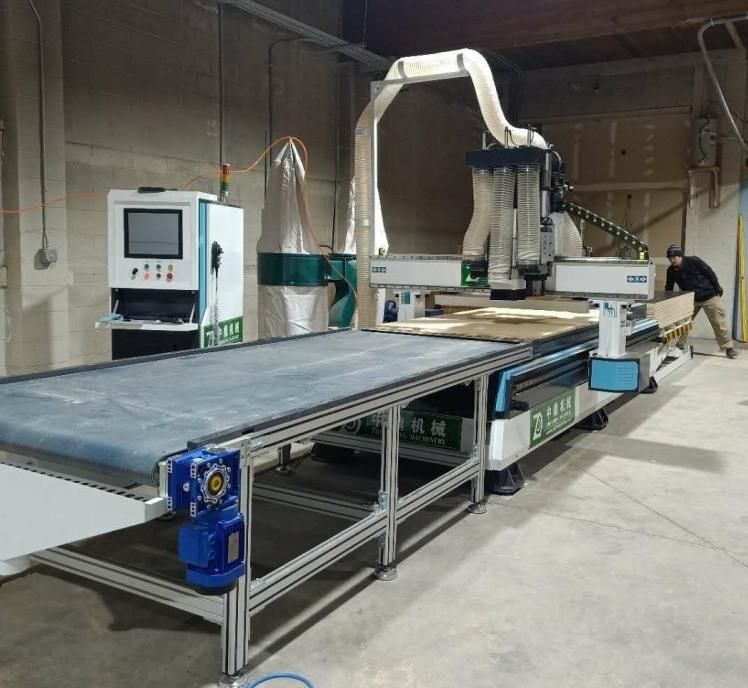

This automatic loading and unloading CNC router has two spindles and one drilling package. It is professional for cabinets, doors, kitchen doors, computer dest, office furniture, ets many kinds of board furniture. For auto loading and unloading, grooving, milling, cutting, drilling, engraving, etc line processing.

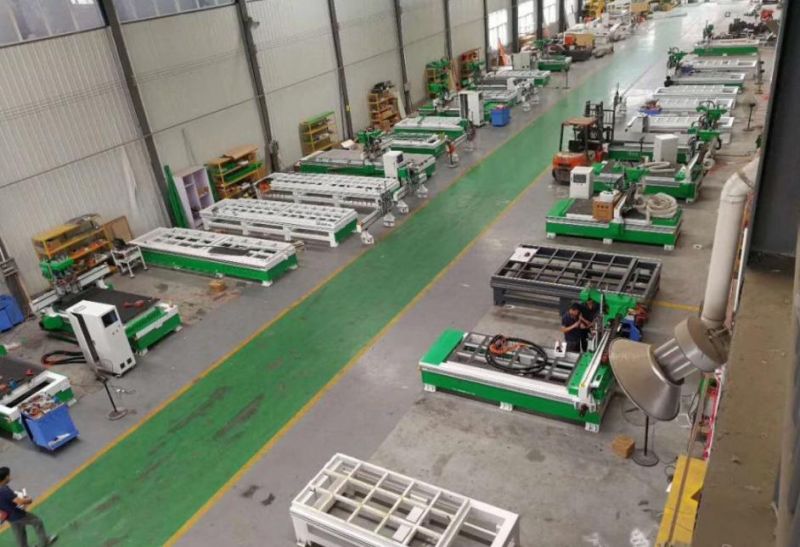

Factory information--------



Packing & shipping--------
