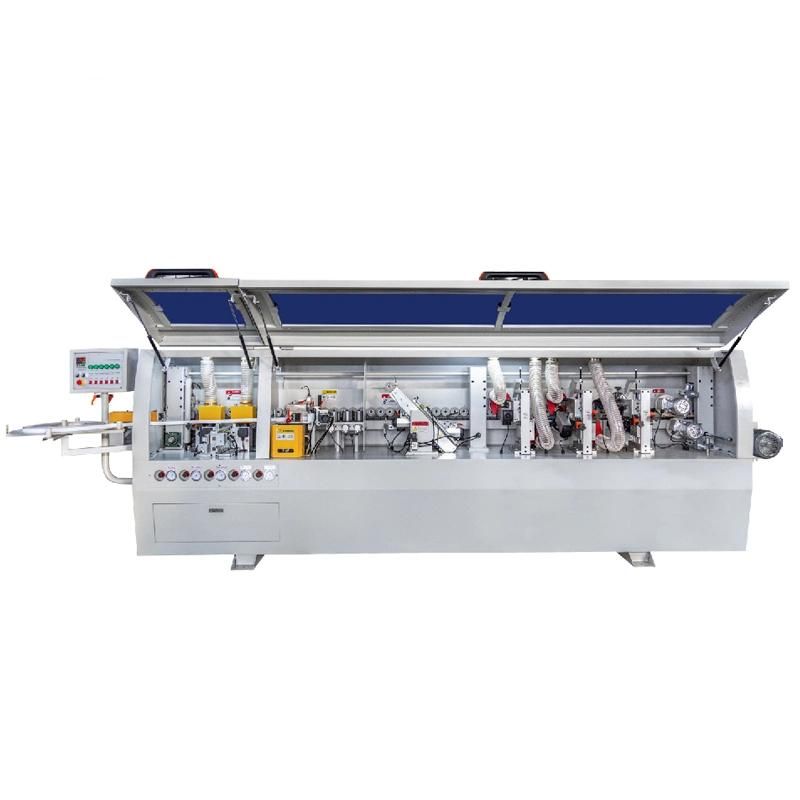

Zd-700 Edge Trimming Machine Wood/PVC/MDF Edge Banding Machine
Qingdao Zhongding Machinery Co., Ltd.- Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
- Type：Straight Line
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：20m,min
- Certification：CE, ISO
Base Info
- Panel Thinkness：10-60mm
- Min.length panel：160mm
- Min.width panel：60mm
- Manufacturing Principles：Glue Tank Underneath
- Customized：Customized
- Banding Type Thickness：0.4-3mm
- Banding Type Width：12-65mm
- Heating Power：1.8kw
- Feeding Motor Power：3.7kw
- Air Pressure：0.8MPa
- Overall Dimension：3600*900*1500mm
- N.W：1300kgs
- Transport Package：Wood Case
- Specification：3CBM
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659900
- Production Capacity：200sets,1month
Description
Overview
Control Panel: Pre-milling:
Touch screen or button control panel ,easy to operate. Pre-milling equipment with double trimming blades works on the waved effect that is cause by precise panel saw.ZD500/ZD600P/ZD600R doesn't include this part,only ZD700 has this function.
Gluing:The gluing mechanism adopt a special struction to gelatinize the plates End Trimming: End reim mechanism through a precise guide track movement
and costing materials uniformaly.Ensure a more solid conglutination. adopt automatic tracking and high frequency motor fast cutting structure to
ensure the cutting surface smoothly.
Rough&Fine Trimming :
Fine trimming mechanism used for repairing the excess edge materials.
Adopt automatic tracking and high frequency motor fast cutting structure.
To ensure the trimming plates smoothly.
Scraping: Buffing:
Scraping unit for a perfect finishing of the applied edge. The buffing device adopts the board processed by cotton polishing wheel.By end
polishing to make a more smooth surface.
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate
Product Description
Detailed Photos
Control Panel: Pre-milling:Touch screen or button control panel ,easy to operate. Pre-milling equipment with double trimming blades works on the waved effect that is cause by precise panel saw.ZD500/ZD600P/ZD600R doesn't include this part,only ZD700 has this function.
Gluing:The gluing mechanism adopt a special struction to gelatinize the plates End Trimming: End reim mechanism through a precise guide track movement and costing materials uniformaly.Ensure a more solid conglutination. adopt automatic tracking and high frequency motor fast cutting structure to
ensure the cutting surface smoothly.
Rough&Fine Trimming : Fine trimming mechanism used for repairing the excess edge materials.
Adopt automatic tracking and high frequency motor fast cutting structure.
To ensure the trimming plates smoothly.
Scraping: Buffing:Scraping unit for a perfect finishing of the applied edge. The buffing device adopts the board processed by cotton polishing wheel.By end
polishing to make a more smooth surface.
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate
