• Model NO.：BXQ1814,50HK
• Main Motor：2X11kw China Motor
• Servo Motor Power：7kw Mitsubishi Japan
• Body：Fine Cast Steel Body
• Auotmatic Hydraulic Knife Clamping Syste：N,Normal Mechanical Change Knife
• Double Roller Drive：by Gear
• Transport Package：Standard Export Sea-Worthy Packing
• Specification：Weight: 5500KGS
• Trademark：Metro
• Origin：China
• HS Code：8465960000
• Production Capacity：100set,Month

Basic Info.

Model NO. BXQ1814/50HK Main Motor 2X11kw China Motor Servo Motor Power 7kw Mitsubishi Japan Body Fine Cast Steel Body Auotmatic Hydraulic Knife Clamping Syste N/Normal Mechanical Change Knife Double Roller Drive by Gear Transport Package Standard Export Sea-Worthy Packing Specification Weight: 5500KGS Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

4 FEET veneer peeling machine
1.Product Description:*  This machine is used to peel log without skin to core veneer and continue peeling log core after       spindle peeing. It is very popular for plywood industry.
*  CNC Spindle less Veneer Peeling Lathe, with hydraulic system for knife installation which makes         easy to change knife when need to grind and save time.
*  Servo motor, Precision hardened gear reducer
*  Japanese Mitsubishi CNC system .
*   We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand.

2.Technical Parameters:

ITEM	Parameters	Remark
Max working length	1400mm	Roller length 1500mm
Working diameter range	22-500mm	Cross roller can be 20mm
Working speed range	20-82m/min	Frequency control
Veneer thickness	0.5-7.0mm	Double side smooth
Peeling knife size	1500X180X16mm	SENGANG(Japan tech)
Clipping knife size	1400X100X12mm	SENGANG(Japan tech)
Double rollers motor power	7.5KWX2 SETS
Single roller motor power	5.5KWX2 SETS
Screw feed motor power	7.5KW	Servo motor(LEAD)
Rotary clipper motor power	1.5KW	Servo motor(LEAD)
Rubber belt conveyor motor	1.5KW
Total motor power	36.5KW
Inverter power	39.7KW(30+7.5+2.2)	GTAKE BRAND
Double roller speed reducer	R87 harden helical X 2SETS
Single roller speed reducer	R87 harden helical X 2SETS
Screw feed speed reducer	R87 harden helical X 1SET
Rubber roller speed reducer	R87 harden helical X 1SET
Machine overall dimension	4900X1900X1550mm
Machine weight	6200KGS

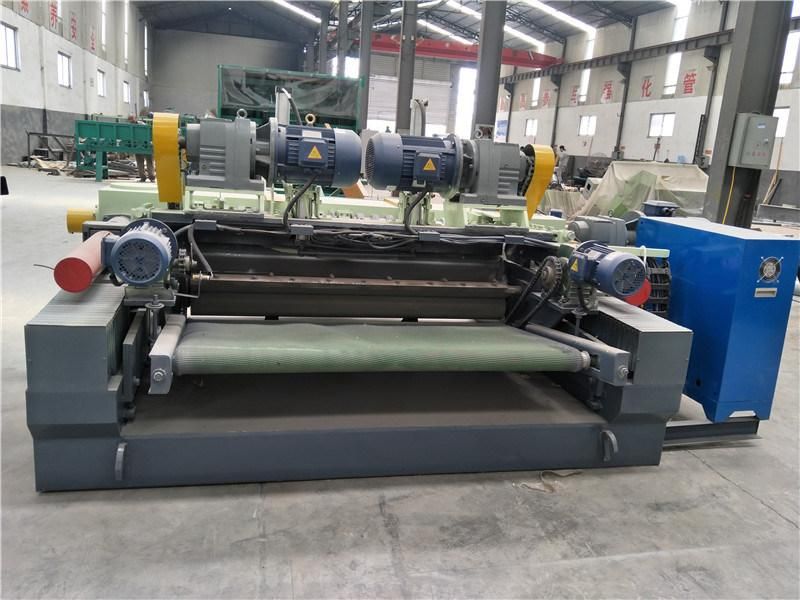

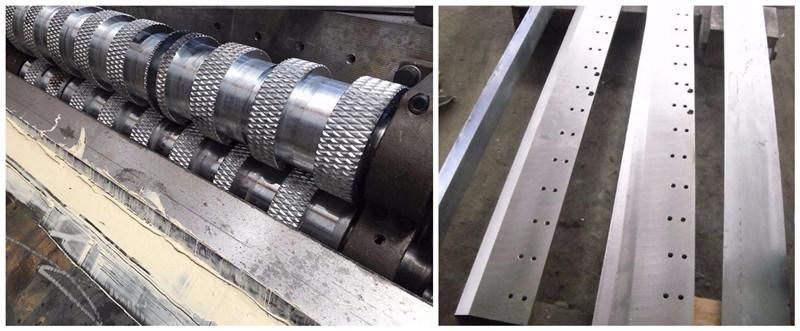

3.Machine Photos:







4.Packing and Delivery:


5.Customer Visit:



6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~  0086 187 5499 9716
