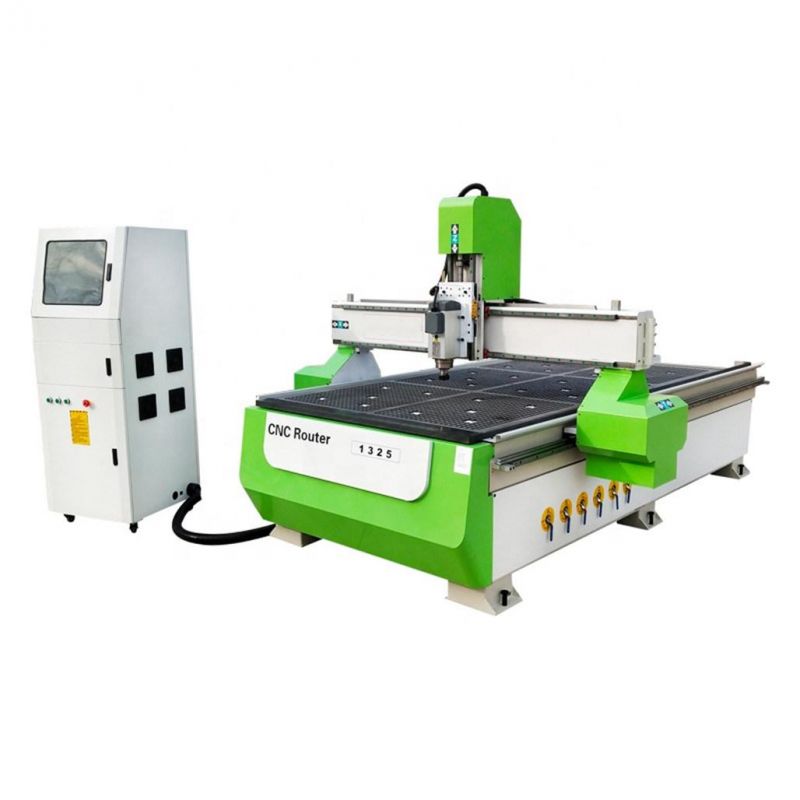

1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making

Shandong Guandiao CNC Equipment Co., Ltd.
  • Condition：New
  • Certification：CE, SGS
  • CNC or Not：CNC
  • Voltage：220V
  • Control System：Nc Studio , DSP(Optional)
  • Relative Humidity：30%-75%

Base Info

  • Model NO.：GD1325
  • Key Selling Points：Multifunctional
  • Travel (Y Axis)(mm)：2500mm
  • Positioning Accuracy：0.05mm
  • Power (Kw)：4.5kw
  • Color：Customized
  • Warranty：12 Months
  • Range of Spindle Speed：1000 - 24000
  • No. of Spindles：Single
  • Travel (X Axis)(mm)：1300mm
  • Spindle Motor Power：3.2kw
  • Running Temperature：0-45ºC
  • Packing Size：3.2*2*1.7m
  • Weight：1000kg
  • Transport Package：Wood Case
  • Specification：1300*2500*200
  • Trademark：Guandiao
  • Origin：Shangdong, China
  • HS Code：8465990000
  • Production Capacity：10000pieces,Year

Description

Basic Info.

Model NO. GD1325 Key Selling Points Multifunctional Travel (Y Axis)(mm) 2500mm Positioning Accuracy 0.05mm Power (Kw) 4.5kw Color Customized Warranty 12 Months Range of Spindle Speed 1000 - 24000 No. of Spindles Single Travel (X Axis)(mm) 1300mm Spindle Motor Power 3.2kw Running Temperature 0-45ºC Packing Size 3.2*2*1.7m Weight 1000kg Transport Package Wood Case Specification 1300*2500*200 Trademark Guandiao Origin Shangdong, China HS Code 8465990000 Production Capacity 10000pieces/Year

Product Description

 Product Description

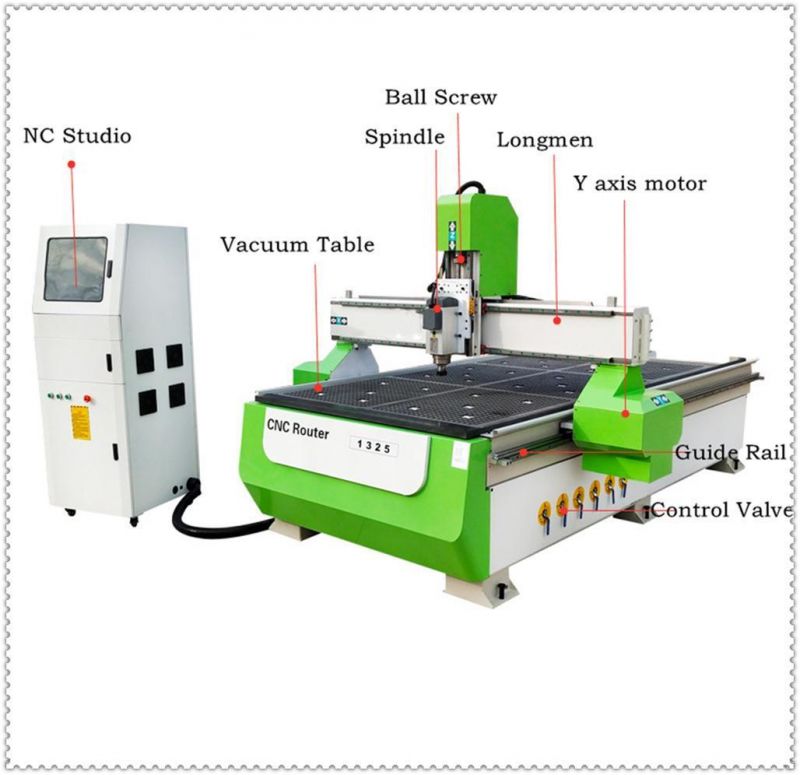

ModelGD-1325
Working Area1300*2500*200 mm

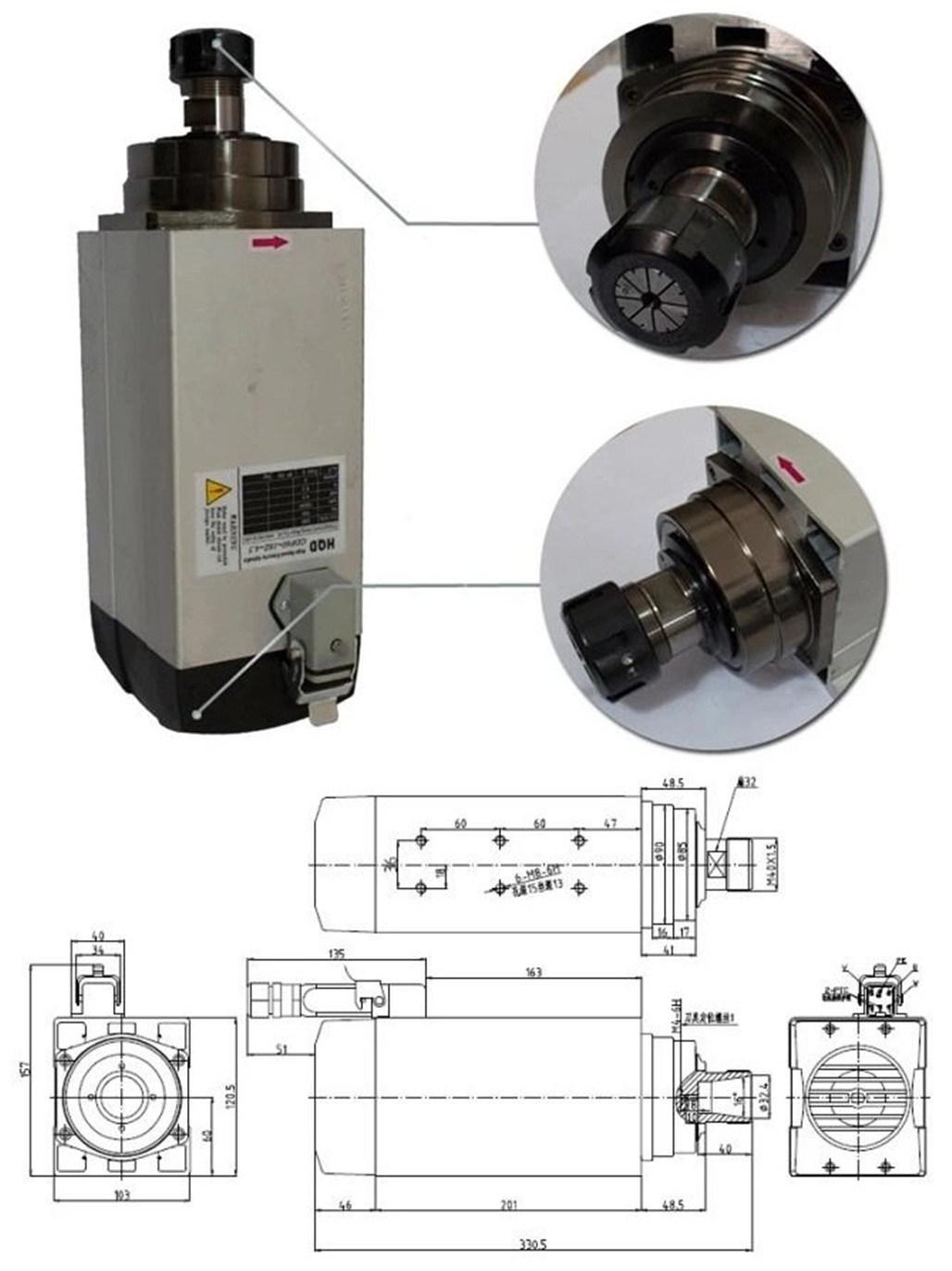

Spindle3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional)
TableVacuum Suction

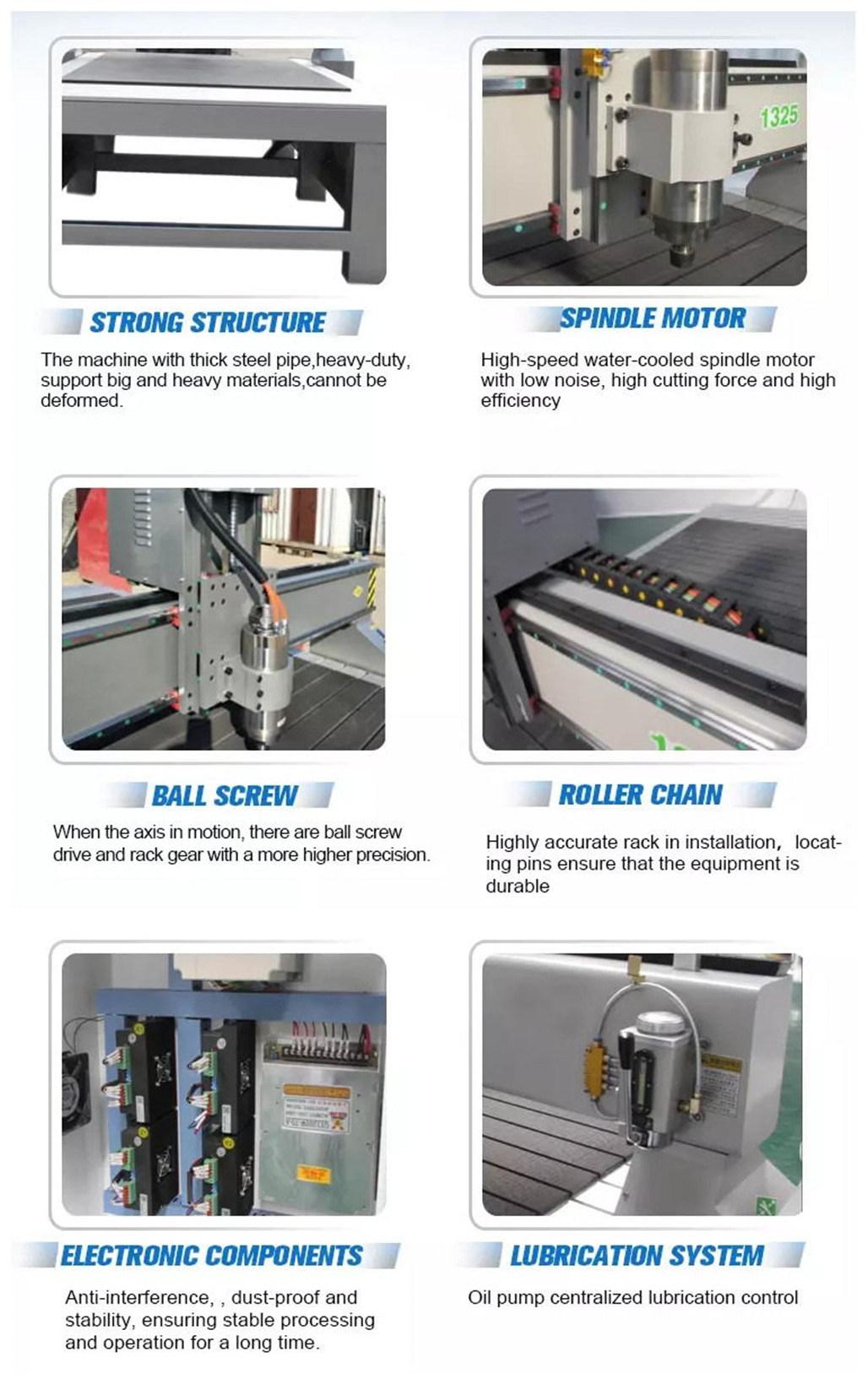

TransmissionRack and pinion for x.y, ball screw for z
GuidewayHIWIN square linear guideway
Resolution0.01 mm
Traveling speed35m/min
 Working Speed30 m/min
DriverChina stepping motors and leadshin driver
CodeG Code, HPGL Code
Power SupplyAC380V/50Hz
Control SystemNC Studio / DSP(optional)
SoftwareJD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software EnvironmentWindows98/2000/XP
Relative humidity30%-75%
Running Environment Temperature0-45ºC
PackingWooden Box
WeightNet weight:800 kg        Gross Weight:1000 kg

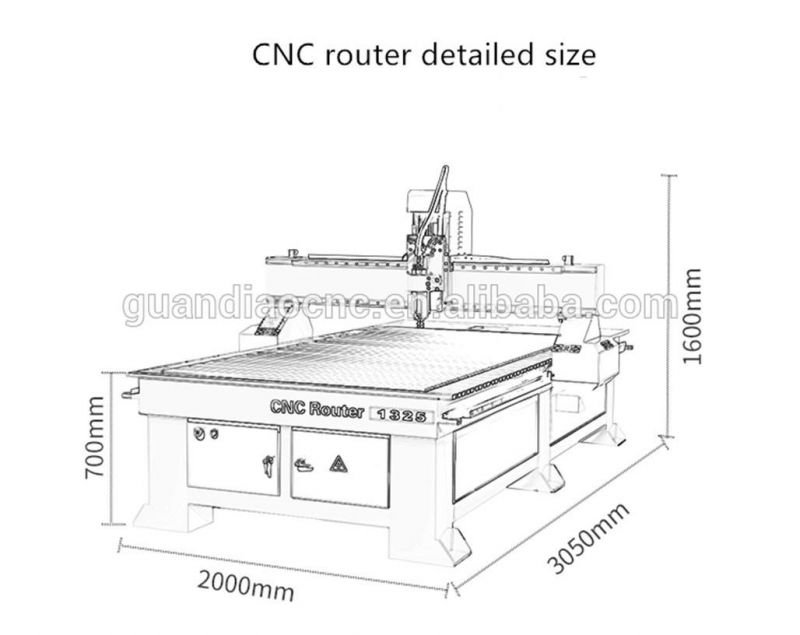

Packing size3.2*2*1.7m
Applicable Materialswood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,
aluminum composite panel, etc.
Stand accsssories5.5Kw air pump, USB line,
Tool box(Spanner,brush, etc).
cutting tools.
 Dust collector.
 Manual
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making

1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
 Show details
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
Application
Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure
statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold, stamping mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
Packing & Delivery
1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

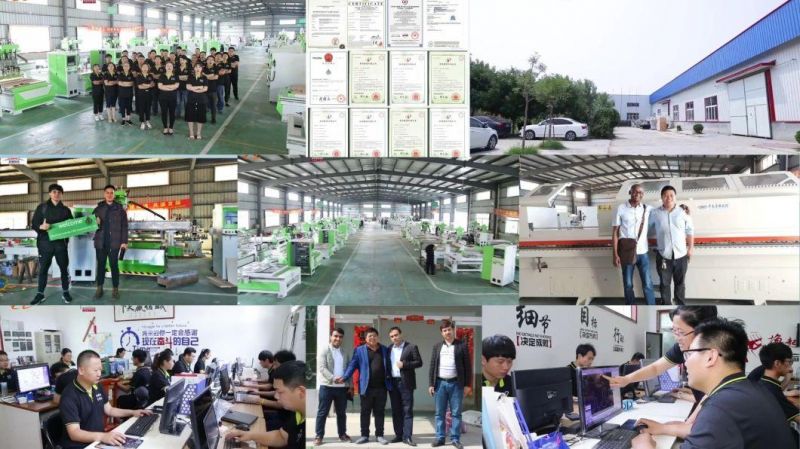

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.

1325 Atc CNC Wood Router Carving CNC Router Woodworking Machine for MDF Cutting Wooden Furniture Door Making
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.FAQ1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.Our Service1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
