• Model NO.：9FH
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Output：600-800kg,H
• Power：15kw Electric Motor
• Max Feeding Diameter：100 mm
• Opener Size：200*230 mm
• Machine Weight：550kg
• Sieve Size：3mm, 4mm,5mm,6mm,8mm
• Keyword 1：Wood Crushing Machine
• Keyword 2：Wood Crusher Machine
• Keyword 3：Wood Powder Crushing Machine
• Keyword 4：Wood Sawdust Crushing Machine
• Transport Package：Standard Package, Wooden Case
• Specification：1400*650*1100 mm
• Trademark：AGII
• Origin：China
• HS Code：8474209000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. 9FH Warranty 1 Year Customized Customized Condition New Color Multi Color Output 600-800kg/H Power 15kw Electric Motor Max Feeding Diameter 100 mm Opener Size 200*230 mm Machine Weight 550kg Sieve Size 3mm, 4mm,5mm,6mm,8mm Keyword 1 Wood Crushing Machine Keyword 2 Wood Crusher Machine Keyword 3 Wood Powder Crushing Machine Keyword 4 Wood Sawdust Crushing Machine Transport Package Standard Package, Wooden Case Specification 1400*650*1100 mm Trademark AGII Origin China HS Code 8474209000 Production Capacity 200 Sets Per Month

Product Description

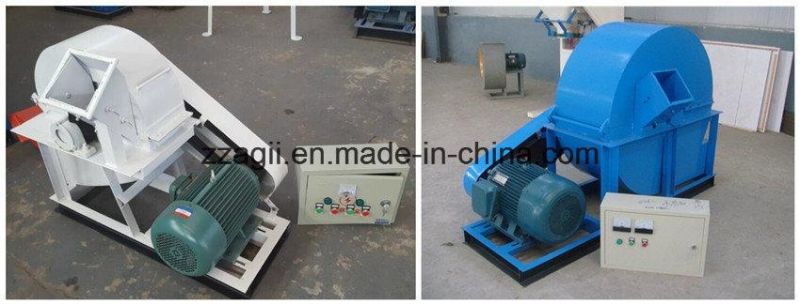

Forest Machinery Biomass Wood Crusher Machine for making sawdust



Introduction of wood crusher machine:

Wood crusher machine is a new type machine of producing sawdust which could make the wood, argo waste and tree branches into sawdust. It's necessary to use a wood crusher if your raw material is raw wood (tree branch, tree root and etc.)

9FH SERIES wood crushing machine can process raw wood with size less than 200mm (diameter) and moisture below 30%. After crushed, the output size can reach diameter 3-5mm. It also can cut bamboo, couch grass; corn stalks and broomcorn stalk and so on.

The wood chip crusher machine is made of cutting device, crushing device and air blower. The woods are cut into small pieces through the cutting device and sent into the second device to crush without drying them. The final sawdust will be sent to the gathering place by the air blow.

The machine only need one electric motor, with simple structure, working stable, low energy consumption, high output and low cost.

Parameters of wood grinder:

Model	Power	Output	Blade Qty	Dimension	Weight
9FH-400	7.5KW	300-500kg/h	4pcs	1200*550*750 mm	300Kg
9FH-600	15KW	600-800kg/h	4pcs	1400*650*1100 mm	520Kg
9FH-800	30KW	1000-1500kg/h	4pcs	1900*1000*1450 mm	950Kg
9FH-1000	45KW	1800-2000kg/h	6pcs	2100*1200*1550 mm	1300Kg

Features of Wood Crushing machine:

1.   Wood crusher can process grind material like wood log, bamboo, twigs, straw, stalk and wood chip, tree branch and forest waste and other biomass materials into sawdust.

2.   Final size of crushed material is less than 3-5mm, which is right size for pelletizing and briquette.

3.   Small investment, energy saving, high productivity, good economic benefits, convenient maintenance.

4.   Our wood crusher grinder can be driven by the electric motor, diesel engine, and tractor.

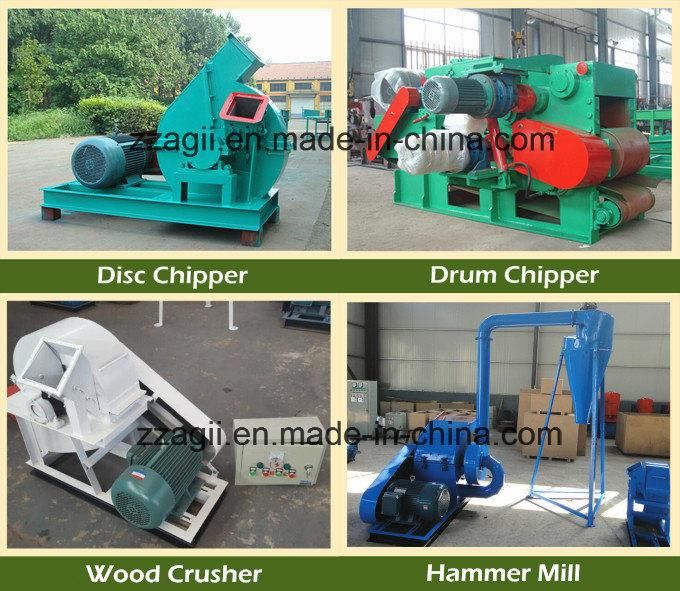

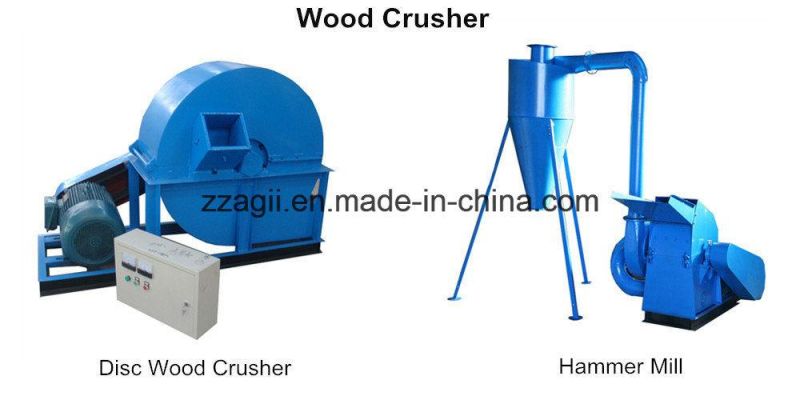

Difference of Wood Crusher and Hammer Mill:



Wood Crusher

It's necessary to use a wood crusher if your raw material is raw wood. Wood crusher can process raw wood with size less than 200mm (diameter) and moisture below 30%. After crushed, the output size can reach diameter 3-5mm, which is suitable for further briquetting and drying.


Hammer Mill (Smaller and softer material)

This machine is suitable for milling many kinds of material, such as: Wood Pieces Tree Trimmings, Peanut Shell, Empty Fruit Bunch, Corn Cob, Maize Stralk, sunflower shell meal
