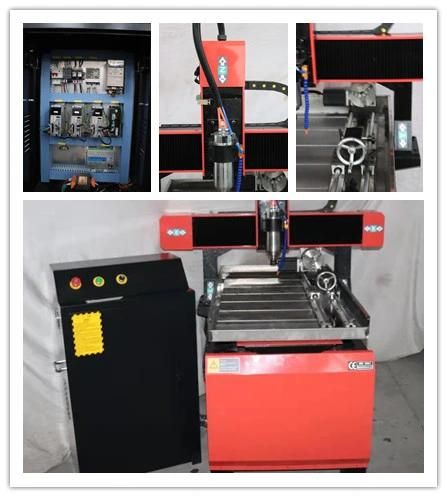

6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine

Shandong Lintianzhiyuan CNC Equipment Co., Ltd.
  • Condition：New
  • Certification：ISO, CE
  • CNC or Not：CNC
  • Voltage：220V
  • Working Area：600*900*200mm
  • Machine Body Structure：Cast-Iron Structure

Base Info

  • Model NO.：6090
  • Driving Mode：Taiwan Original Tbi Ball Screw
  • Guide Rail：Round Guide Rail
  • Spindle：1.5kw Water Cooling Spindle
  • Invert：Fuling
  • Table Style：Aluminum T-Slot Table with PVC
  • Spindle Speed：0-24000rpm
  • Collect Size：Er16
  • Motors and Drivers：Stepper Motors and Leadshine Drivers
  • Control System：Ncstuido
  • Standard Software：Artcam 2010
  • Package Weight：370kg
  • Travelling Speed：0-7000mm,Min
  • Working Voltage：AC220V, Single Phase, 50-60Hz
  • Transport Package：Proof-Material Plywood Case
  • Specification：110*110*135cm
  • Trademark：LINTCNC
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：200 Sets

Description

ModelLT-6090 CNC RouterEffective working area600*900*200mmMachine body structureCast-iron structureTable styleCast iron Guide rail Hiwin linear square guide railDriving modeTaiwan original TBI ball screwSpindle1.5kw water cooling spindleInvertFuling invertCollect sizeER16Spindle speed0-24000rmpMotors and Drivers86BYG-450B stepper motors and MA860H Leadshine driversControl sytemNcstudioWorking voltageAC220V,single phase,50-60hzStandard softwareArtcam2010Compatible softwareTYPE3/ArtcamOptional parts1.Hiwin linear square guide rail
2.Stainless water tank
3.Rotary axis for engraving round wood
4.2.2kw water cooling spindle

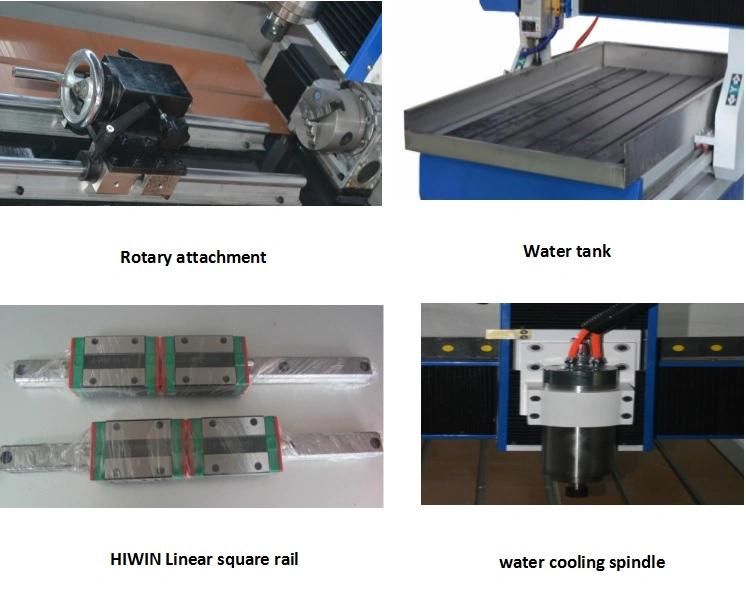

Optional parts

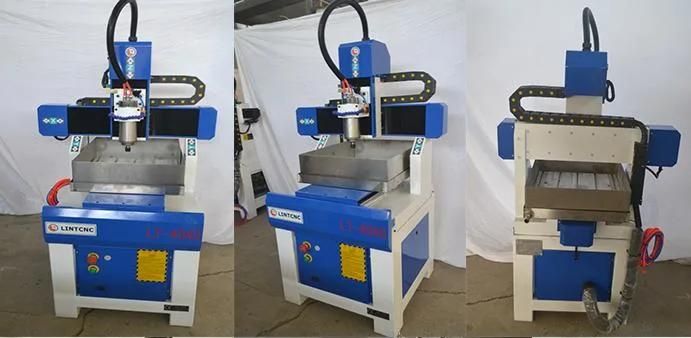

6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine




Main Features


1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional.
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.

6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine

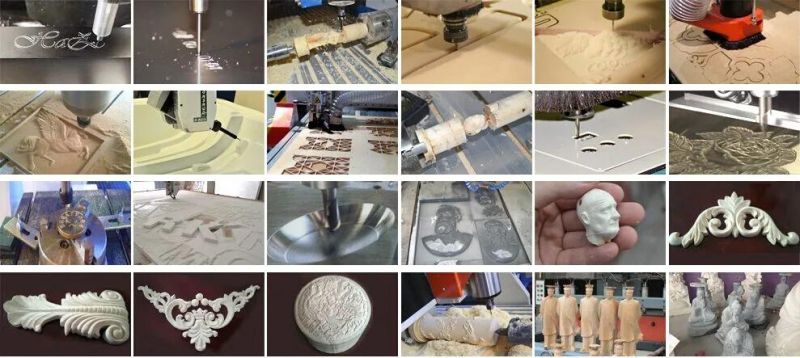

Application:



1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters, shape of groove for LED and neon and making sign.

2. Metal: copper, aluminum, stainless steel etc.

3. Wood: all kinds of wood, MDF, plywood. etc.


6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine

Package & shipping
6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine



Service

After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine
Company information
6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine
Certification
6090 Desktop CNC Router 600*900 Cast Iron Machine Aluminum Cutting Machine

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.

we will give you 24hours service from phone and Whatsapp
