• Power(W)：3kw-4.5kw
• Weight：1150kg
• Dimension(L*W*H)：3.30*2.26*1.3m
• After-Sales Service Provided：Field Maintenance and Repair Service
• Voltage：220V,380V
• Tool Diameter：3.175,6,12.7mm
• Transport Package：Woodencase
• Trademark：RUIJIE
• Origin：Shandong, China (Mainland)

Basic Info.

Power(W) 3kw-4.5kw Weight 1150kg Dimension(L*W*H) 3.30*2.26*1.3m After-Sales Service Provided Field Maintenance and Repair Service Voltage 220V/380V Tool Diameter 3.175/6/12.7mm Transport Package Woodencase Trademark RUIJIE Origin Shandong, China (Mainland)

Product Description

Hot selling!! CNC Router RJ-1325CCD Machine in market

Product Description:

This kind of machine with Vacuum table is not only suitable for Wood/ MDF Processing,but also very suitable for Contour edge cutting  Chevron board and soft metal cutting,such as aluminum composite panel,acrylic etc.,this type machine play an important role in the Advertising Industry.

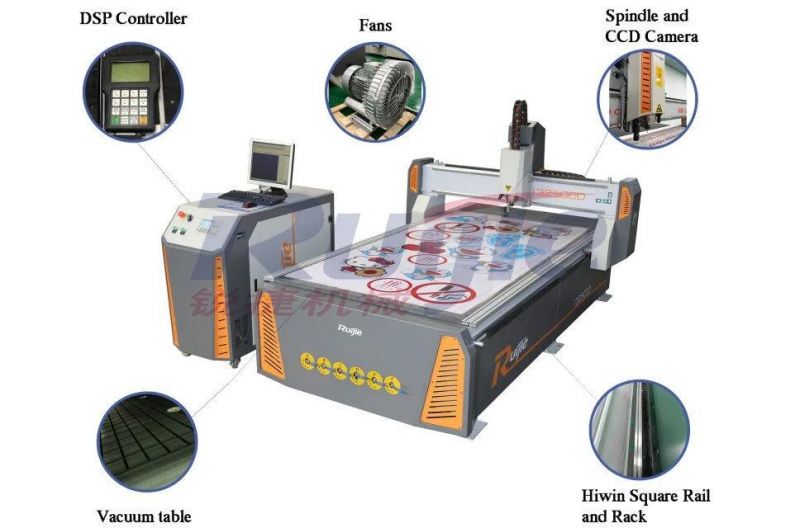

Features:

*Welded structure by thick profiled steel,stabilized under high temperature,ensures minimum distortion,excellent rigidity and powerful strength.
*Double motors and drivers of Y aixs ensure steady movement.
*Rack gear transmission ensures fast speed and high accuracy.
*Imported linear square guide rail ensures high accuracy and maximum work load.
*Optimized mechanical and electrical design with well-selected brand parts minimizes   breakdown rate.
*High power spindle,working vigorously with low noise,guarantees long time mass processing.
*Function of contimunous working at stop point by power failure.

Techanical parameters:

MODEL	RJ-1325CCD
Processing size (X*Y*Z)	1300*2500*200mm
Spindle	3.0KW with water-cooling
Spindle speeding	18000-24000 rpm/min
Control System	DSP/LeYu system
Motor and driver	Stepper motor
Working table	Vacuum table
Guide Rail	HIWIN Sauqre and Rack
Tool Diameter	Φ3.175mm Φ6mm Φ12.7mm

Application:

Efficient manufaccturing of wooden products,advertising billboard,acrylic cutting,letter mold forming and mass cutting.Also the machine can engrave iron,brass.aluminum,plastic and wood boards and the other non-metal materials.

Sample show:



Packaging show:



Exhibition show:



Company Information:

Jinan Ruijie Mechanical Equipment COLtd was established in 2002 and is located in Jinan city,Shandong Province.

We have an enough experience in design,Production,sales,after-sales services.

We are well known for our superior quality and service in the field of manufacturing and engineering of  CNC Router machine,Laser engraving and cutting machine,Fiber laser cutting machine,Plasma cutter machine etc,.Welcome to visit us,click ruijie.en.made-in-china.com to learn more about us.


After-sale service&Warranty:

1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
