• Model NO.：R-S1,R-S2
• Diamond Boring Machine Layout：Na
• Diamond Boring Machine Spindle Configuration：Na
• Diamond Boring Machine Spindle Number：Na
• Certification：CE, ISO
• Delivery Time：15 Days
• Transport Package：Wooden Case
• Specification：R-S1, R-S2
• Trademark：SAMACH
• Origin：China
• Production Capacity：100sets,Month

Basic Info.

Model NO. R-S1/R-S2 Diamond Boring Machine Layout Na Diamond Boring Machine Spindle Configuration Na Diamond Boring Machine Spindle Number Na Certification CE, ISO Delivery Time 15 Days Transport Package Wooden Case Specification R-S1, R-S2 Trademark SAMACH Origin China Production Capacity 100sets/Month

Product Description

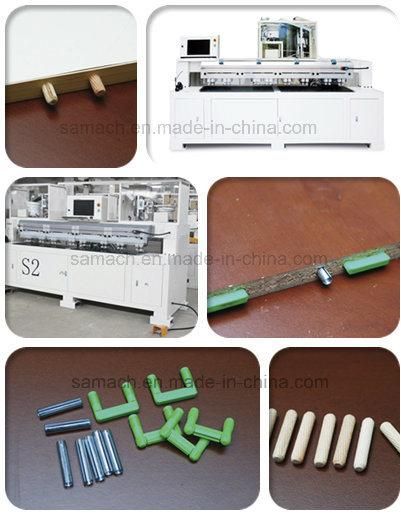

Good Woodworking Machinery Bore and Dowel Machine R-S1 R-S2


This is made for the automatic board side processing machining center, integrated side drilling,
milling slot, doweling (auxiliary automatic glue), it supports the processing of bar code scanning
import and manual import

Parameter

Model	R-S1/R-S2
Spindle power	1.5KW
Spindle RPM	0--24000r/m,adjusted by VFD knob control
Speeds &stroke for X	40M/min&2440 mm
Speeds &stroke for Y	10M/min&80 mm
Speeds &stroke for Z	10M/min&50 mm
Capacity of bore and insertion	60 insert/min
Max drilling depth	50mm
Maximum dowel insertion depth	40mm
Packing size	3462*1133*2015mm
Weight	1615Kg

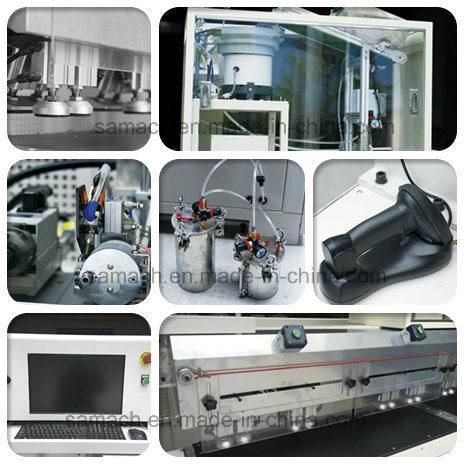

Woodworking Machinery Bore and Dowel Machines, R-S1, R-S2

1 Dowels automatic indentation
Precision wood glue into the pressure, to ensure that the pin fastening; high-speed nail into the shock plate for rapid feeding, free waiting; auxiliary silo automatic feeding, to solve the frequent artificial feeding
 troubles

2.One click glue gun cleaner
One click, easy to achieve the glue gun move to the designated location of automatic cleaning.

3.Multi-work processing
According to the length of the plate, up to four processing areas can be independently processed to reduce
 processing waiting

4.Reliable positioning precision
There's 3 stop device at the left,middle,right of X-axis direction,Y axis direction positioning wheel and correlation fiber positioning,clamping cylinder press in the Z-axis direction.

5.Processing file is loaded by code scanned
Through the scanning gun to load the file quickly, sEerial communication to ensure reliable and efficient data
 transmission

6.Easy to edit processing documents
Processing documents using plain text numerical editing, simple and easy to operate.

7.Security. Emergency Stop Switch,pull switch,threshold switch.

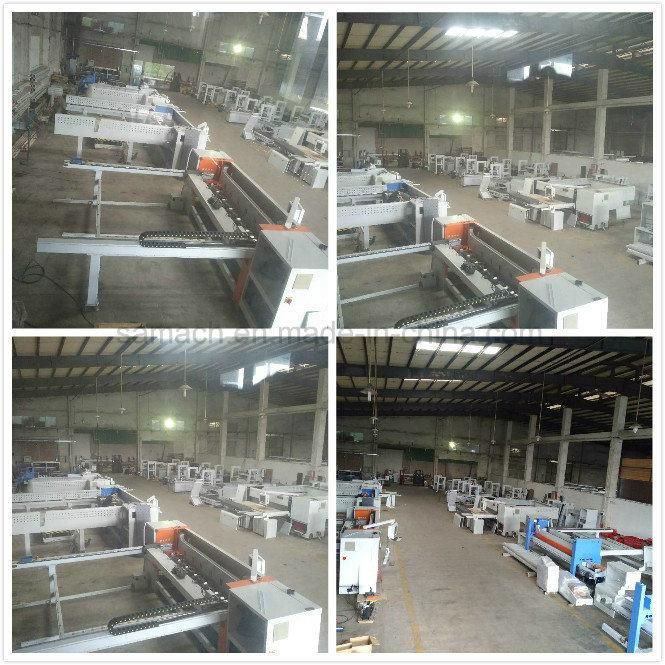

Our Workshops
