• Model NO.：JBT101
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Transport Package：Wood Carton
• Specification：465*430*515mm
• Trademark：ZhongDing
• Origin：China
• HS Code：84659400
• Production Capacity：200 Set,Month

Mini Radius Of  Banding

20mm

Heating Power

1.8kw

Sending Power

0.37kw(0.18kw)

Air Pressure

>=4kg/cm2

Speed Adjustment

stepless speed regulation

Feeding speed

1-18m/min

Counting Form

counter

Machine Size

1180*830*1150mm

Application Range

flexible melamine paper.veneer.plastic

Thickness Of Banding

Upon 0.3mm

Width Of Banding

10-50mm

Shape Of Workpiece

straight & curve line

other edge bander models:

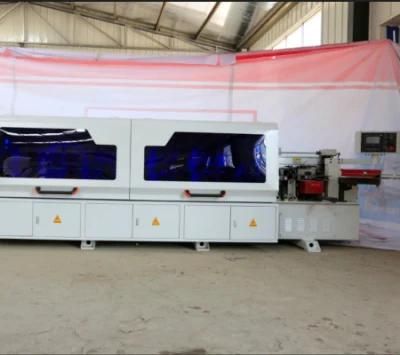

1.R5A automatic edge bander

Technical specifications:

Power sorce

380V+N/50Hz

min.Panel  lenth

168mm

 Band width

 12-65mm

 Feeding speed

 6-22M/min

 Feeding power

 1.5kw

 Machine size

 4700*950*1750mm

 Workpiece thickness

 10-60mm

 min.Panel width

 68mm

 Band thickness

 0.4-15mm

 Pneumatic pressure

 0.7Mpa

 Machine weigh

 1400kgs

     Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.


  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system

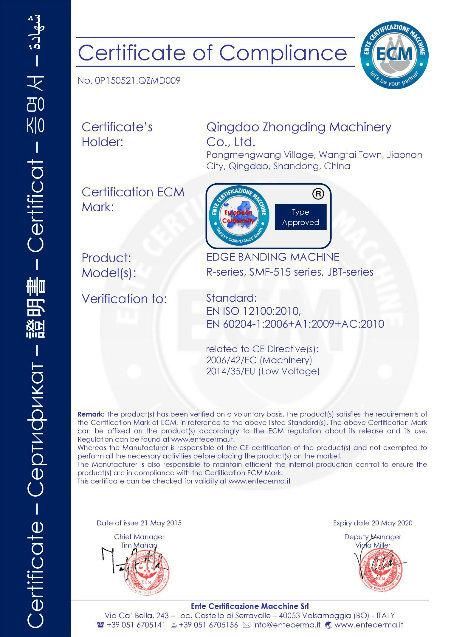

CE Certificate for Edge Bander
