• Model NO.：Z-700D
• Capacity：15~20 T,H
• Keyword 1：Wood Debarker
• Keyword 2：Wood Peeling Machine
• Keyword 3：Wood Peeler Machine
• Keyword 4：Wood Bark Peeling Machine
• Transport Package：Standard Export Package, Wooden Case
• Specification：CE, SGS
• Trademark：AGII
• Origin：China
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. Z-700D Capacity 15~20 T/H Keyword 1 Wood Debarker Keyword 2 Wood Peeling Machine Keyword 3 Wood Peeler Machine Keyword 4 Wood Bark Peeling Machine Transport Package Standard Export Package, Wooden Case Specification CE, SGS Trademark AGII Origin China Production Capacity 10 Sets Per Month

Product Description

Factory Price Manufacturer Supplier Wood Tree Debarking Peeling Machine



Specifications
Double roller Wood log debarker machine
1. Low power computations, low invest, high efficiency
2. compact structure
3 Rotary teeth wood log debarker machine ,
4 Suitable for most kinds of wood especially wood with lots of fiber

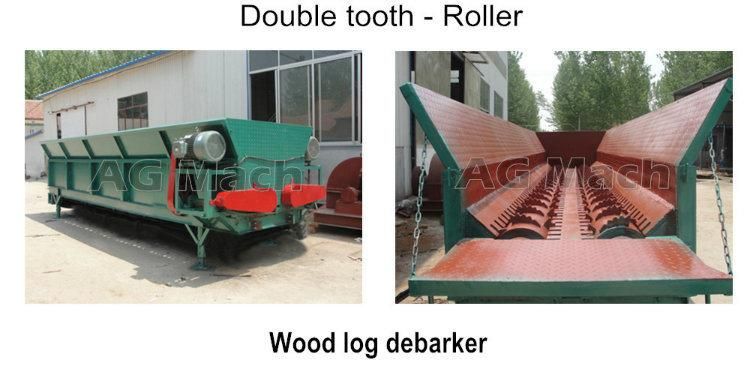

Wood Peeler/Double Roller Debarker/Barking Machine
Double roller Wood peeling machine, debarker,wood debarker,log debarker,wood log debarking machine
We offer different types of the wood debarkers

Technical Parameters:


Model	Roller Q'ty	Power	Output	Max Log Diameter	Length of Roller	Peeling Rate
Z-600DQ	Double	7.5+7.5+2.2 kw	3-4 t/h	200mm	6m	>95%
Z-600D	Double	11+11+2.2 kw	6-8 t/h	300mm	6m	>95%
Z-700D	Double	18.5+18.5+3 kw	10-15 t/h	350mm	7m	>95%
Z 800S	Single	37+3 kw	12-15 t/h	400mm	8m	>95%
Z 900S	Single	37+3 kw	18-20 t/h	400mm	9m	>95%




Features:
1.Adopt opened groove hopper, which makes one end for feeding, and the other end for discharging, which greatly improves work efficiency.
2.As the teeth impact the timber section, the logs section is rotating around itself and cycle moving with high efficiency, so that it also has a better net rate of striping.
3.It is available for many kinds of tree species, diameter, length and shape.
4.The net rate of peeling logs bending is much higher.
5.It with lower consumption, low failure rate and little maintenance workload.

Application:
The double roller debarker machine is suitable for various trees:eucalyptus, poplar, newly cut coniferous timber broad leaved wood, frozen wood.  The machine is used widely in the MDF manufacture factory, paper making factory, pulp factory, etc.

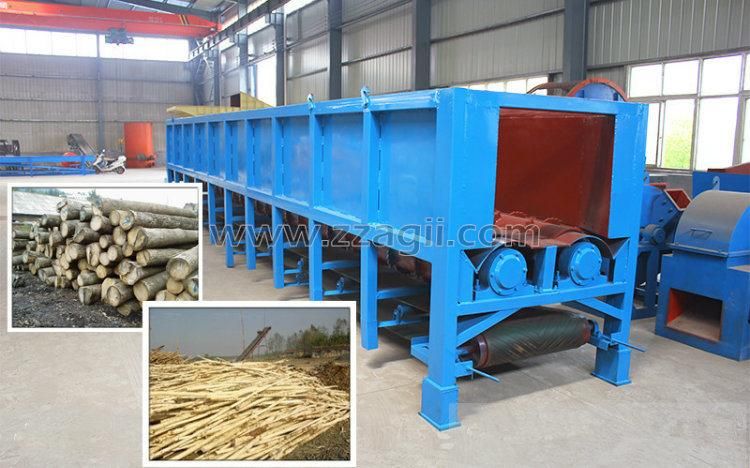

Product details:





Detailed Product Description

Wood debarking machine /wood peeler
Wood debarking machine is mainly used to remove the skin of logs so that they can be ready for further processing in paper making industry. Our wood peeling machine has very stable performance and earns a great reputation for our company both locally and abroad.

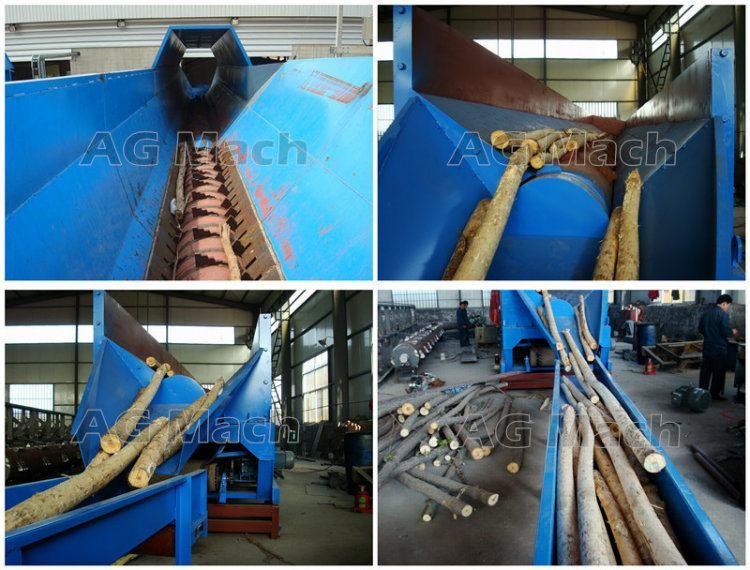

Wood Debarker Working Principle:
1. Put the log and tree branches into the rotary drum, close the feeding baffle, then start the machine, with clockwise operation, the cutter will strip wood skin.
2. Fifteen minutes later, stop the machine, open discharging baffle, then start the machine and counterclockwise run two minutes, the peeled wood can be automatically sent out by roller
3. The peeling rate could reach 95%.



Advantage:
In contrast of the rotary log debarker, the double roller debarking machine can work continuously in the whole process.
Because the wood can be rotated with irregular movement in the log peeler, so the recess of the curve wood can touch
the sheller teeth, the bark can be shelled much more easily then other log peelers. The log peeling machine is easy to
maintain, featured with small consumption, low failure rate, low noise and vibration.
