• Model NO.：JCT1530L
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Name：CNC Router Machine
• Control System：Ncstuidio or Syntec
• Spindle：9kw Air Cooling Spindle
• Motor：Japan Yaskawa Servo Motor
• 4th Axis (Rotary Axis )：1000mm Diameter 2500mm Length
• Table：Removable Table for Flat Working
• Software：Powermill with Post Processor
• Inverter：Taiwan Delta Inverter
• 5th Axis (Option)：The Spindle Can Move Forward and Backward
• Option：3D Scanner & CNC Hot Wire Cutting Machine
• Transport Package：Wood Case and Steel Support
• Specification：4300 x 2700 x 2400mm
• Trademark：CHAODA
• Origin：Linyi
• HS Code：8464909000
• Production Capacity：5000sets,Month

Basic Info.

Model NO. JCT1530L Customized Customized Condition New Color Customized Machine Name CNC Router Machine Control System Ncstuidio or Syntec Spindle 9kw Air Cooling Spindle Motor Japan Yaskawa Servo Motor 4th Axis (Rotary Axis ) 1000mm Diameter 2500mm Length Table Removable Table for Flat Working Software Powermill with Post Processor Inverter Taiwan Delta Inverter 5th Axis (Option) The Spindle Can Move Forward and Backward Option 3D Scanner & CNC Hot Wire Cutting Machine Transport Package Wood Case and Steel Support Specification 4300 x 2700 x 2400mm Trademark CHAODA Origin Linyi HS Code 8464909000 Production Capacity 5000sets/Month

Product Description

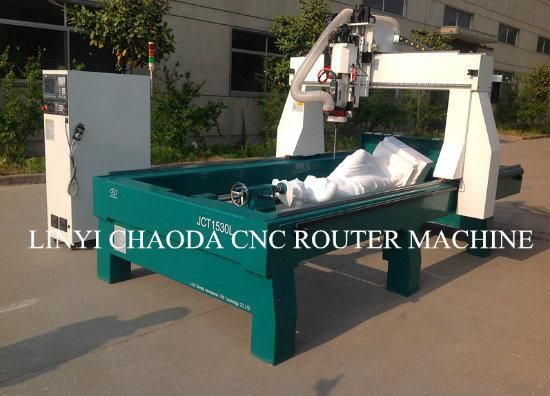

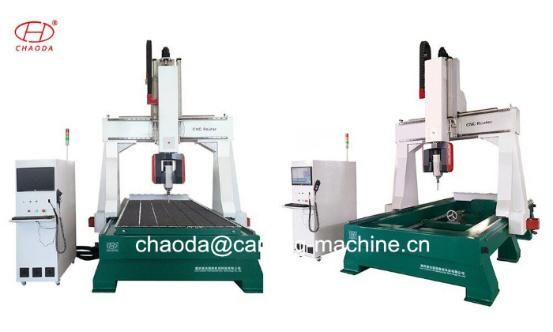

4 or 5 Axis 3D EPS Foam Plastic Wood Gypsum Plaster Stone Marble Rotary CNC Router Machine For Furniture Sofa Sculpture Statue

>> Technical parameter

X Y Z A C working size	1500 x 3000 x 500mm x180° 1300 x 2500 x 500mm x 180° (Option)
Rotary working size	0-1000mm diameter/ 2500mm length
Lathe bed structure	T-extrusion, Thick Steel frame
Table surface	Aluminium T-slot with clamps
X Y structure	Rack and pinion, HIWIN linear square rail
Z structure	Ball screw, HIWIN linear square rail
Resolution	±0.02mm
Reposition accuracy	±0.05mm
Max. rapid	0-60000mm/min
Max. working speed	0-30000mm/min
Spindle power	9kw air cooling spindle
Spindle speed	0-24000RPM
Working mode	Japan YASKAWA Servo motor and driver
Command code	G code(*uoo,*nc,*mmg, *plt)
Operating system	4 or 5 axis NcStudio (WeiHong) or Syntec control system
Collet	ER32
Software	PowerMill
Oil system	Yes
5th Axis	The spindle can swing forward and backward

 >> Technical features

a) all machine parts adopt high configuration and top quality fromall over the world,to make
    machine with high performance and durability.
b) with a big rotary device, can process different kind of 3d sculptures,statues,columns.
c) with a flat table, can process plane materials.

 >>Advantages

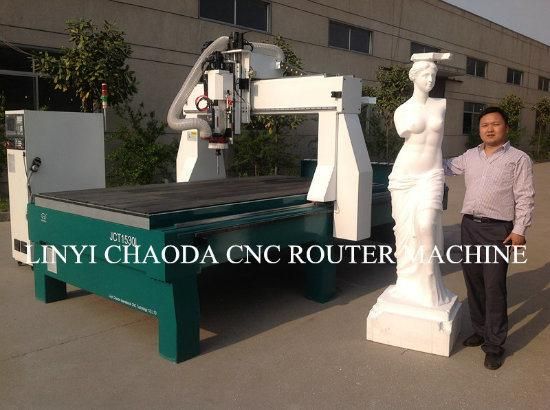

1) Big rotary axis for carving life-size foam wood stone sculptures statues figures and other column / round  /

    cylinder / square

2) Removeable table: When you carve flat / plane material, you can install the table

3) Powerful PowerMill software for complex programs

4) Easy-to-use Ncstuidio or Syntec controller

5) 5th axis: The spindle can move forward and backward in different angle

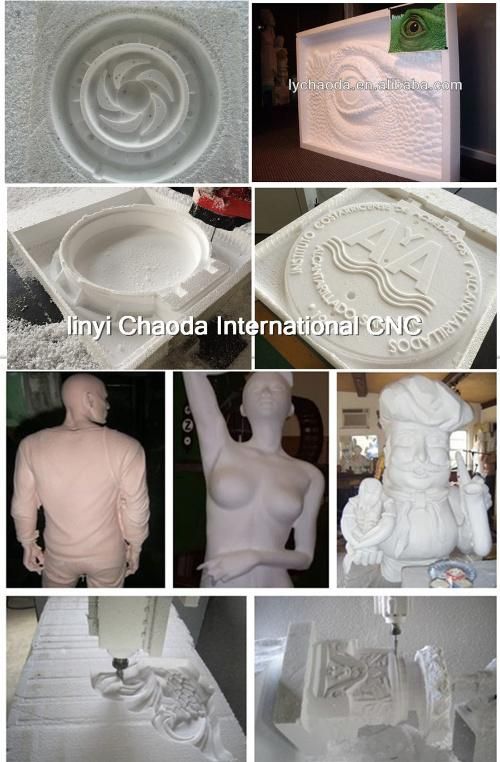

>> What can be made by this machine
It can process many materials,like foam,woods, MDF, Composite boards, Alucobond,
PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates.,etc.

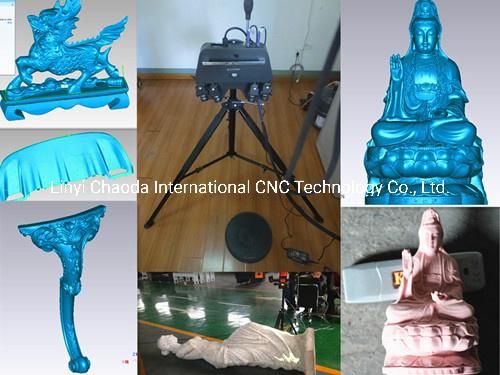

>> Optional device: 3d scanner



>> Customer visiting & training

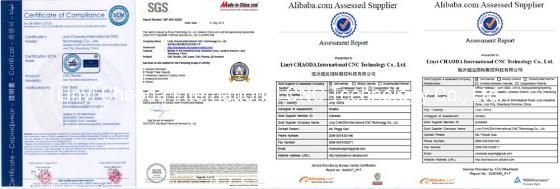

>> Certifications:

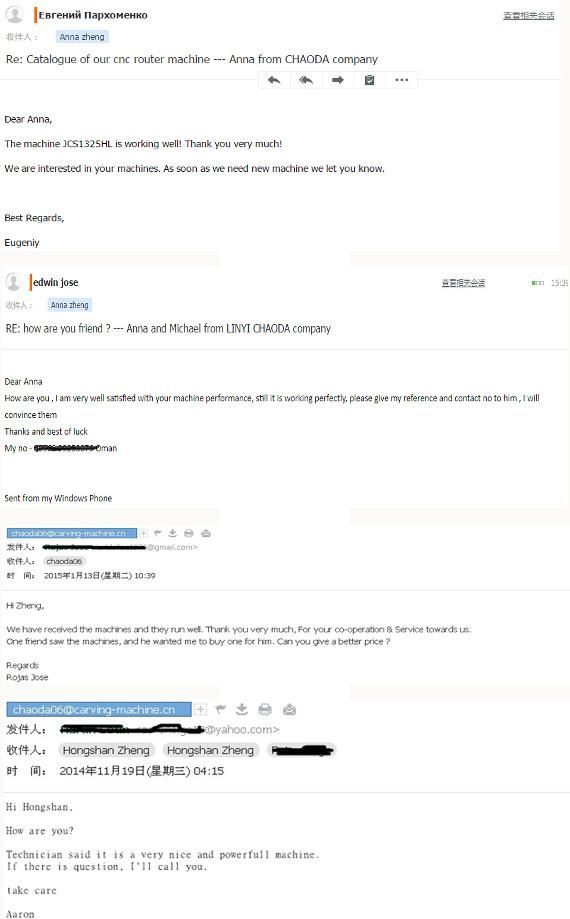

>> Customer feedback



>> If have any interest,contact us below

Linyi CHAODA International CNC Technology Co., Ltd was established in 2002 and covers
40000 Square meters.we have experienced and professional engineers who devote themselves
to machines' research, development, production, and after-sale service. Our machines have won
praise from customers worldwide and with very good reputation in this field.

Welcome to visit us !!
