Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Warranty:1 Years
  • Type:Table Panel Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Automatic Grade:Automatic
  • Precision:High Precision

Base Info

  • Model NO.:MJ6138
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:1 Years
  • Name:Table Saw Machine
  • Model:Mj6138
  • Main Motor:5.5kw
  • Scoring Motor:1.1kw
  • Titing Saw Blade:45°,90°
  • Max Cutting Length:3800mm
  • Max Cutting Width:1250mm
  • Max Cutting Thickness:75mm
  • Weight:1000kg
  • Main Saw Spindle Speed:4000,6000rpm
  • Scoring Saw Spindle Speed:8000rpm
  • Main Spindle Diameter:30mm
  • Scoring Spindle Diameter:22mm
  • Scoring Saw Blade Diameter:120mm
  • Overall Dimensions:4000*2550*900mm
  • Transport Package:Wooden Case
  • Specification:4000*2550*900mm
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month

Description

model noMJ6138sliding table size3800*375mmmax cutting length3800mmmax cutting width1250mmmax cutting thickness75mmmain saw spindle speed4000/6000rpmscoring saw spindle speed8000rpmmain spindle diameter30mmscoring spindle diameter22mmmain motor5.5kwscoring motor 1.1kwtilting saw blade45°/90°scoring saw blade diameter120mmweight1000kgoverall dimensions4000*2550*900mm

Automatic sliding table saw machine
1,90 degree panel saw can only cut 90 degree right angle.
2,45 degree panel saw blade can be tilted, not only can cut right angle but also can effectively cut 0-45° sheet, used for solid wood furniture, panel furniture, and other manufacturers. You can choose the appropriate model according to your needs.

Features

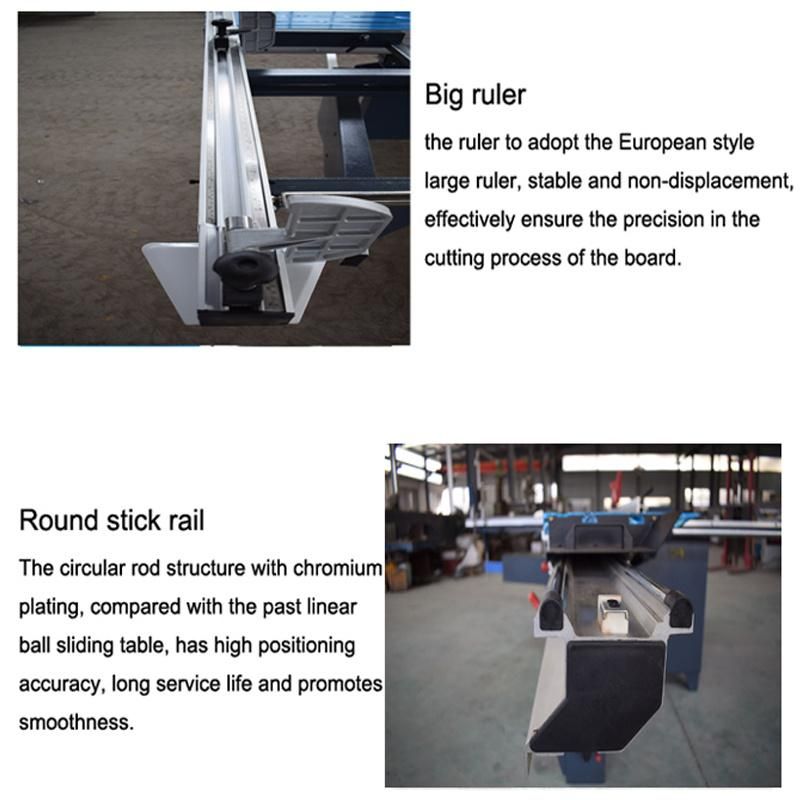

1,Circular rod structure with chromium plating, compared with the past linear ball sliding table, has high positioning accuracy, long service life and promotes smoothness.
2,Upgrade large motor, the machine uses pure copper motor, the default main motor is 4kw, the scoring motor is 0.75kw. If you need to cut solid wood and other plates, you can customize 5.5kw+1.1kw large motor.
3,The ruler to adopt the European style large ruler, stable and non-displacement, effectively ensure the precision in the cutting process of the board.

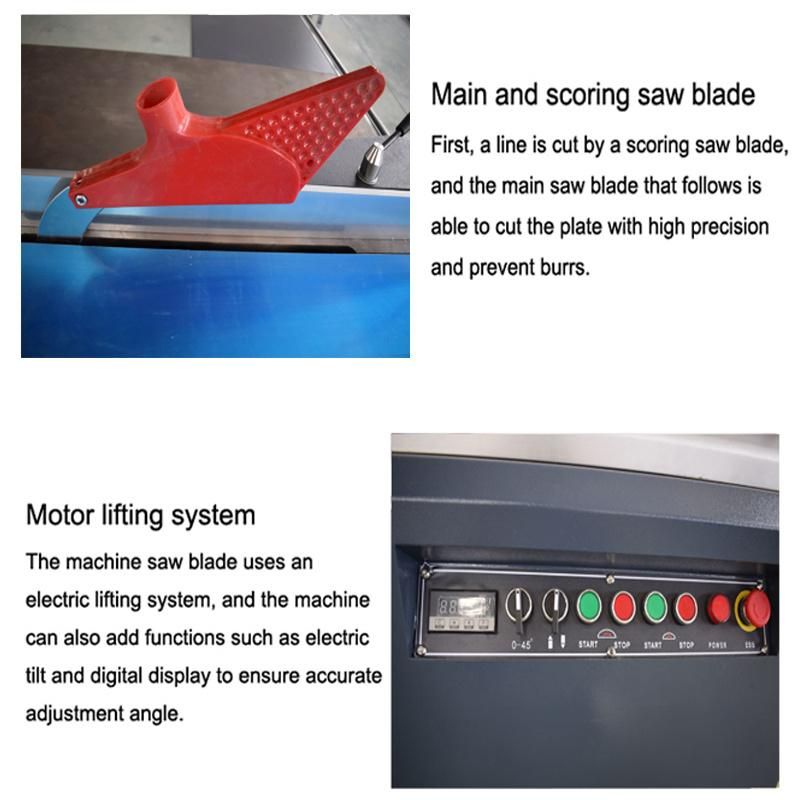

4,Main and scoring saw blade first by a scoring saw blade to open a line, followed by a main saw blade can be easily cut with high precision to prevent chipping burrs.
5,The machine saw blade adopts an electric lifting system, which is more accurate than a hand-cranked saw blade. The machine can also add functions such as electric tilt and digital display to ensure accurate adjustment of the angle.

Detailed Description

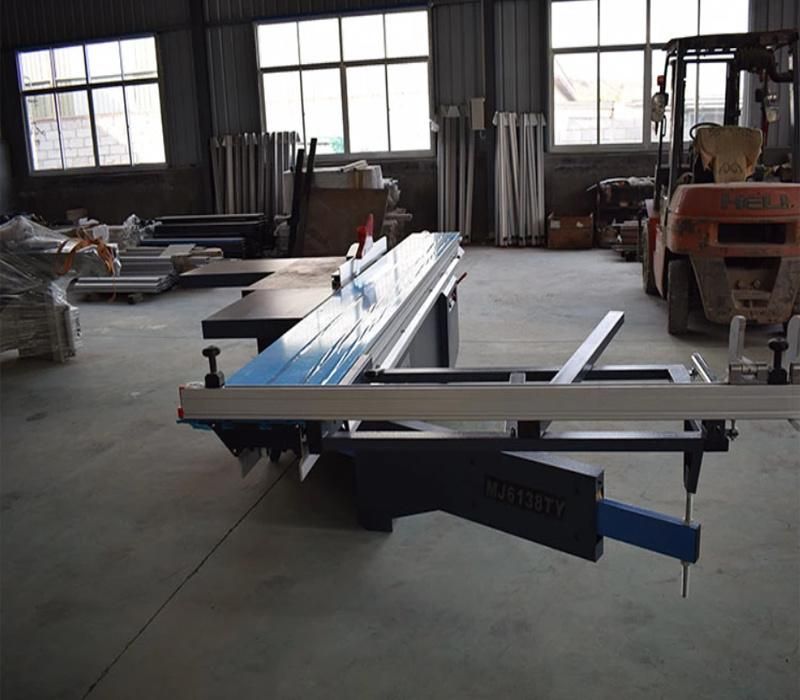

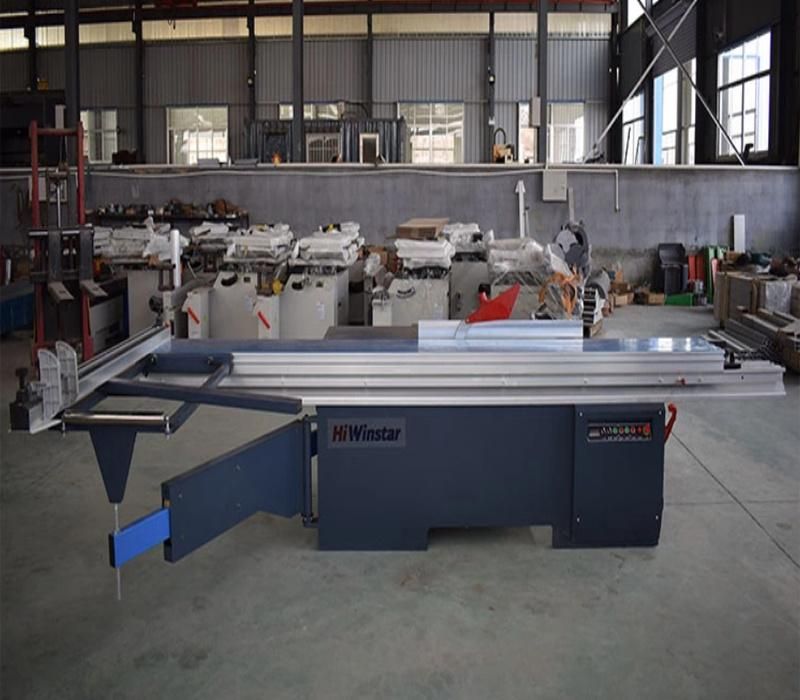

Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking

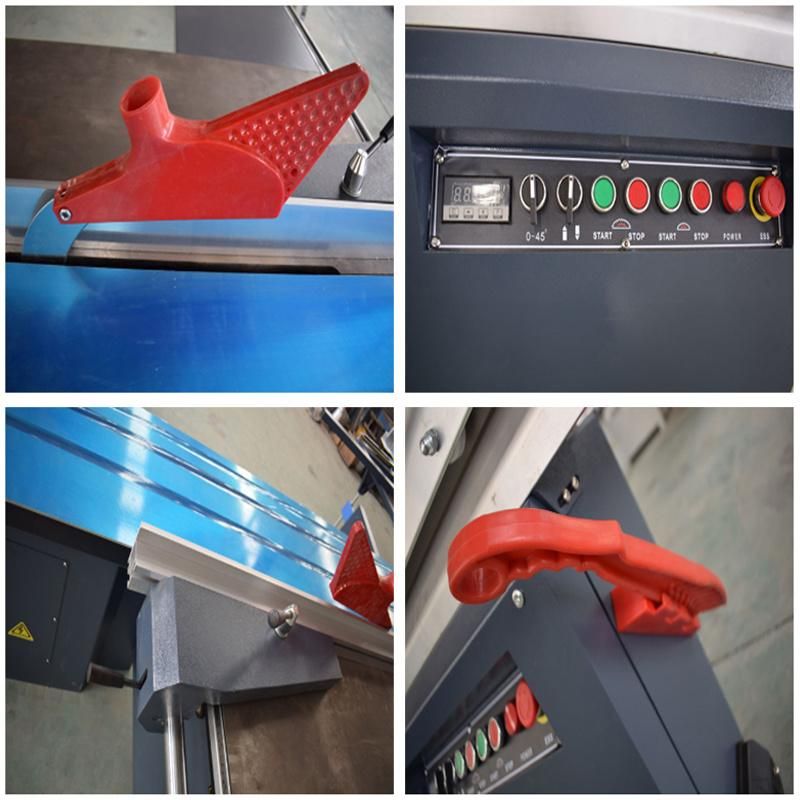

Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for WoodworkingDetailed Pictures

Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking
Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking
Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for WoodworkingApplication
It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.
Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking
Packaging & Shipping
Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for WoodworkingMj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for Woodworking

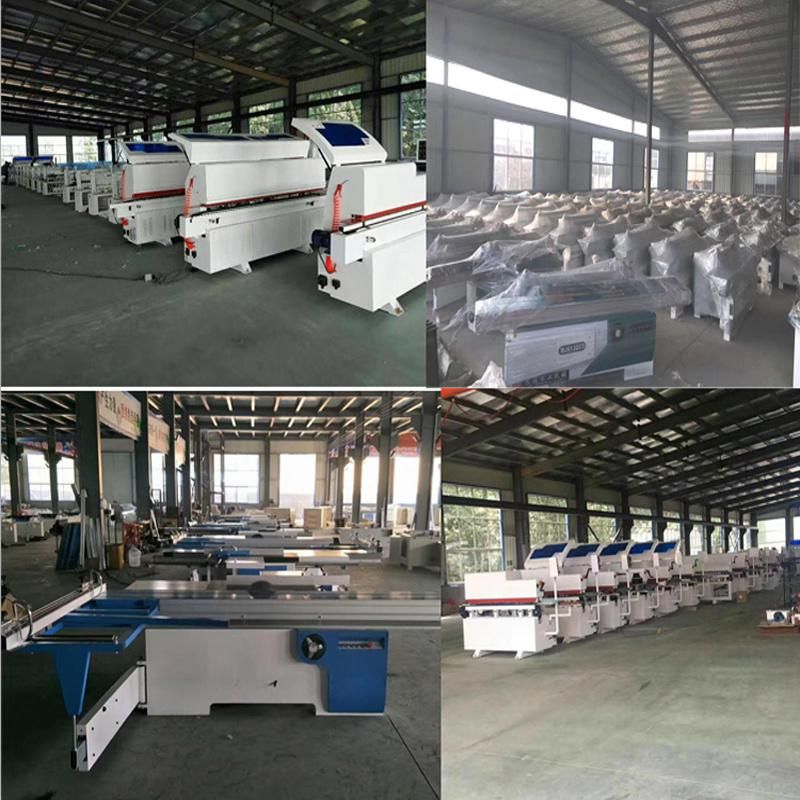

Company Information
Mj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for WoodworkingMj6138 Automatic Wood Cutting Sliding Table Panel Saw Machine for WoodworkingFAQ

1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
