1300mm Woodworking Sanding Machine Sander for Plywood

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：R-RP1300
  • Color：Iron Grey
  • Transport Package：Plywood Case
  • Specification：2750*2200*2050mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659300
  • Production Capacity：2 Sets,Week

Description

ModelZDR-RP630ZDR-RP1000ZDR-RP1300Max. working width630mm1000mm1300mmMaterial thickness2.5-120mm2.5-120mm (option 2.5-160mm)2.5-120mm (option 2.5-160mm)Min. working length350mm350mm350mmFeeding speed6-30m/min6-30m/min6-30m/min1# sanding belt speed18m/min18m/min18m/min2# sanding belt speed14m/min12m/min12m/minSize of sanding belt650*1900mm1020*2020mm1320*2020mmMain motor power11kw, 7.5kw15kw, 11kw37kw, 22kwTotal power20.74kw28.94kw56.74kwWorking air pressure0.5Mpa0.55Mpa0.55MpaVolume of dust collecting5000m³/h5000m³/h5000m³/hSpeed of dust collecting25-30m/s25-30m/s25-30m/sOverall dimension1700*1100*2050mm1700*1400*2050mm2750*2200*2050mmWeight1300kg2000kg3200kg

Detailed pictures:

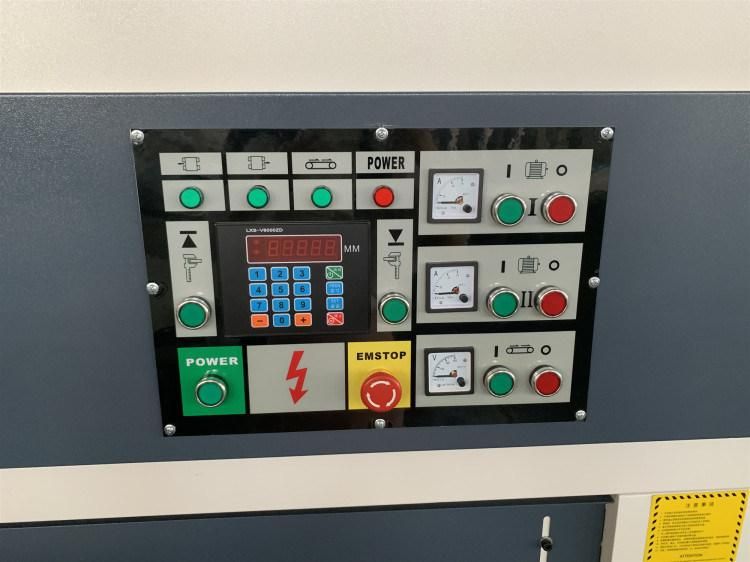

Control panel
1300mm Woodworking Sanding Machine Sander for Plywood

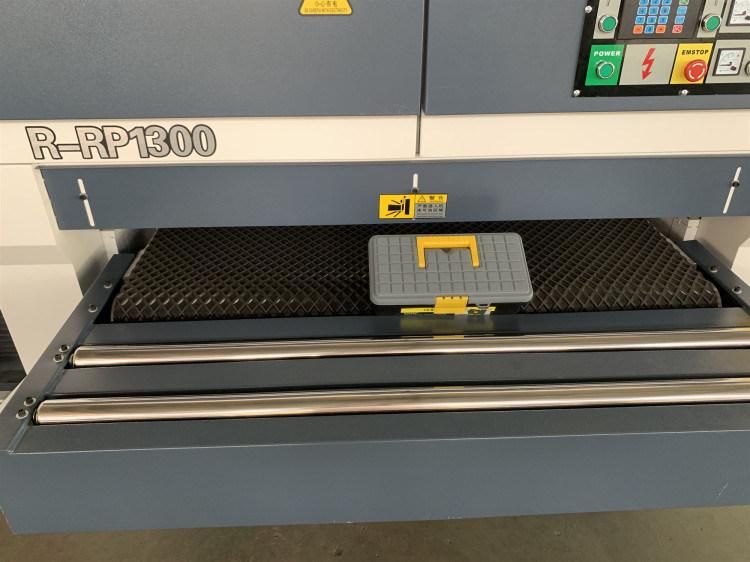

Working table
1300mm Woodworking Sanding Machine Sander for Plywood

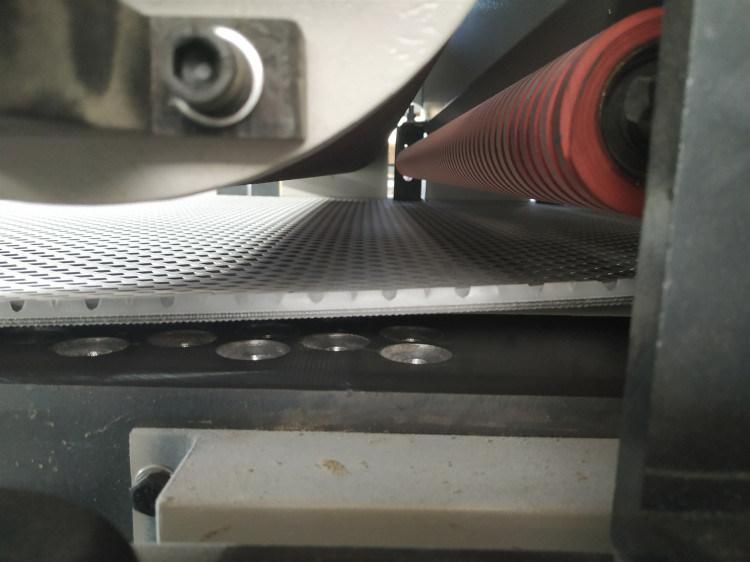

Vacuum table optional
1300mm Woodworking Sanding Machine Sander for Plywood

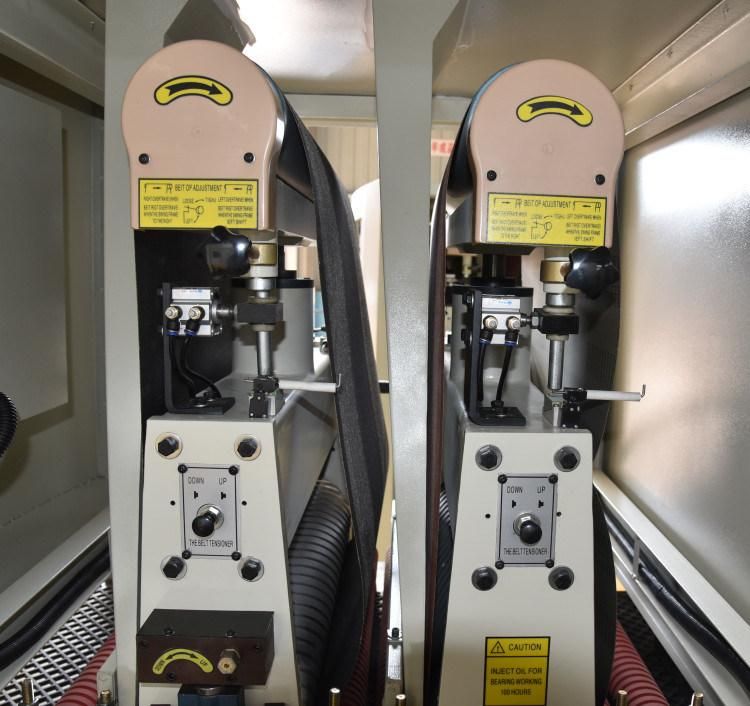

Sanding belt
1300mm Woodworking Sanding Machine Sander for Plywood

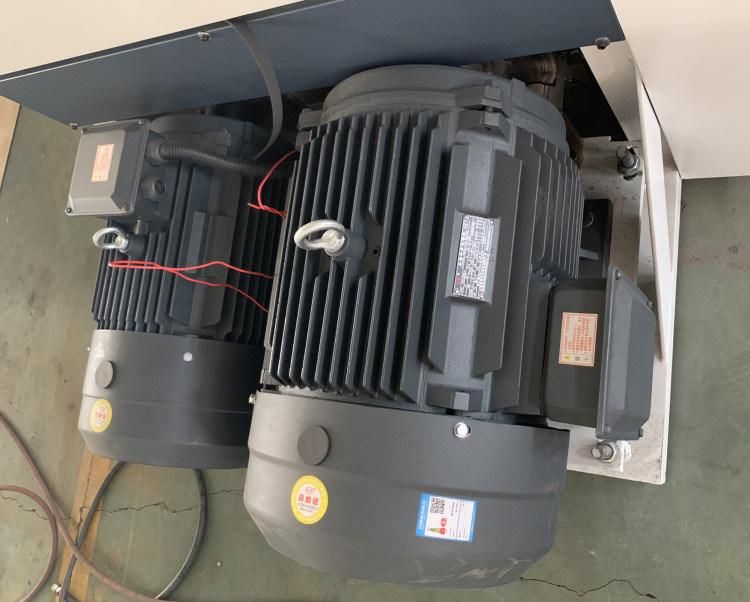

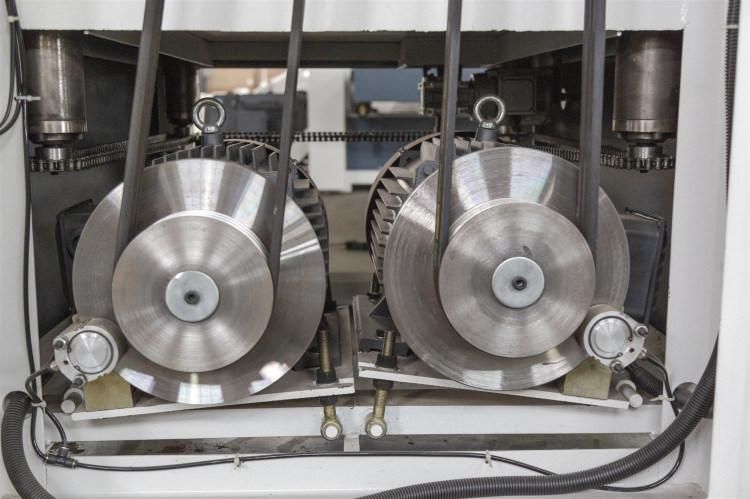

Main Motors
1300mm Woodworking Sanding Machine Sander for Plywood

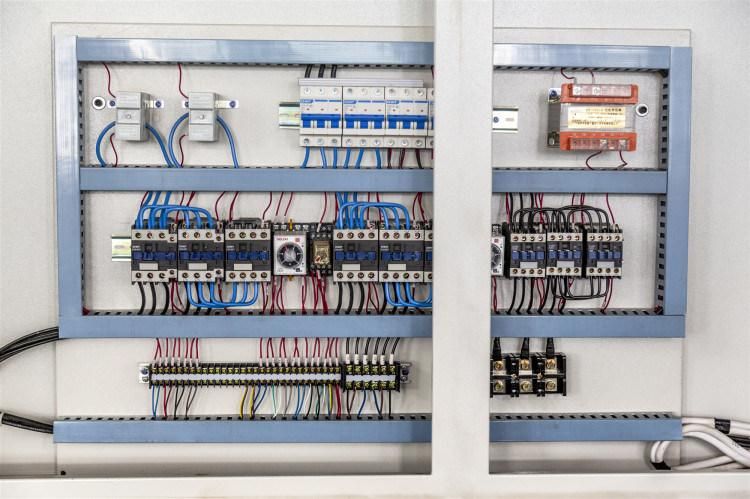

Electric box
1300mm Woodworking Sanding Machine Sander for Plywood

1300mm Woodworking Sanding Machine Sander for Plywood


Packaging & shipping:

1300mm Woodworking Sanding Machine Sander for Plywood
 Company information:

1300mm Woodworking Sanding Machine Sander for Plywood
1300mm Woodworking Sanding Machine Sander for Plywood
1300mm Woodworking Sanding Machine Sander for Plywood

For more details, pls feel free to contact us.
