• Model NO.：GD2400
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Model No.：Gd-2400

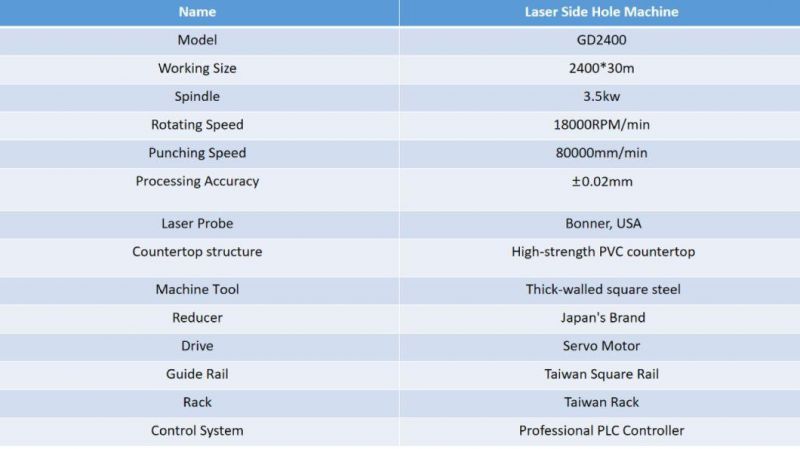

• Product Name：CNC Side Hole Drilling Machine
• Application：Wood Board
• Machine Size：3120*1580*1550mm
• Max Working Speed：80000mm,Min
• Max Process Speed：60000mm,Min
• Re-Positioning Accuracy：±0.02mm
• Spindle Power&Speed：3.5kw Air Cooling Spindle, 0-18000rpm
• Xyz Transmission：Y-Axis Rack, Z-Axis Ball Screw
• Working Voltage：AC 380V 50Hz or 220V
• PLC：English Panel Controller

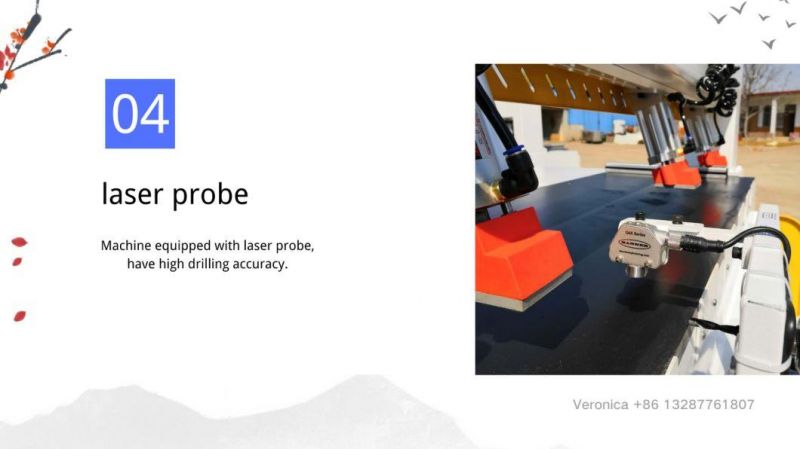

• Infrared Ray：America Banner Laser Probe
• Gantry：Manufactured by CNC Machine Center
• Specifications：4500*900*1500mm
• Color：Customized
• Transport Package：Wood Case
• Specification：1.3t
• Trademark：Guandiao
• Origin：China Jinan
• HS Code：8465990000
• Production Capacity：5000pieces,Years

Basic Info.

Model NO. GD2400 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Model No. Gd-2400 Product Name CNC Side Hole Drilling Machine Application Wood Board Machine Size 3120*1580*1550mm Max Working Speed 80000mm/Min Max Process Speed 60000mm/Min Re-Positioning Accuracy ±0.02mm Spindle Power&Speed 3.5kw Air Cooling Spindle, 0-18000rpm Xyz Transmission Y-Axis Rack, Z-Axis Ball Screw Working Voltage AC 380V 50Hz or 220V PLC English Panel Controller Infrared Ray America Banner Laser Probe Gantry Manufactured by CNC Machine Center Specifications 4500*900*1500mm Color Customized Transport Package Wood Case Specification 1.3t Trademark Guandiao Origin China Jinan HS Code 8465990000 Production Capacity 5000pieces/Years

Product Description

Product Description

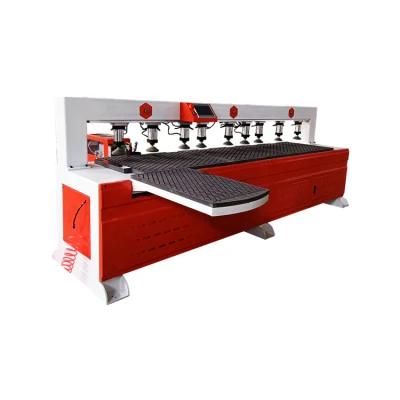

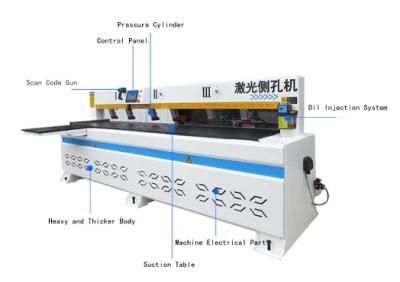

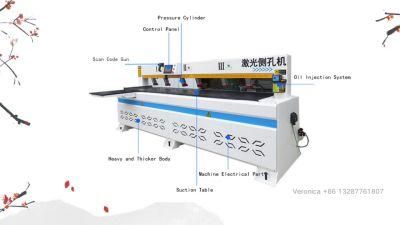

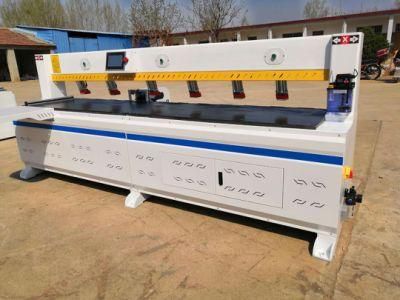

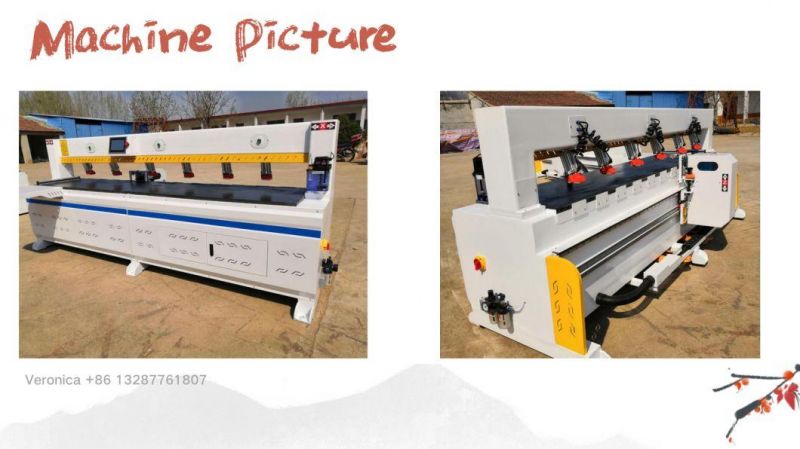

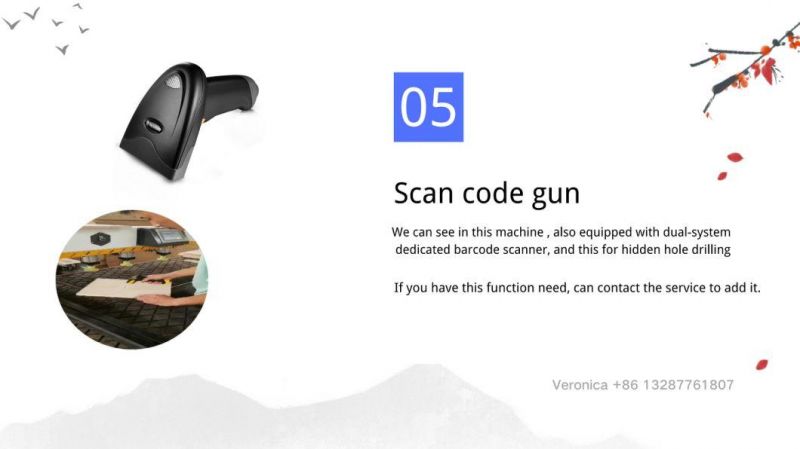

*  Automatic side drilling machine used for horizontal perforated plate custom furniture. It could completely replace the traditional drilling machine, to get rid of the traditional punching mode and dependence on skilled workers. scan code processing directly.Through the production with special design software.
*  High quality accessories: heavy structure welded and 5-sides milled, Taiwan Xinyue rack and pinion, Taiwan CSK rail, Taiwan planetary reducer.

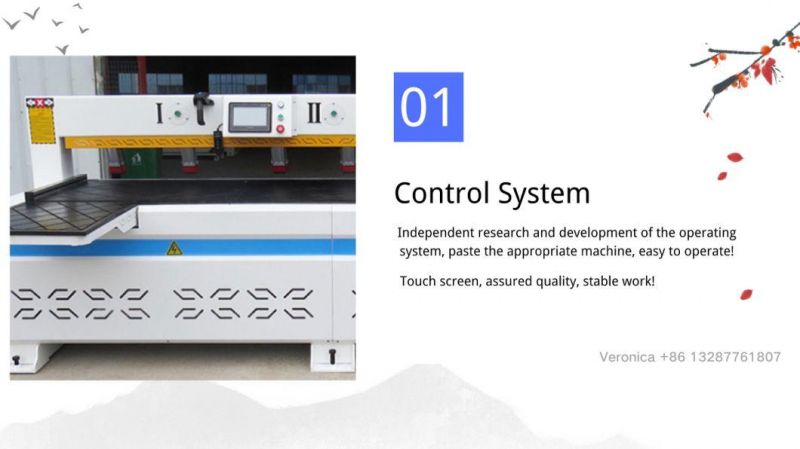

*  Reasonable design: independent computer control, operation and maintenance more convenient.
*  Three working areas: processing three different size plates at the same time with high efficiency
*  Automatic oil lubrication system: prolong the service life of the machine.

Good services1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEM

If you have other needs, please contact me!
