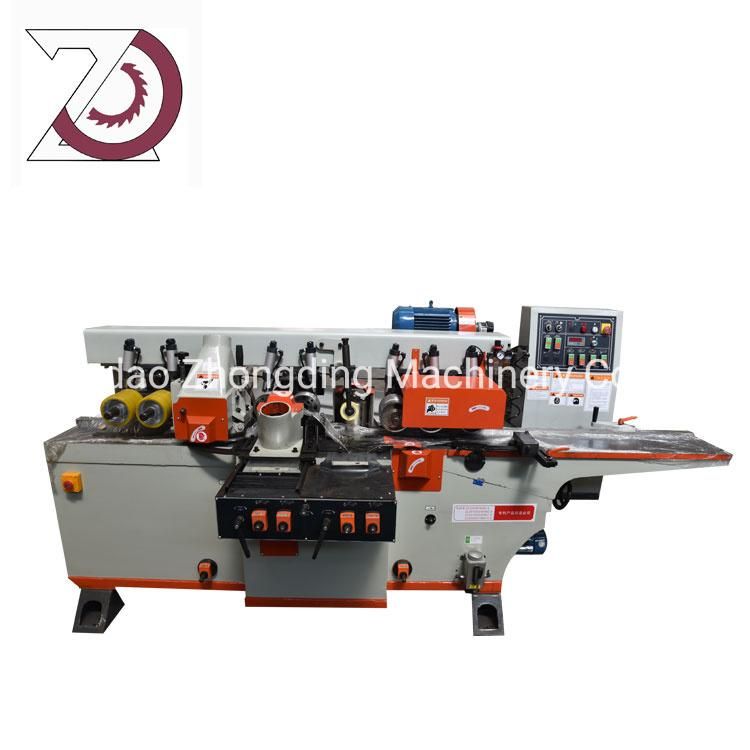

6 Spindles Four Sides Planer Moulder Machine
Qingdao Zhongding Machinery Co., Ltd.- Warranty：1 Year Since Received Machine
- Type：Four-Side Planer
- Working Depth：10~125mm
- Working Width：20~230 mm
- Drivetrain：Worktable Elevating Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：MB6023
- Motor Power：＞10Kw
- Cutter Shaft：4
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE, ISO
- After-sales Service：Video Technical Support, Online Support
- Transport Package：Plywood Box
- Specification：3100*1600*1600 mm
- Trademark：QDZD
- Origin：China
- HS Code：8465950000
- Production Capacity：30 Sets,Month
Description
Moulders & 4 sided planers consist of top, bottom and side cutter heads that allows timber to be planed or moulded on all four sides (depending on the model).
These are wood working machines (feed-through machines) with 4 spindles in a row for the foursided processing of workpieces through planing. The workpieces are guided by feed rollers (transport rollers) along the milling spindles.
Design and principle
A table is mounted on a elongated machine frame. The machine frame is equipped with motors to drive the spindles. In most cases four side planers are assembled with four spindles, which are arranged below, right, left and above the table. The workpiece passes the with cutter heads tipped spindles via toothed wheels.
The process is divided into following steps:
| Surface planing | Bottom processing |
| Joining | Side processing |
| Thickness planing | Top processing |
Caracteristics that distinguish it to a moulder are:
Four side planers process workpieces with rectangular, flat side surfaces. Only in exceptional cases they can profile up to 10 mm deep. The spindles are adjustable axially and radially to max. 10 mm. Older four side planers often don't offer any adjustment. In contrast, moulders profile rectangular workpieces and their spindles are adjustable to more than 10 mm.

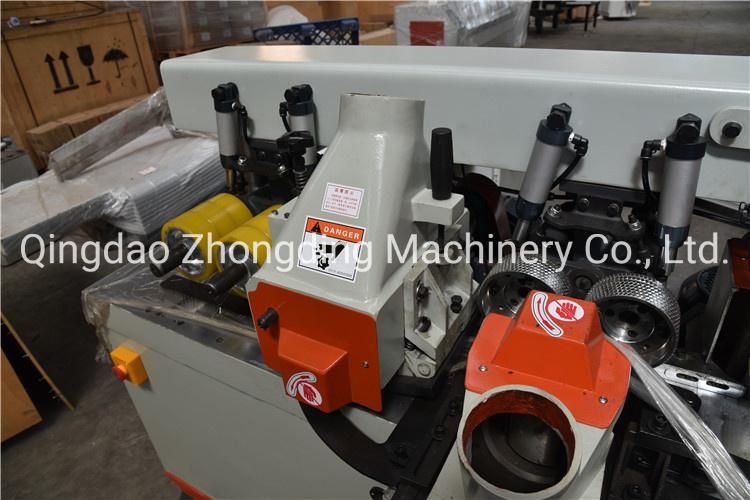

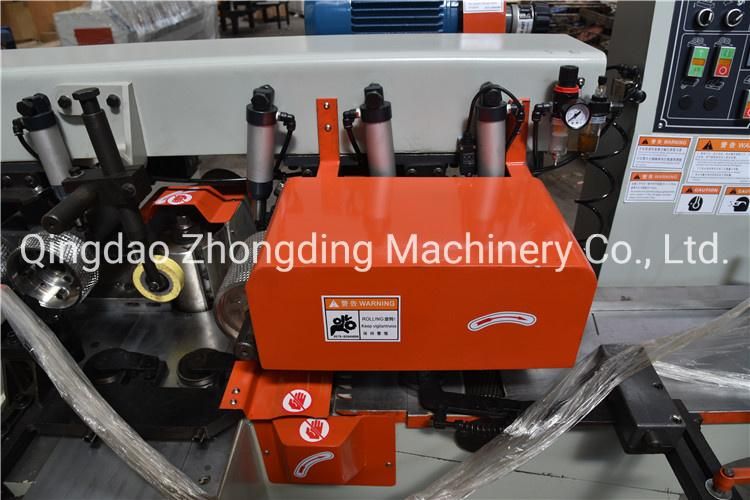

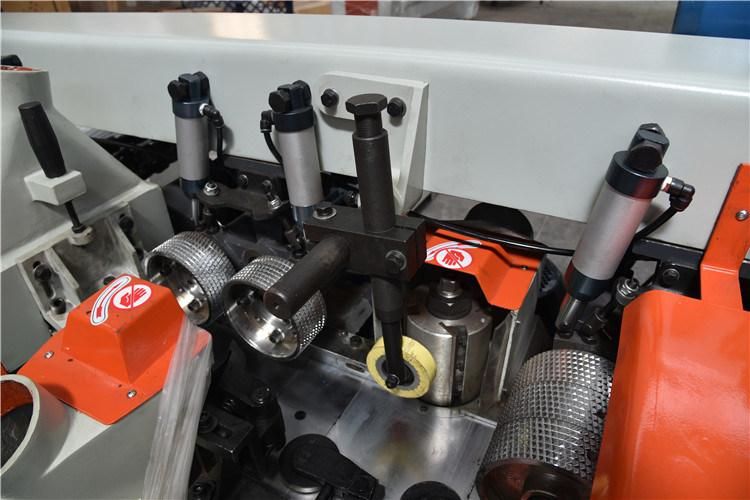

Picture:
Our company:
