• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size(mm)：1300*2500
• Engraving Area：1300*2500*200
• Spindle Power：4.5kw 6.0kw
• Control System：DSP or Nk Series or Syntec Series
• Software：Artcam
• Motor：Stepper Motor
• Drive：Taida Inverter
• Transmission：Ball Screw and Rack
• Rail：Taiwan Hiwin Square Rail
• Transport Package：Playwooden Case
• Specification：CE, ISO, SGS
• Trademark：FIRMCNC
• Origin：Jinan Shandong China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Table Size(mm) 1300*2500 Engraving Area 1300*2500*200 Spindle Power 4.5kw 6.0kw Control System DSP or Nk Series or Syntec Series Software Artcam Motor Stepper Motor Drive Taida Inverter Transmission Ball Screw and Rack Rail Taiwan Hiwin Square Rail Transport Package Playwooden Case Specification CE, ISO, SGS Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

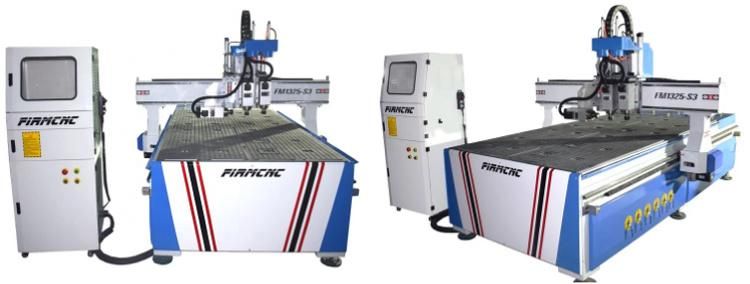

3 Axis cnc wood carving machine cnc router sign making for wood door

Machine features
*Three air cooled spindle  (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.
*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.
*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.

Applicable Industry
(1) Woodworking industry:
Engraving machine can be used for carving wood carving, wood jewelry boxes, decorative products and jewelry carved and so on.
(2) Advertising industry:
Engraving machine can be used for carving a variety of signs, logos, badges, panels, craft and decorating, home decoration.
(3) Other industries:
Also can be used for portraits, landscapes, calligraphy, seals and other graphic art and sculpture reliefs and other production.


Technical specification

Model	FM1325 / FM1530 / FM2030 / FM2040
Working area	2500* 1300mm / 3000* 1500mm / 3000 *2000mm / 4000* 2000mm
Control system	Ncstudio control, optional NK280, SYNTEC
Motor and drivers	Step motor / Servo motor
Guide rail	Taiwan HIWIN square guide rail
Transmission way	High precision rack gear
Table structure	Vacuum and T-slot table
Working speed	8-15m/ min
Table Structure	Welded Steel Frame
Spindle Power	3.5kw / 4.5kw/ 5.5kw/ 9kw air cooling spindle
Max Speed	24000 RPM
Variable Frequency Drive	Fuling inverter / Delta inverter
Cooling System	Electric air Cooled

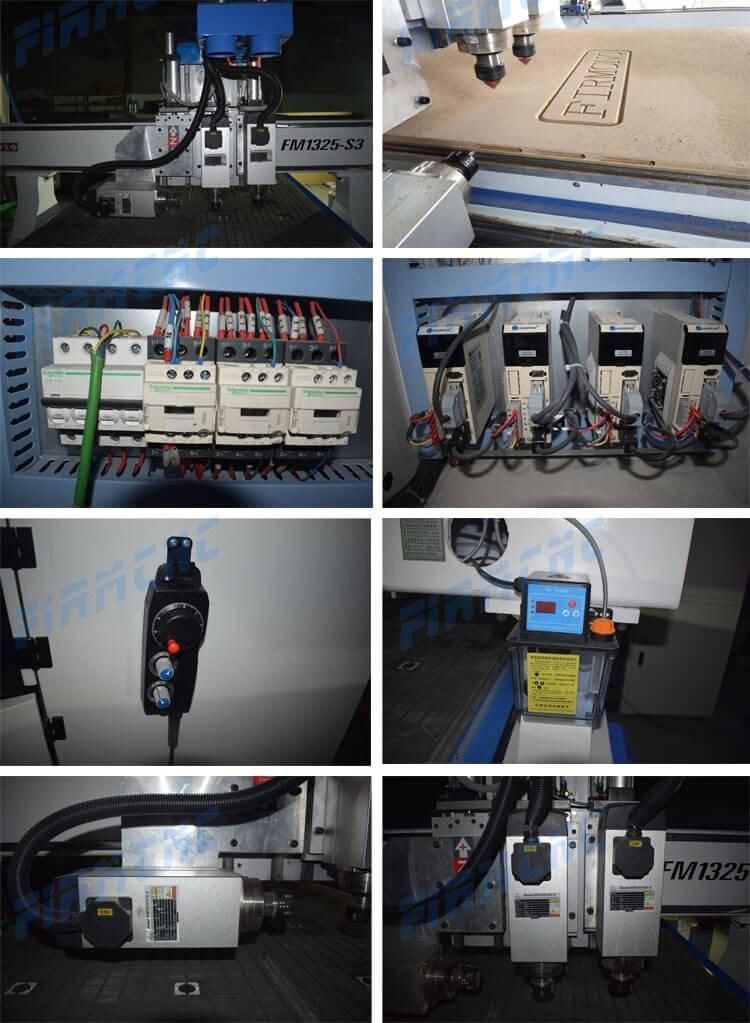

Main parts:
#Pneumatic 3 heads Air cooling spindle:
3.5kw / 4.5kw/ 5.5kw air cooling spindle
#Linear Guide Rails:
PMI/THK guide rails for precision machining at high-speeds. Energy-saving operation and long service life.
#Yaskawa servo motor and drivers:
We adopt Japan YASKAWA Servo motor, world famous servo motor brand for its fantastic precision, smooth running, no vibration in low speed, no drop sharply even in high speed, strong load capability, much reliable control performance,etc
#Hand wheel:
High-speed, accurate CNC machining. Look-ahead with 256 pre-calculated blocks while feedforward control improves tracking and contouring accuracy. Manage tool magazine, tool life, and more.
#Herion Helical Rack:
WMH Herion helical rack and pinion drives provide accurate and dynamic acceleration.
Their durable design ensures a long service life with minimal maintenance. Capable of precisely moving heavy loads.
#Vacuum Pump:
Run quiet and cool. The 100% oil-less design and long vane life ensures minimal maintenance.

Company information:
The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance
Wood router, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching

Customer visit factory

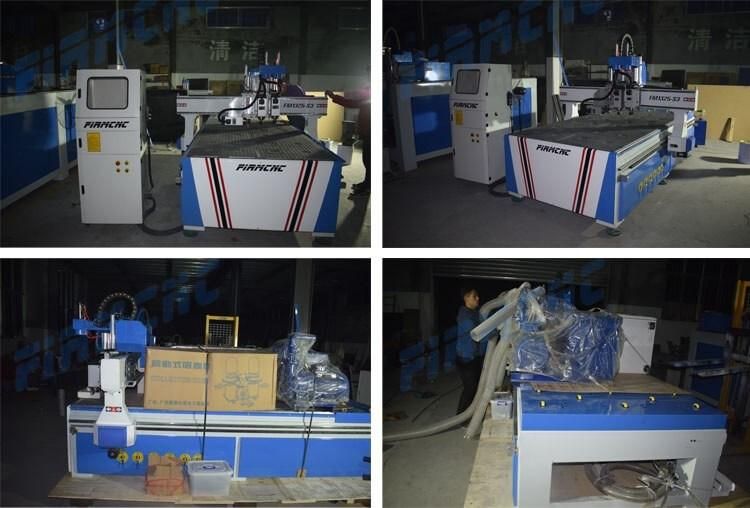

Packing & shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Services
1.Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
2.During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
3.After sale:
We would provide English Version working manual.
4.If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
5.Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.

FAQ:
1.Can you recommend a cnc router to me ?
Yes, In order to give you a suitable cnc router,pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.

Welcome contact us if you need the high quality machine, best price and the reassuring after sale service.
