• Model NO.：FM1325
• Customized：Non-Customized
• Condition：New
• Color：Blue
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Motor：Stepper,Servo
• Guide Rail：Hiwin Square Guide Rail
• Control System：DSP or Ncstudio Control
• Transport Package：Wooden Box
• Specification：CE SGS ISO
• Trademark：FIRM
• Origin：Jinan Shandong China
• HS Code：8465990000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM1325 Customized Non-Customized Condition New Color Blue Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Motor Stepper/Servo Guide Rail Hiwin Square Guide Rail Control System DSP or Ncstudio Control Transport Package Wooden Box Specification CE SGS ISO Trademark FIRM Origin Jinan Shandong China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

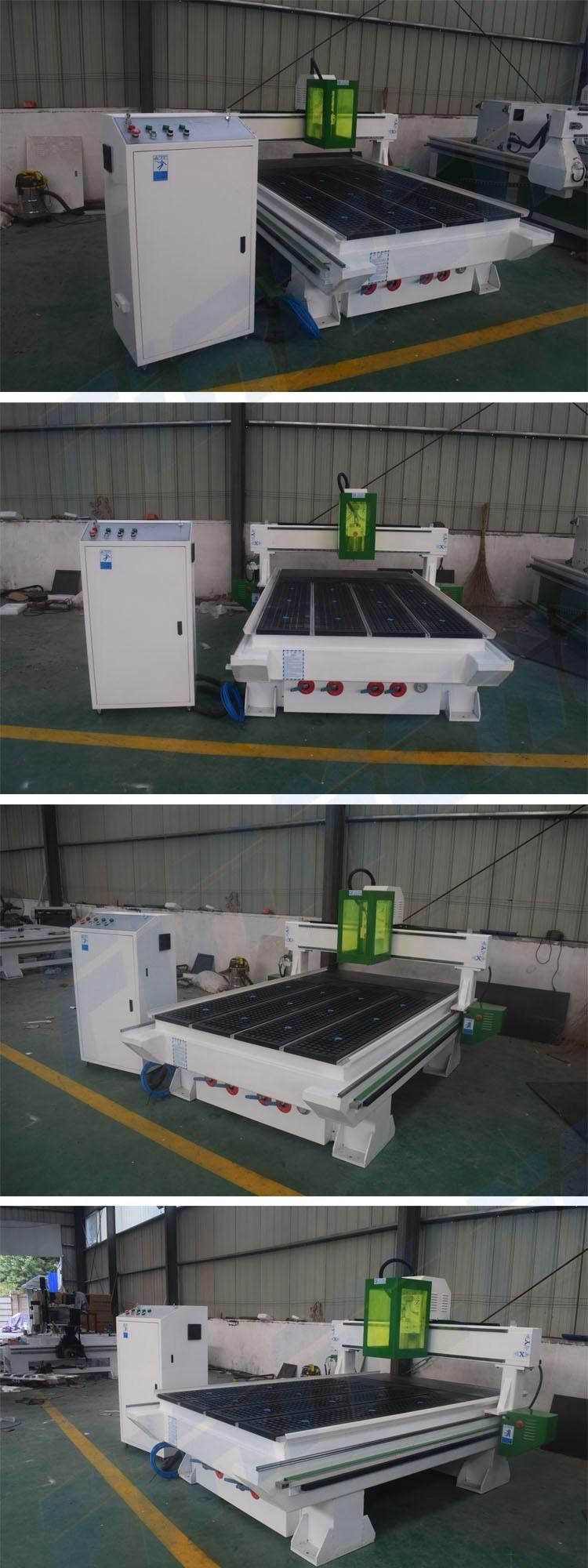

DSP controller 3 Axis 1325 Woodworking CNC Machine

FM1325 is the main products of Jinan Firm CNC Equipment Co., Ltd and widely used in furniture, industrial equipment parts, decoration, building models, advertisement...It can cutting and engraving materials including MDF, wood to make the cabinet door, solid wooden door, computer desk, assembling desk, it also can engrave on the HDF, wood board, acrylic, plan cutting, 3D embossment...

Features
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, Imported linear guide rails, running smoothly, high accuracy, long time service.
3. Gear wheel/ rack transmission, high precision, could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. The advanced professional control system compatible with many instruction format, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
6. All the spare parts are provided by most famous brand, with stable high quality.
7. It can do three-dimensional processing fast, smoothly, engraving or cutting.
8. Our software is compatible with type3/artcam/castmate/weitai and so on.
9. Through the CE quality authentication


Technical specification

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo  motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Main parts

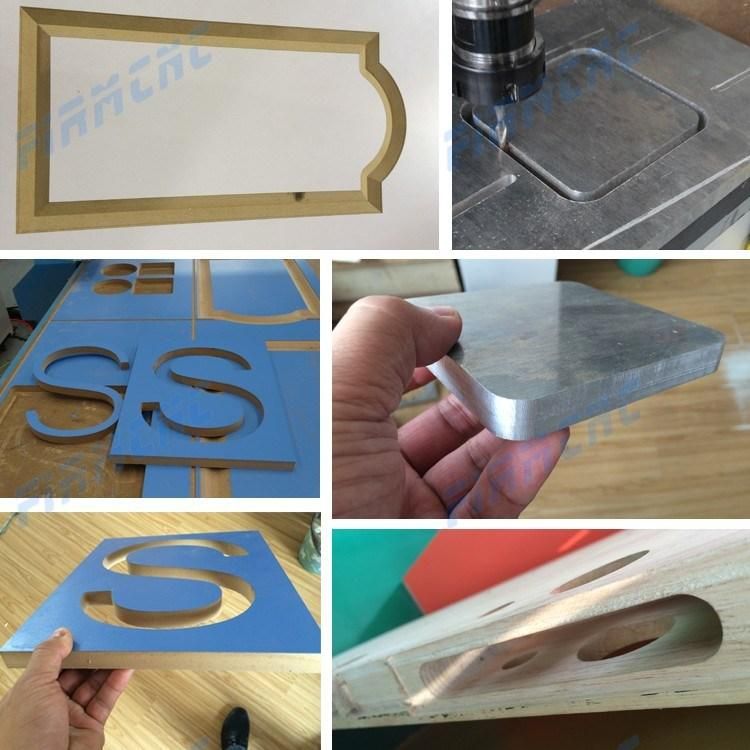

Applications:
It is widely used in the Small-scale woodworking industry, such as solid wood door engraving, MDF paint door carving, furniture processing.
In artwork industry, it can process wooden craft, musical instrument.
It can also used in the decorative doors and windows processing etc.
