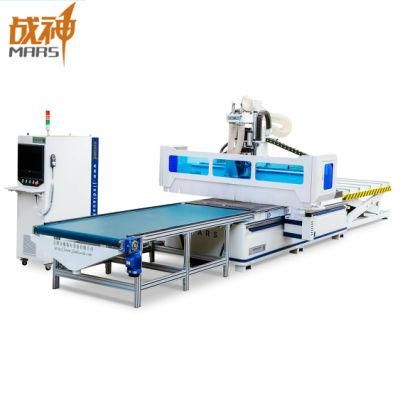

• Model NO.：XC400
• Specification：Working Area: 1300*2500*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1230*2450*200mmMachine Size2300*3600*1800mmWorking TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioningTable StructureDouble vacuum chamber absorption tableMainControl SystemShanlong control systemDrive SystemLeadshine 758 servo motor driveSpindle Motor Power6KW+4.5KW+4.5KW+4.5KW air cooling spindle; 0 ~ 24000 rpm/minOthersLubrication SystemAutomaticTransmissionXY axis rack and pinion, Z axis ball screwGuide RailTaiwan PMI/Hiwin rectangular linear railLimit switchJapan OmronVacuum Pump1*7.5KW double leaf vacuum pumpCableMARS cable, anti-static, anti-interference, bending resistanceMax Processing Speed30m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.05mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)

Accessories:

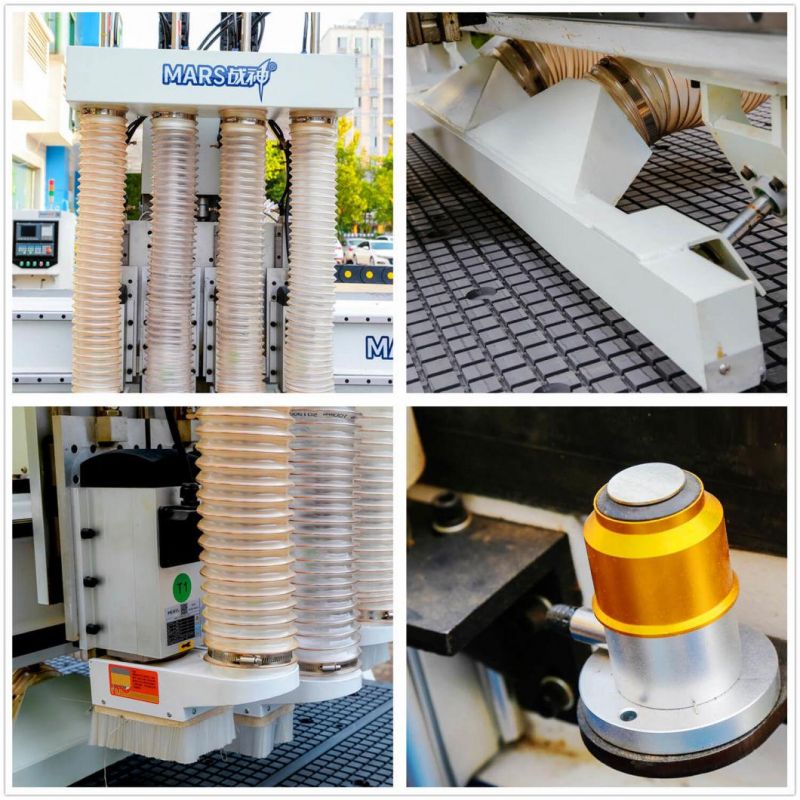

Performance Features:

1	Equipped with all the leading international brand components, Shanlong control system, Leadshine servo motor and driver
2	Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation
3	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
4	Advanced control system, easy to operation,fully support automatic production. It can automatically accomplish multi-layer 3D job, cutting, engraving, milling. Offline operation can be realized.
5	Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration
6	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area
