Sk2000 3 Axis Ball Screw and Disc Type CNC Machining Center

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition：New
  • Certification：ISO, CE
  • CNC or Not：CNC
  • Voltage：380V
  • Configuration：9kw Air Cooling Spindle
  • Transport Package：Wrapped in Layers of Wrapping Film and Ponchos

Base Info

  • Model NO.：SK2000
  • Specification：Working Area: 1220*2440*50mm
  • Trademark：Mars
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：3000 Sets,Year

Description

BasicX/Y/Z Axis Working Area1220*2440*50mmWorking TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioningTable StructureDouble vacuum chamber absorption tableMainControl SystemTaiwan Delta control systemDrive SystemTaiwan Delta servo motorSpindle Motor Power9KW air cooling ATC spindle; 0 ~ 24000 rpm/min






OthersTool MagazineTracking mode circular tools change, 16pcsLubrication SystemAutomaticTransmissionXY and Z(X3232 Y4040 Z2510) axis are full ball screw from TaiwanLimit switchMechanical touchVacuum Pump1*7.5KW vacuum pumpPositioning CylinderAutomatic positioning with automatic unloading systemBeamReinforced steel beamTravelling Speed48/60/15Max Processing Speed30m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.08mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)Net Weight3000KG

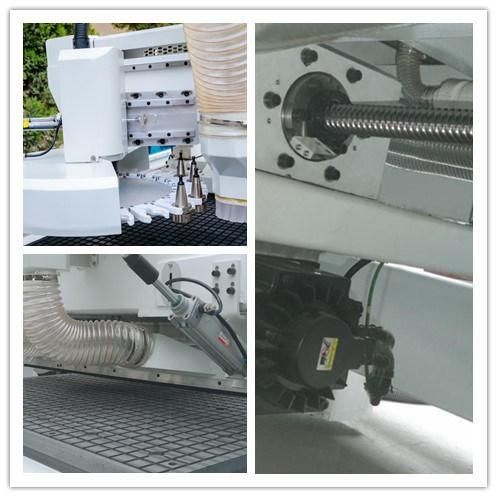

Accessories:
Sk2000 3 Axis Ball Screw and Disc Type CNC Machining Center

Performance Features:
1Equipped with all the leading international brand components, Taiwan ]Delta control system, servo motor and driver
29KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics
3Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
4Taiwan-made guide rail and ball screw, high precision, long service life, good stability
5Taiwan Delta control system, easy to operation,fully support automatic production
6All 3 axis ball screw drive can achieve much higher precision.
7Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area

Samples:
