• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300mm*2500mm
• Z Working Area：250mm
• Table：T Slot Table
• Processing Precision：0.005mm
• Control System：Nc Studio , DSP
• Power：5.5kw Spindle
• X,Y,Z Structure：X,Y,Z Ballscrew
• Command：G Code
• Max Processing Speed：6000mm,Min
• Motor：Leadshine Stepper Motor and Driver
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE, FDA, SGS
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW1325 Customized Customized Condition New Color Customized Working Area 1300mm*2500mm Z Working Area 250mm Table T Slot Table Processing Precision 0.005mm Control System Nc Studio / DSP Power 5.5kw Spindle X,Y,Z Structure X,Y,Z Ballscrew Command G Code Max Processing Speed 6000mm/Min Motor Leadshine Stepper Motor and Driver Transport Package Plywood Box, Free From Fumigation Specification CE, FDA, SGS Trademark DWIN Origin Jinan, Shandong, China HS Code 846599 Production Capacity 50 Sets Per Month

Product Description

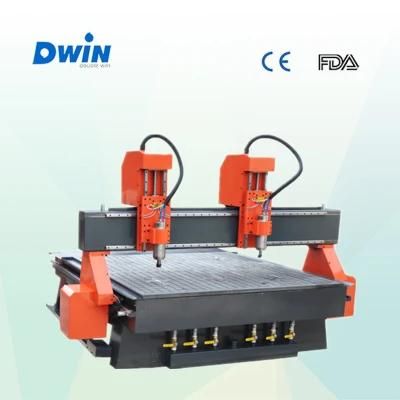

                                     1300x2500mm 5.5kw 6mm alumunum cutting machine ( DW1325 )




Feature:

1.X,Y,Z three-axis all the imported linear square orbit .
2.X,Y,Z three-axis all have the waterproof, dustproof system.
3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone.
4.Adopt Taiwan transducer with stable output signals.
5.Fully sgielded,bending circuity, and imported electronic components.
6.Adopt double drivers to drive y axis, motivity is more stronger.
7.Whole seamless steel structure,can load weight up to 1000kg.

Performance Features:
1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.

Applicable industry:
Quarried stone,artcraft,tombstone,building,etc.

Applicable materials:
Marble,glass,tile,granite,white marble,sandstone,metals,etc.

Technical data:

X,Y Working area :	1200mm*2400mm
Z Working area:	250mm
Resolution ratio:	0.005mm
Reposition precision	0.05mm
Spindle Power	3kw/4.5kw/5.5kw/6kw
Table structure	Aluminium
Operation code:	G CODE
Surrounding software:	Windows98/2000/xp
Max carving speed:	6000mm/min
Operation system	PCI CARD control
Working voltage:	AC380V/50Hz
X,Y,Z structure	X,Y,Z ballscrew
Spindle rotating speed	0-24000rpm/min
Drive motor	Stepper motor
