• Spindle：Water Cooling ,Air Cooling
• Driving Method：Taiwan Original Tbi Ball Screw
• Control System：Ncstudio,Mach3,DSP
• Motors：86byg-450b Stepper Motors
• Drivers：Ma860h Leadshine Drivers
• Standard Software：Artcam 2010
• Spindle Speed：0-24000rpm,Min
• Whole Structure：Cast-Iron Structure
• Table Style：Aluminum T-Slot Table with PVC
• Guide Rail：Round Guide Rail,Hiwin Linear Square Guide Rail
• Power：1.5 Kw,2.2kw,3.0kw
• Transport Package：190*130*173cm 420kg
• Specification：170*110*135cm
• Trademark：litianzhiyuan
• Origin：China
• HS Code：8465990000
• Production Capacity：600

Model No.

LT-6012 Wood CNC Router

Table Size

600mm*1200mm

Max. feeding height of Z axis

200mm

Table Structure

Aluminum table with T-slot

Machine body

Cast-iron

X Y Z axis Transmission

TBI Ball Screw

X Y Z Guide rail

Round Guide Rail

Spindle Power

1.5kw water cooling spindle

Max.Spindle Speed

24000 rpm/min

Max. Traveling Speed

7000mm/min

Max. Working Speed

7000mm/min

Processing Accuracy

±0.025mm

Reposition Accuracy

≤0.025mm

Driving System

Leadshine drivers

Command Language

HPGL, G Code

Control System

NCSTUDIO/MACH3/DSP

Working Voltage

AC110/220V, 50/60HZ

Net Weight/Gross Weight

420KGS

Package Dimension

1900*1300*1530mm

Optional part :

1.2.2kw/3.0kw water cooling spindle

2.Mach3 control system

3.Hiwin linear square guide rail

4.Water cooling system with water tank

5.Rotary axis 80mm,100mm,150mm

6.Vacuum table with vacuum pump


Sample

Cnc router 6090 has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.

Guarantee & After Sales Service

1.Two years quality guaranty for the machine and online service everyday day, free

technical support. .

2.Free training to guarantee you can operate machine correctly.

3.We will provide the consumable parts at an agency price when you need replacement.

4.Machine has been adjusted before delivery

5.Our staff can be sent to your company to install or adjust if necessary

6.The processing demo video and E-catalogue will be mailed as your request.

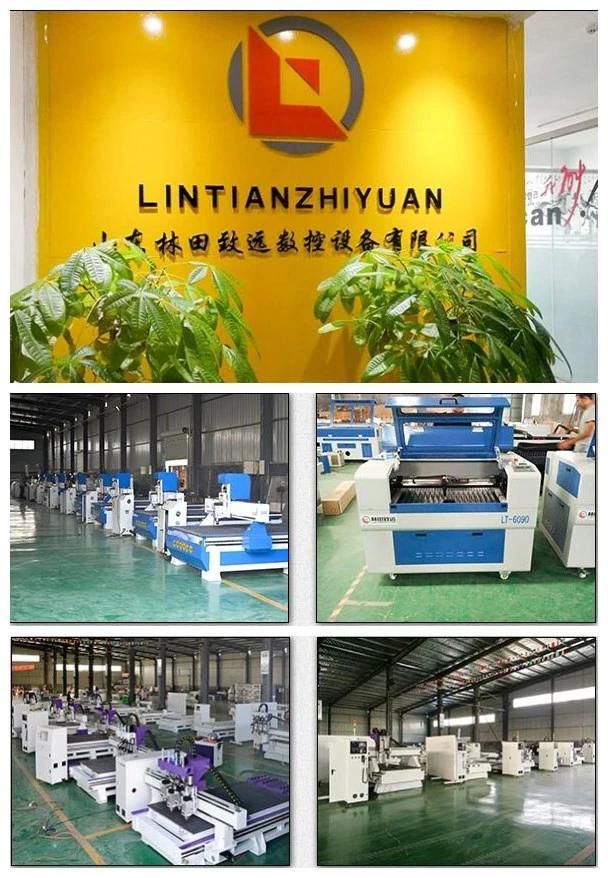

Jinan LintianzhiyuanCNC Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong.
