• Model NO.：RMB420
• Process Type：Heavy Processing
• Certification：CE
• After-sales Service：1 Year
• Feeding Speed：5-35m,Min
• Air Pressure：0.4-0.6MPa
• Transport Package：Soft Packing & Plywood Packing
• Specification：RMB420
• Trademark：SAMACH
• Origin：China
• Production Capacity：300sets,Month

Basic Info.

Model NO. RMB420 Process Type Heavy Processing Certification CE After-sales Service 1 Year Feeding Speed 5-35m/Min Air Pressure 0.4-0.6MPa Transport Package Soft Packing & Plywood Packing Specification RMB420 Trademark SAMACH Origin China Production Capacity 300sets/Month

Product Description

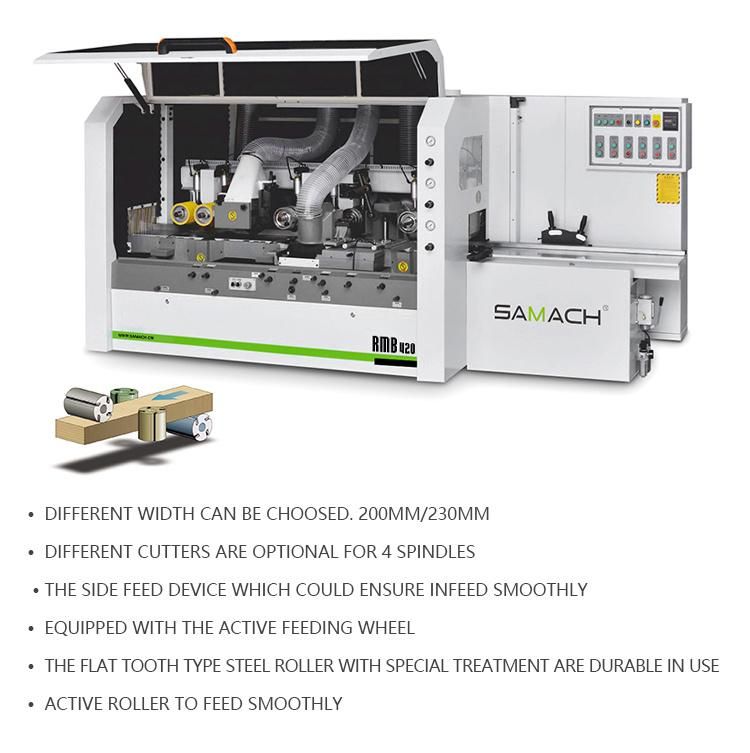

High Efficiency Four Sides Moulder Wood Planer Machine

Model	RMB416	RMB420	RMB423
Work Width	20-160mm	20-200mm	20-230mm
Work Thickness	8-120mm	8-120mm	8-120mm
Feeding Speed	5-35m/min	5-35m/min	5-35m/min
Cutter Shaft Diameter	Ф40mm	Ф40mm	Ф40mm
Cutter Shaft Speed	7000r/min	7000r/min	7000r/min
Air Pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
The First Lower Shaft	4kw/5.5HP	5.5kw/7.5HP	7.5kw/10HP
The First Upper Shaft	5.5kw/7.5HP	7.5kw/10HP	11kw/15HP
Right Side Spindle	4kw/5.5HP	5.5kw/7.5HP	7.5kw/10HP
Left Side Spindle	4kw/5.5HP	5.5kw/7.5HP	7.5kw/10HP
Feeding Motor	3kw/4HP	4kw/5.5HP	4kw/5.5HP
Feeding Lifting Motor	0.75kw/1HP	0.75kw/1HP	0.75kw/1HP
Total Power	21.25KW	28.75KW	38.25KW
First Lower Shaft	Ф125mm	Ф125mm	Ф125mm
First Upper Shaft	Ф125-Ф160mm	Ф125-Ф180mm	Ф125-Ф180mm
Right Side Spindle	Ф125-Ф160mm	Ф125-Ф180mm	Ф125-Ф180mm
Left Side Spindle	Ф125-Ф160mm	Ф125-Ф180mm	Ф125-Ф180mm
Feeding Wheel Diameter	Ф140mm/Ф120mm	Ф140mm	Ф140mm
Dust Collect Diameter	Ф150mm	Ф150mm	Ф150mm
Weight	1500kg	2500kg	2800kg
Dimensions	3000*1500*1600mm	3500*1600*1800mm	3640*1600*1800mm

1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
