• Model NO.：MJDT2013
• Precision：High Precision
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Online Support
• Cutting Speed：25-35m,Min
• Max Cutting Section：200 X 137mm
• Max Feeding Speed：60m,Min
• Saw Blade Diamter：500mm
• Max. Cutting Length：7000mm
• Transport Package：Wood Case
• Trademark：STX
• Origin：China
• HS Code：846591
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. MJDT2013 Precision High Precision Certification CE Customized Customized Condition New Color Customized After-sales Service Online Support Cutting Speed 25-35m/Min Max Cutting Section 200 X 137mm Max Feeding Speed 60m/Min Saw Blade Diamter 500mm Max. Cutting Length 7000mm Transport Package Wood Case Trademark STX Origin China HS Code 846591 Production Capacity 2000 Sets/Year

Product Description

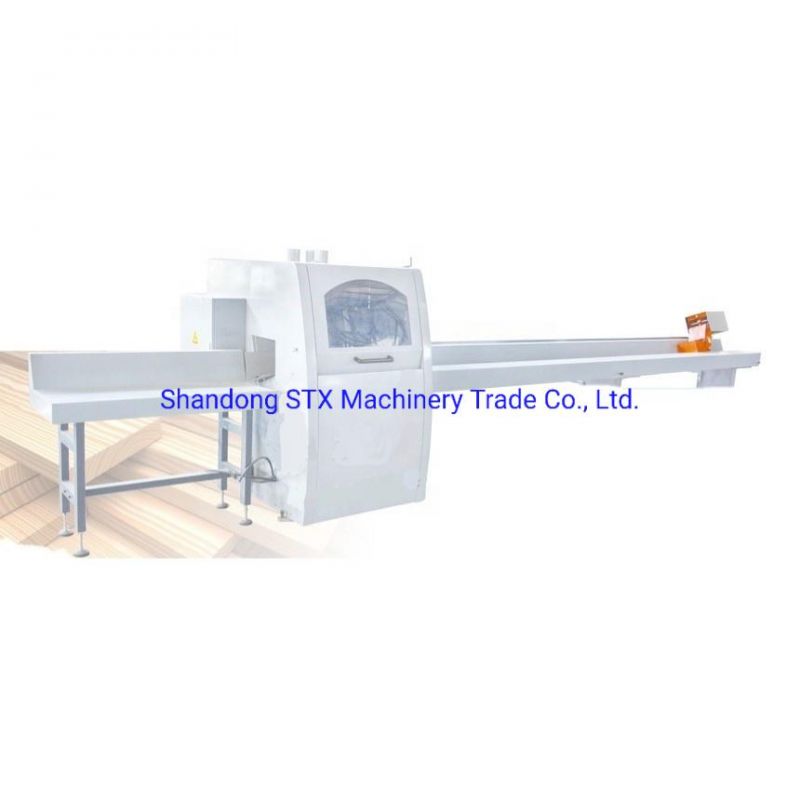

High Precision Labor Saving Optimizer for Wood Bundle Cutting

Characteristics

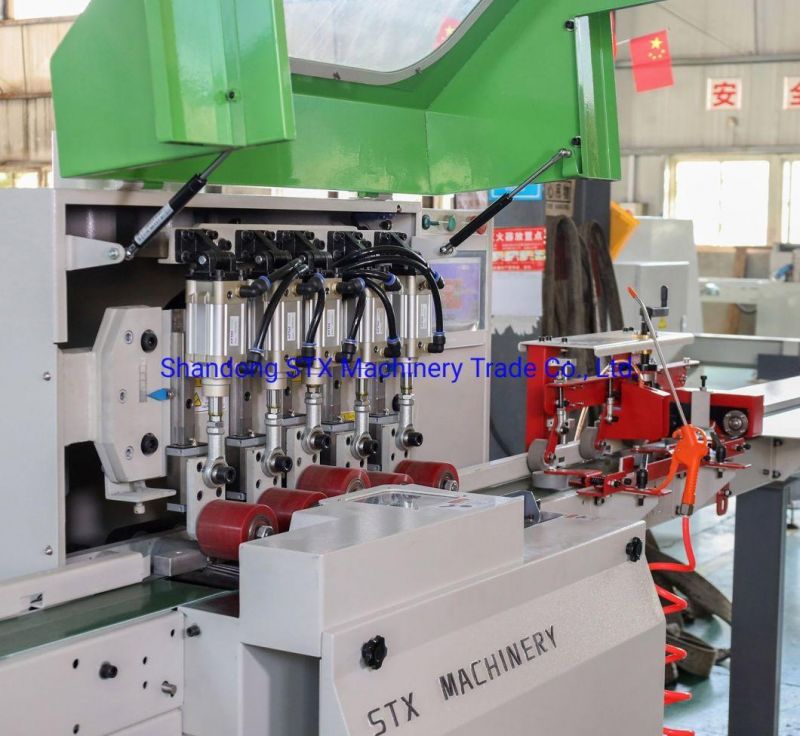

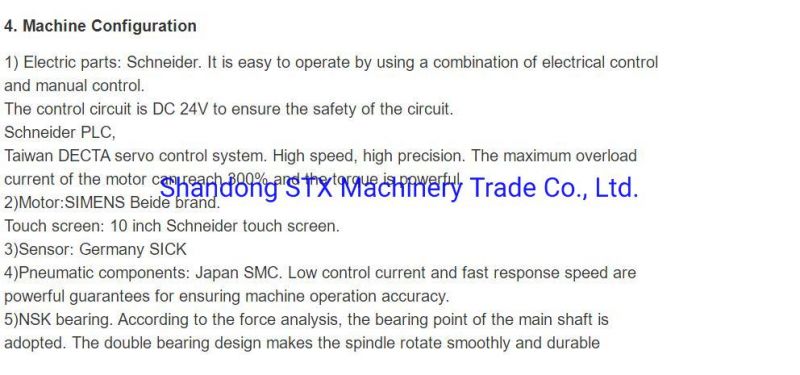

MJDT2013 pusher cross-section optimization saw, used for high-precision fixed-length, large-volume solid wood cross cutting, with the characteristics of high accuracy, high speed and large daily processing capacity. All electronic components of the equipment are international brands. The control unit and accessory components are purchased from French brand Schneider, the servo motor is Taiwan Delta, and the cylinder is Japanese SMC. The high-quality components ensure the efficient and stable operation of the equipment.
1. Stable and efficient- The saw unit is controlled by servo motor, 4-5 times efficiency of manual cut.

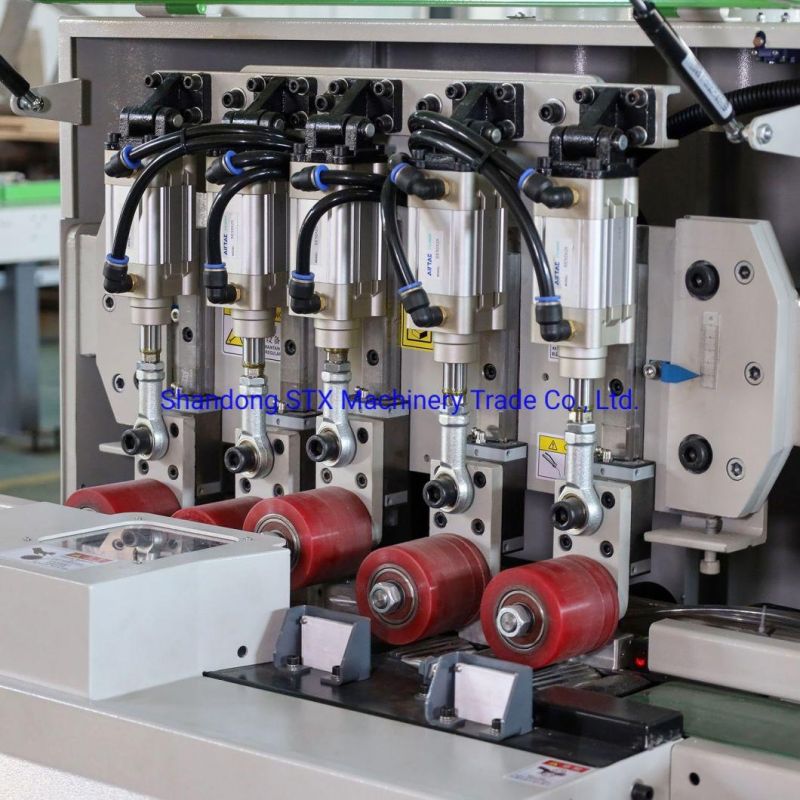

2. High precision-High quality sensor and pneumatic components to make sure cut tolerance within 0.1mm, and also can save profiles.
(Sensor:Germany Sick and Leuze. Pneumatic components: Japan SMC)

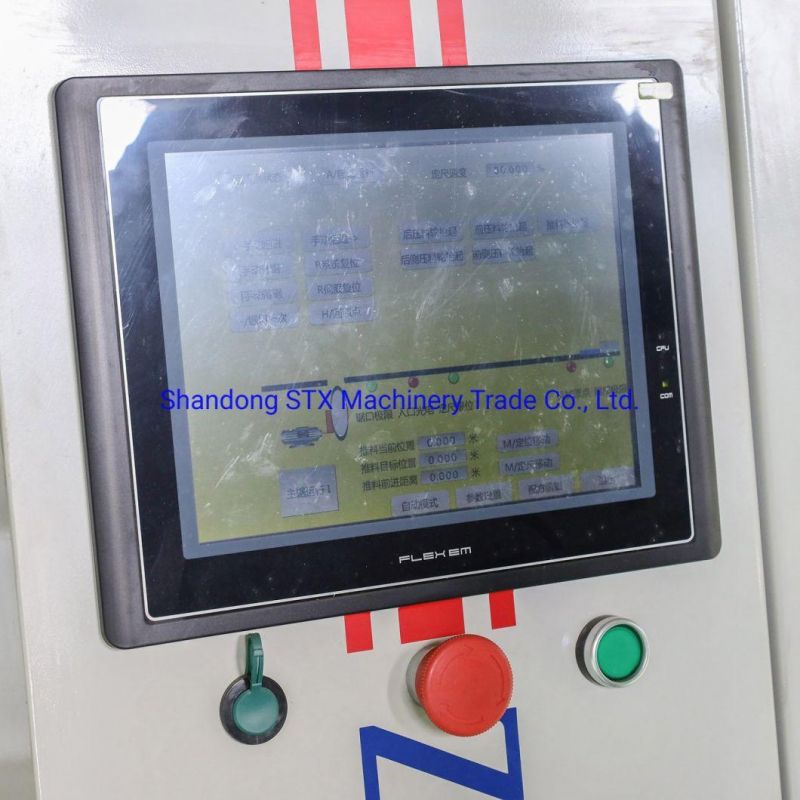

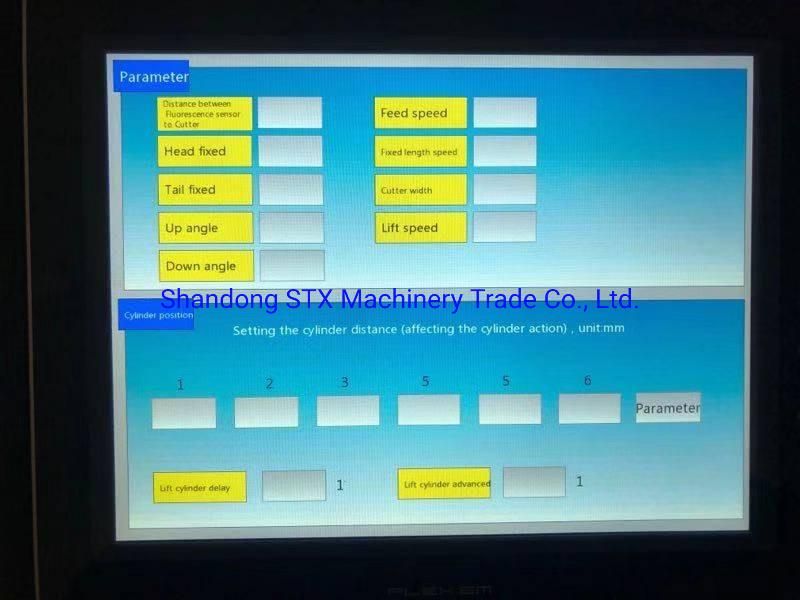

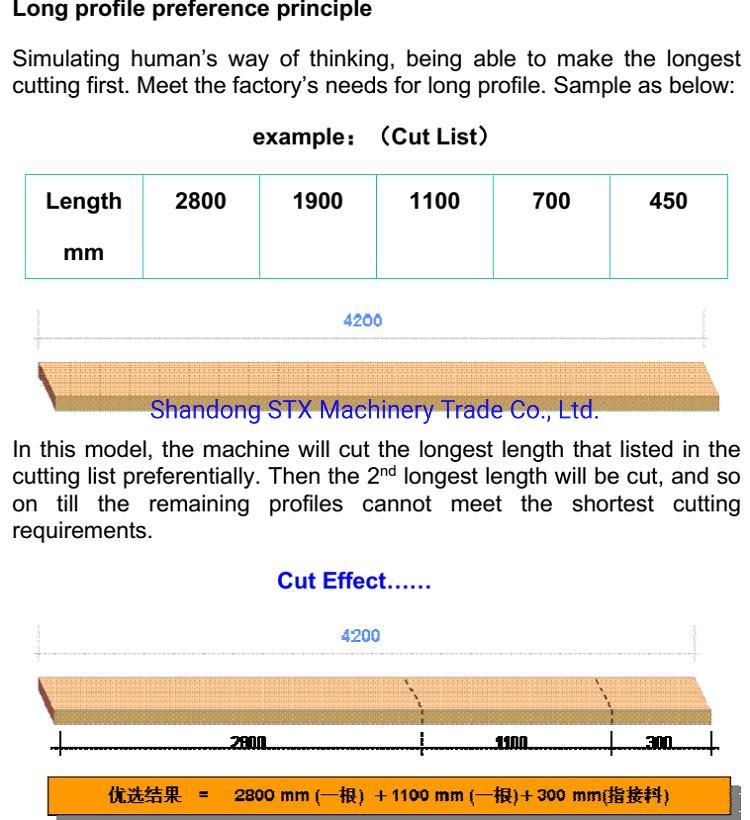

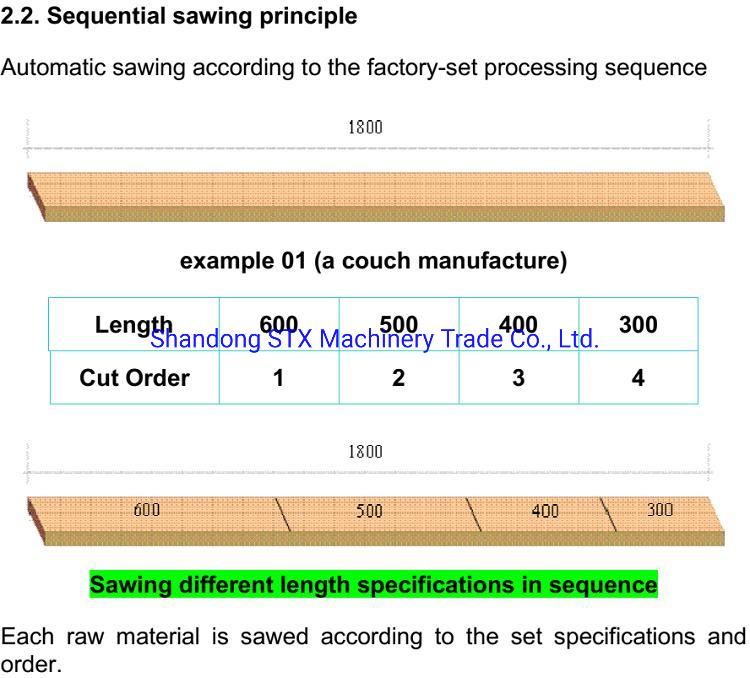

3. Adopt CNC system to select and optimize wood profile and select profiles according to requirements ro select profile can Improve wood grade and utilization.
4. Safety: Workers are far from the saw blade to avoid the risk of injury.
5. Low maintenance costs: Adopt worldwide top quality electric and pneumatic components, low failure rate.
6. Remote control via the Internet allows for quick troubleshooting, adjustment of settings, and cost savings and time for customers.



Technical Parameters



Model	MJDT2013
Max feeding speed	60m/min
Saw blade motor power	5.5kw
Saw blade lifting servo motor power	4.5kw
Pushing servo motor power	0.4kw
Saw blade diameter	500mm
Max. cutting length	7000mm
Saw blade diameter	500mm
Max. cutting section	200*137mm
Machine dimension	9855*1620*1615mm
Machine weight	1500kg
