Woodworking Machinery

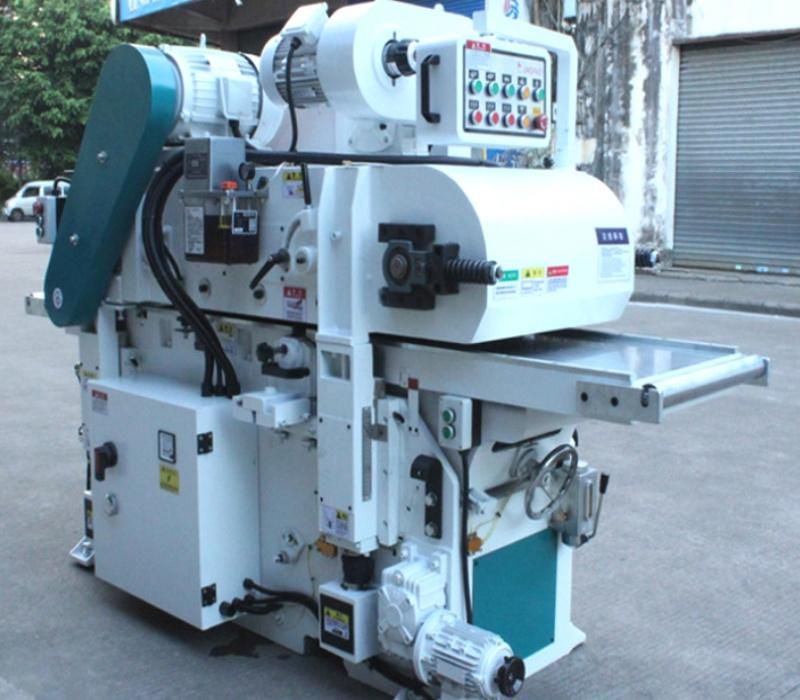

MB206 Woodworking Double Side Planer Wood Thickness Planer

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Warranty:12 Months
  • Type:Double-sided Pressure Planer
  • Working Depth:120mm
  • Working Width:430mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:MB206HL
  • Motor Power:5-10Kw
  • Cutter Shaft:3
  • Spindle Speed:5000r,Min
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • Name:Double Sided Planer
  • Model:MB204hl
  • Working Thickness:120mm
  • Min Working Length:260mm
  • Blade Diameter:101mm
  • Feeding Speed:4-16m,Min
  • Feeding Motor Power:2.2kw
  • Weight:2060kg
  • Color:as Required
  • Certificate:CE
  • Structure:Heavy Duty
  • Top Spindle Motor:7.5kw
  • Bottom Spindle Motor:5.5kw
  • Feeding Motor:2.2kw
  • Lifting Motor:0.37kw
  • Transport Package:Wooden Case
  • Specification:2500*1800*1600m
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month

Description

modelMB204MB206working width430mm630mmworking thickness120mm150mmmin working length260mm260mmblade diameter101mm101mmspindle speed5000r/min5000r/minfeeding speed4-16m/min6-26m/minmotor power7.5kw/5.5kw15/11kwfeeding motor power2.2kw4kwweight2060kg2800kg

Double Side Planer Features
1.With good shock absorption, stability of iron casting lathe and CNC machining center it can process all materials      once and provide a good basis for knife spindle and feeding.
2.The main spindle is processed specially and the other imported spindles with high precision can well support the whole machine.
3.With elastic pedrail scratcher (optional in lift functions), the pressed distance of the elastic scratchers can be chosen according to the thickness and bending degree of the wood so as to increase the machining accuracy and strengthen the feeding power.
4.The knife spindle, pressing roller and stable feeder on the lathe with manual and automatic adjustable structure make sure the orientation more rapid and accurate.
5.Imported electrical components keep the whole machine works fast and safely. H-shaped series of products are equipped with imported numerical display unit; The processing thickness can be controlled directly on operation panel. The Precision can be up to 0.1mm and the feeding speed can be adjusted.
6.The worktable is processed specially to become more wearable.
MB206 Woodworking Double Side Planer Wood Thickness Planer

MB206 Woodworking Double Side Planer Wood Thickness Planer
MB206 Woodworking Double Side Planer Wood Thickness Planer
MB206 Woodworking Double Side Planer Wood Thickness Planer
Application
Mainly used for processing wood square, board, adornment wood line, top and down sides for planing light treatment.
MB206 Woodworking Double Side Planer Wood Thickness Planer

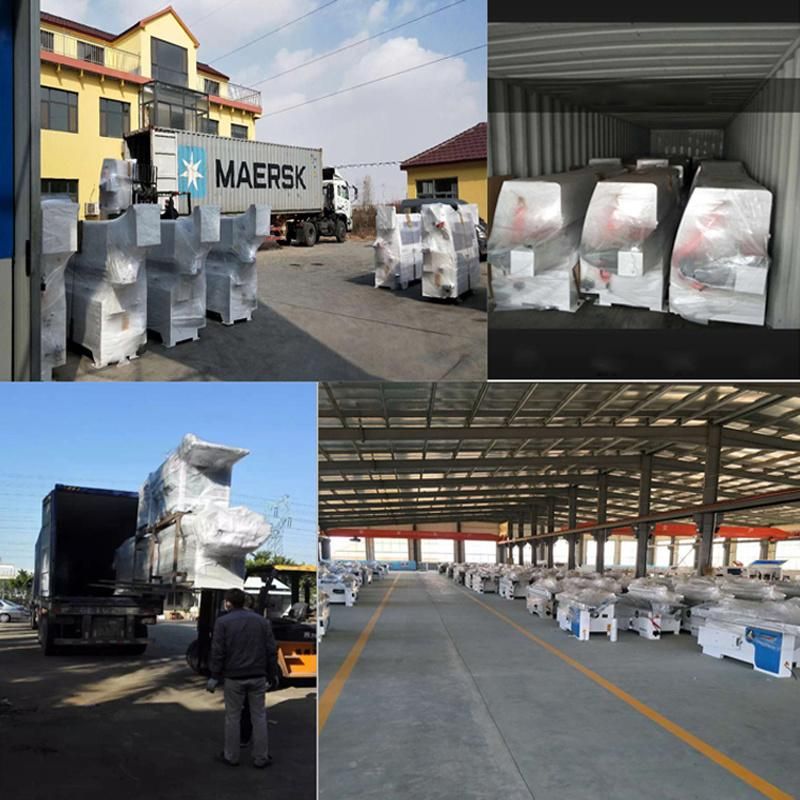

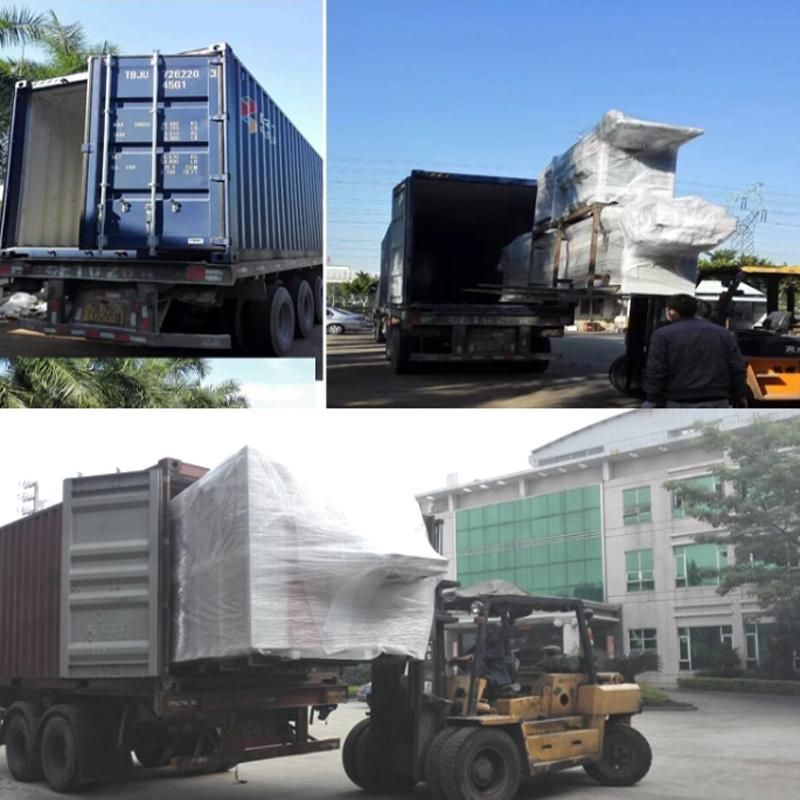

Packaging & Shipping
MB206 Woodworking Double Side Planer Wood Thickness Planer
MB206 Woodworking Double Side Planer Wood Thickness Planer
Company Information
MB206 Woodworking Double Side Planer Wood Thickness Planer
MB206 Woodworking Double Side Planer Wood Thickness Planer

FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.


3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
