Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

Jinan Starma Intelligent Tech Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:220V
  • Name:Oscillating Knife CNC Router
  • Model:Sm-C1325K

Base Info

  • Structure:8mm Steel Tube Welded
  • Control System:Original Weihong Control System
  • Table:Vacuum Adsorption Table with 5.5kw Vacuum Pump
  • Motor:Yako S3 Servo Motor
  • Driver:Yako S3 Servo Driver
  • Inverter:Best or Fulling Inverter 3.7kw
  • Oil:Automatic Lubrication
  • Spindle:3.2kw Water Cooling+CCD+Oscillating Knife
  • Square Rails:20 Taiwan Original Hiwin
  • Control Box:Independent
  • Precision:0.01mm
  • Square Rail:Xy: Xinyue Oblique Gear Rack, Z:Tbi Ballscrew
  • Weight:1800kgs
  • Transport Package:Standard Export Plywood Case Packing
  • Specification:1300*2500*200mm
  • Trademark:STARMACNC
  • Origin:Jinan, China
  • HS Code:8465990000
  • Production Capacity:80 Sets Per Month

Description

NoDescriptionParameter1X,Y,Z Working Area1300x2500x200mm oscillating knife cnc router2X,Y,Z Traveling Positioning Accuracy±0.02mm3X,Y,Z repositioning Accuracy ±0.01mm4Table SurfaceVacuum adsorption table with 5.5kw vacuum pump5FrameHeavy duty Square pipe Welded Structure 8mm6X, Y axis transmissionPrecision oblique xinyue gear rack7Z axis transmissionTaiwan TBI 2510 ballscrew8Max. Travalling speed 80000mm/min9Max. Working Speed25000mm/min10Spindle Power MotorProfessional 3.2kw water cooling spindle+CCD+oscillating knife11Spindle speed0~24000rpm/min12Drive MotorsYako S3 servo13Working VoltageAC220V/50/60Hz,1PH (Option: 380V)14InverterBEST or Fulling 3.7kw (Delta can option)15Command LanguageG code16Operating SystemOriginal weihong control system17Max. Power Consumption10kw18ColletER2019InterfaceUSB20Flash Memory128M( U Disk)21X,Y Resolution<0.01mm22Software CompatibilityArtcam,type3,Ucancam,etc23Running EnvironmentTemperature: 0ºC~45ºC
Relative humidity: 30%~75%24Weight1800kgs25Packing size3.2*2.1*1.75m26Delivery time(DAYS)1-1set           2-3 sets               4-5 sets              >6 sets20                   35                        45               To be negotiation

  1. Original weihong controller                               2. 3.2kw water cooling spindle+CCD+oscillating knife

   3.Anti-electromagnetic tool sensor                      4.Yako S3 servo motor and driver

   5.20x20cm big square tube weld structure          6.Linear type tool magazine


Advantage For The CCD cnc:

  • cnc router machine size can customized according to your material .

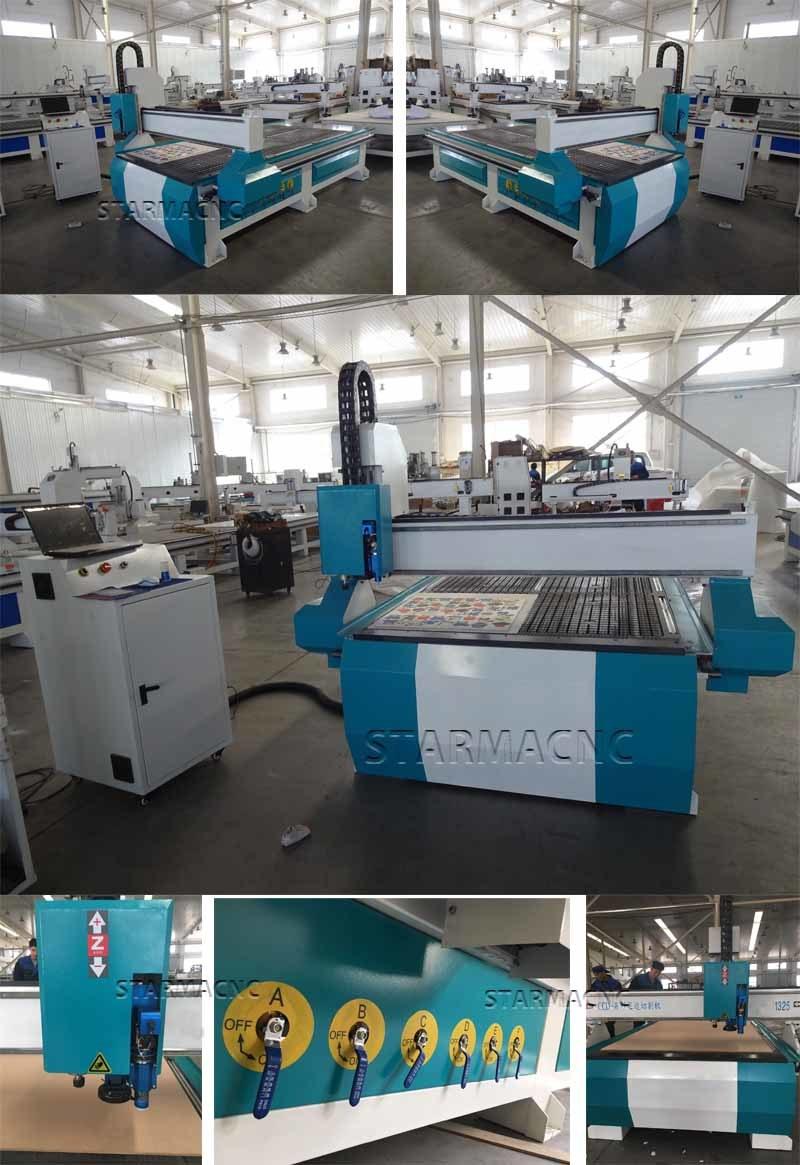

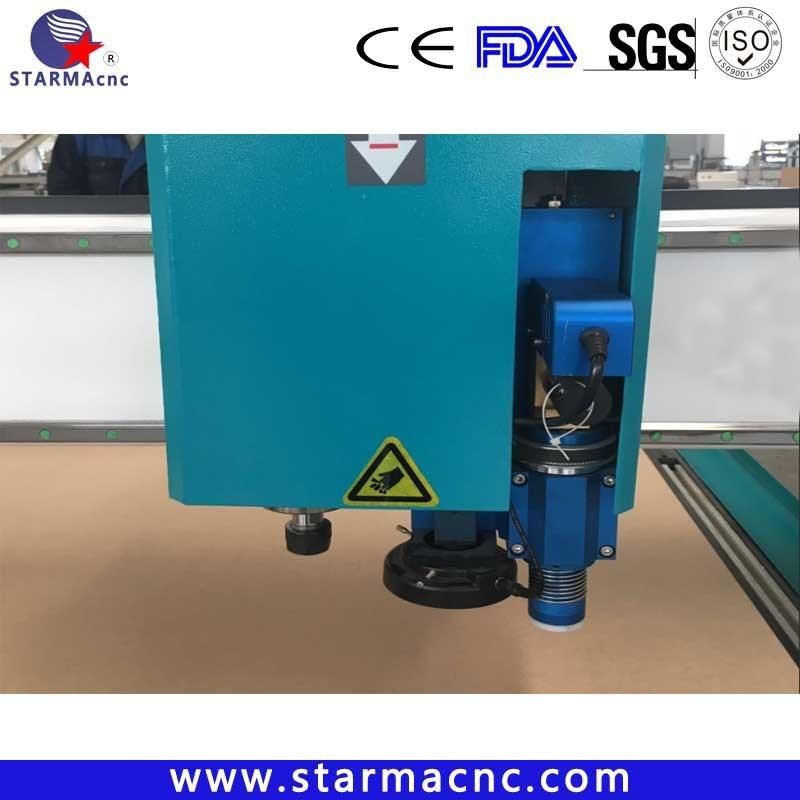

    -------Machine Details-------

    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router
    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

    CE approved Oscillating knife + CCD 1325 china best atc cnc router

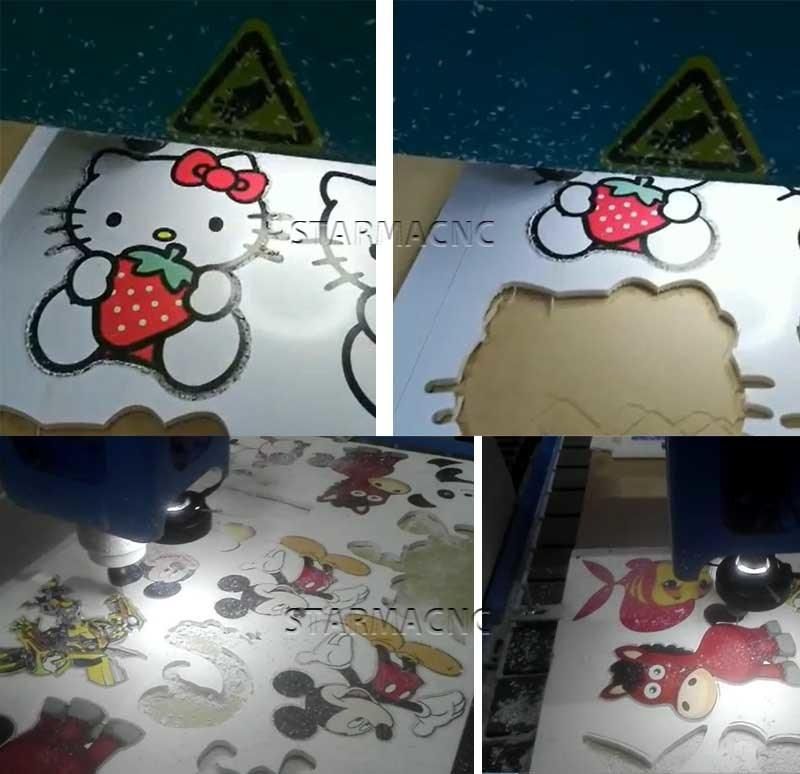

    -------Application-------

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

    Relief sculpture and 3D engraving and Cylindrical object.
    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

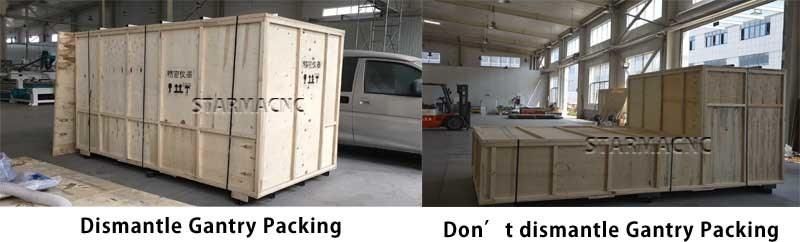

    -------Packing and shipping-------

    We have 3 layers package.
    or the outside, we adopt free fumigation wood craft case.
    In the middle, the machine is covered by foam, to protect the machine from shaking.
    For the inside layer, the machine is covered by thickening plastic bag for waterproof.

    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

    CE approved Oscillating knife + CCD 1325 china best atc cnc router

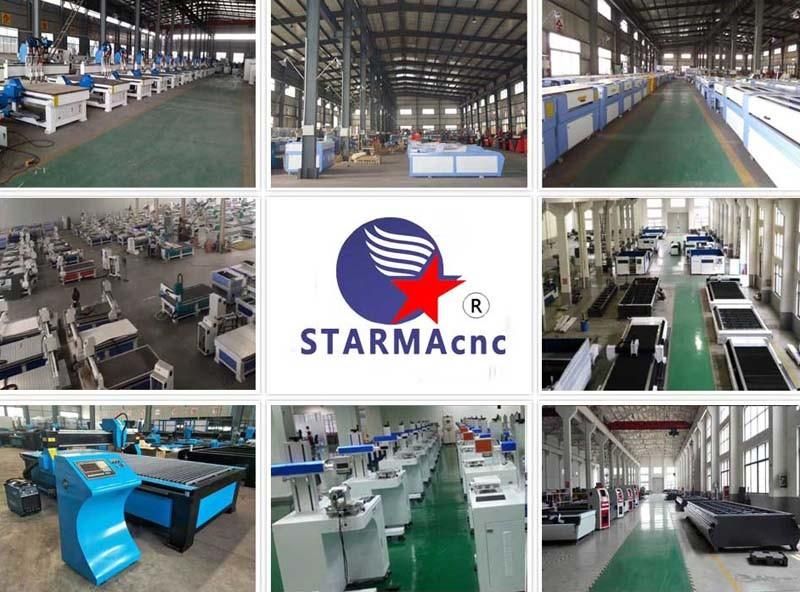

    -------Company information-------

    Jinan Starma Machinery Equipment Co.,Ltd. Build from 2010 years and lived in Jinan city, Shandong province,China. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine. To the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE UL FDA certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.

    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

    -------Customer visit-------
    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

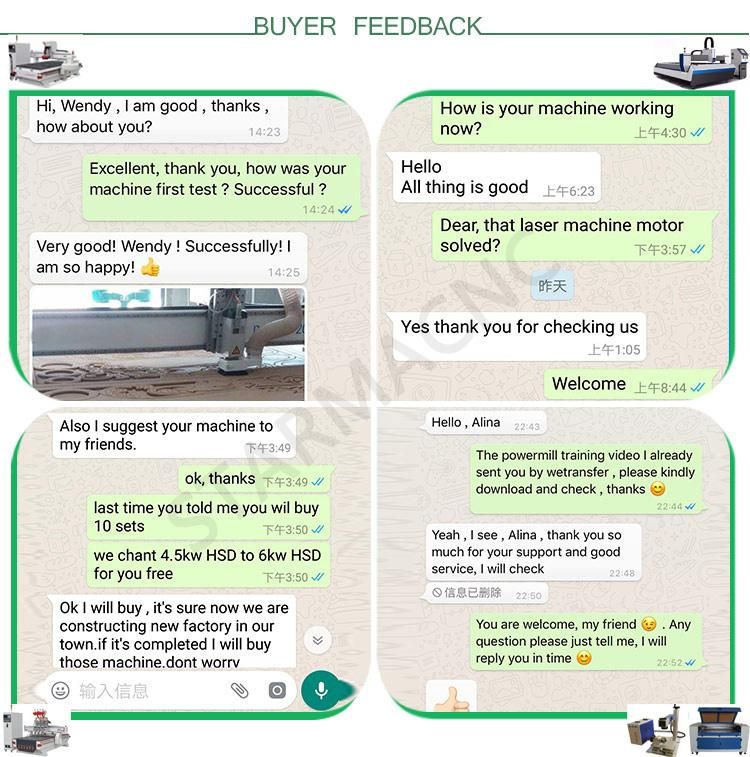

    -------Our certificate & feedback from client-------
    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router


    Ce Approved Oscillating Knife + CCD 1325 China Best Atc CNC Router

    -------Our service-------
    Before sale:

    We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
    During sale:
    We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here.
    After sale:
    We would provide English Version working manual.
    If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
    Machine warranty is 12 months.So if your machine has any unintentional damages,we would provide parts for free.
    If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
    our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

    -------FAQ-------
    1. What is the Payment Terms for this cnc router?

    Re: Alibaba Trade Assurance ,T/T , Western Union, Paypal,L/C

    2. How do you delivery the machine?

    Re: By sea,By rail,By land

    3. What about the delivery time?

    Re: 12-18 working days for this wood cnc router .

    4. What's your warranty?

    Re: 1 year warranty for cnc router machine.

    5. Do you offer clinical training?

    Re: Yes. We can provide training in our factory or in your country.

    6. Do we have the discount if buy more?

    Re: We have favorable prices for agents. Welcome you to become our long-term business partner.
