1530 CNC Wood Turning Lathe Machine with Carving
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type：Single-Axis Automatic Lathe
- Voltage：380V
- Tool Holder：Double-tool Holder CNC Lathe
- Automatic Grade：Automatic
- Precision：High Precision
- Setting Mode：Table
Base Info
- Model NO.：GJH 1530
- Controlling Mode：CNC
- Power Source：Electric
- Processing Accessory：Chuck CNC Lathe
- Certification：CE, SGS
- Running Mode：Stepper
- Control System：Guangxingkai
- Application：Woodworking
- Transport Package：Plywood Case
- Specification：GJH 3015
- Trademark：GJH
- Origin：Shandong China
- HS Code：84659900
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. GJH 1530 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, SGS Running Mode Stepper Control System Guangxingkai Application Woodworking Transport Package Plywood Case Specification GJH 3015 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per MonthProduct Description
1530 Wood Lathe

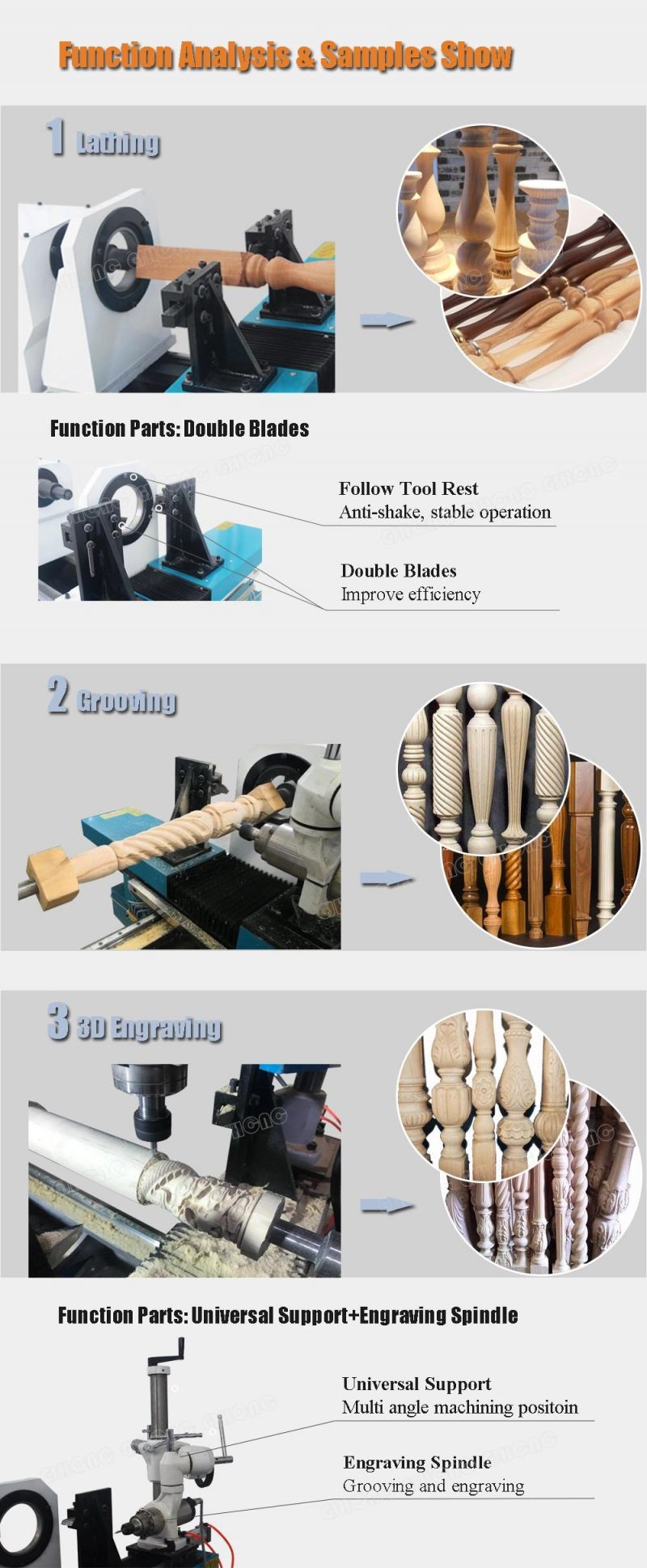

Lathing, Grooving and Engraving
Machines are avaliable!
1.Mode GJH 1530 wood lathe machine is specially designed for woodworking.It has high precision, fast speed, cost-effective.

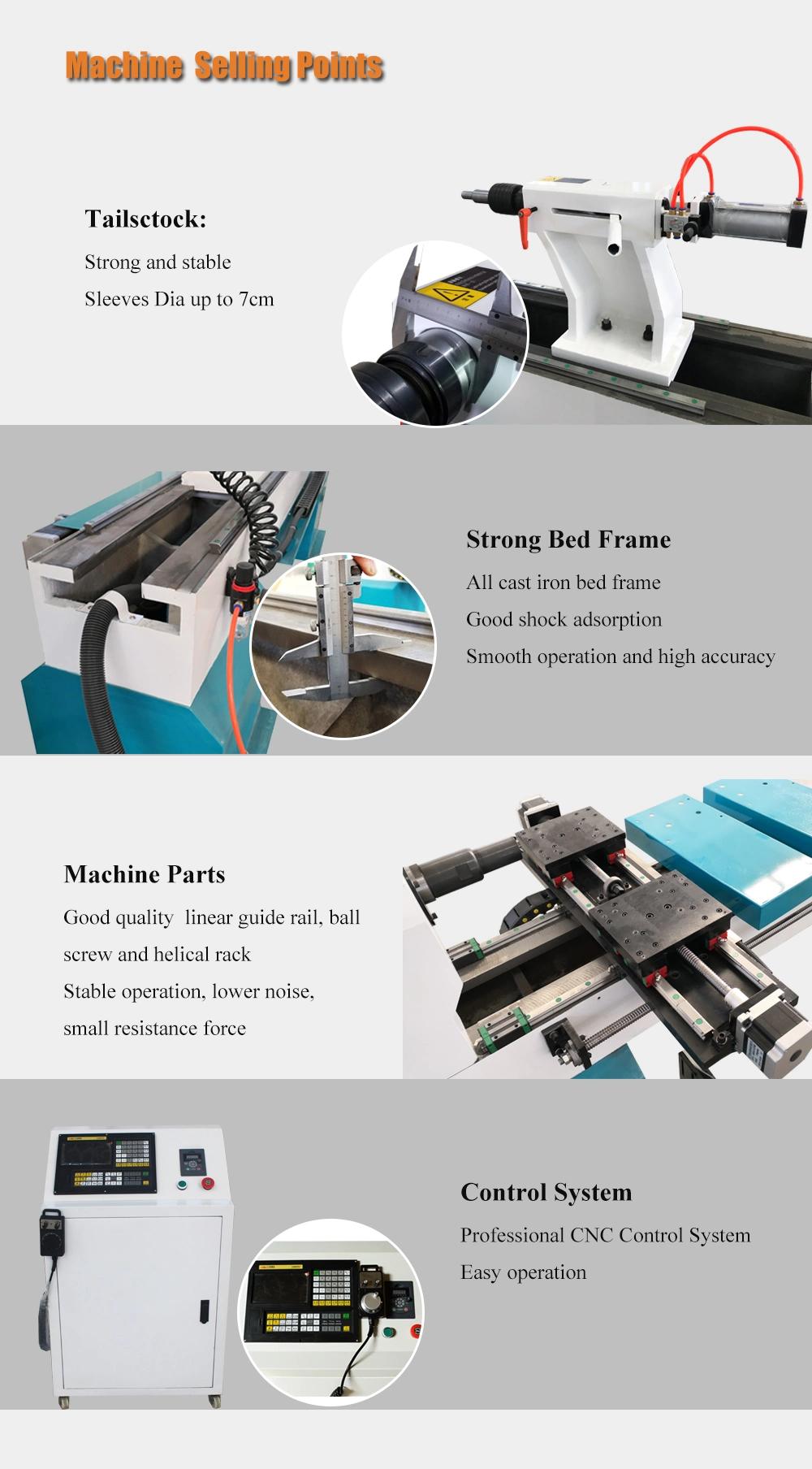

2.Strong lathe bed, thickness of cast iron reaches 27mm, with good stability
3.The center supporter prevents the shaking of slender wood during processing.
4.High Class frequency converter with high stability
5.Compatible with several CAD/CAM design software, easy operation.
1.CNC wood Turning lathe mainly for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column,washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
| Processing Material: | Rotary Wood |
| Max Working Length: | 1500 MM |
| Max Working Diameter: | 300MM |
| Control System: | Guangxingkai Control System |
| Frequency Converter: | Middle Drive |
| Bed structure: | Heavy integral casting |
| Driving mode: | High precision ball screw |
| Guideway Drive: | 25 Linear Guide rail 25 Flange Slider |
| Power Spindle: | 4 Kw pure copper three-phase asynchronous motor |
| Power Spindle speed: | 0-2800 Rpm |
| Engraving Spindle: | 2.2Kw, Air-cooling, |
| Engraving Spindle speed: | 0-24000 Rpm |
| Operating Voltage: | 3-phase 380V Voltage |
| Main Functions: | Car Modeling |
If you have specific requirement for CNC wood turning lathe, customization is available.
