• Model NO.：LT-1212
• Product Keyword：4 Spindles 1212 CNC Router Machine
• Working Area：1200*1200*200mm
• Spindle：1.5kw Water Cooling Spindle*4
• Table Surface：T-Slot Table or Vacuum Table
• Control System：Ncstudio,Mach3 Control System
• Motors and Drivers：Stepper Motor 450b and Leadshine Drivers Ma860c
• Guide Rail：Hiwin Square Linear Guide Rail
• Transmission：X, Y, Z Axis by Tbi Ball Screw
• Bed Structure：Welded Steel Tube Bed Structure
• Inverter：Fuling Inverter
• Software：Artcam,Type3
• Transport Package：Plywood Case
• Specification：1850*1900*1650mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

ModelLT-1212 advertising cnc router machine

Effective working area

1200*1200*200mm

Bed structure

Welded steel tube bed structure

Table style

Aluminum T-slot table with PVC or vacuum table with vacuum pump

Guide rail

Hiwin square linear guide rail

Driving method

Taiwan Original TBI Ball screw for X,Y,Z axis

Spindle

1.5KW water cooling spindle

Invert

Fuling invert

Collect size

ER16

Spindle speed

0-24000rpm

Motors and drivers

86BYG-450B stepper motors and MA860H Leadshine drivers

Control system

Ncstudio control system

Working Accuracy

<0.03/300mmWorking speed<7000mm/minTraveling speed 0-7000mm/min Instruction formatG code *.u00 *.mmg *.pltWorking voltageAC220V, Single Phase, 50-60HzStandard SoftwareArtcam 2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD or other CAM/CAD softwareEnvironment temperature0-45ºCEnvironment humidity30%-75% No coagulate water Too sensorYesOthersEnglish manual,Tool box,Tool sensor,etc.Optional parts1,Dust collector
2,Rotary axis for engraving round wood:price depends on its diameter
3,2.2kw water cooling spindle
4,Water tank for cutting soft metal
5,Mach3 USB control system

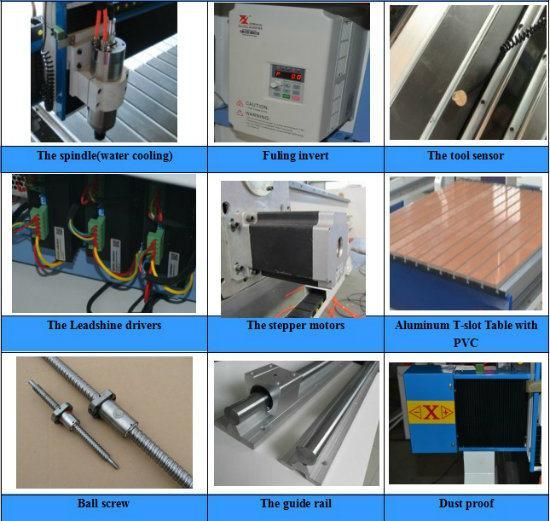

 Main parts of the machine:

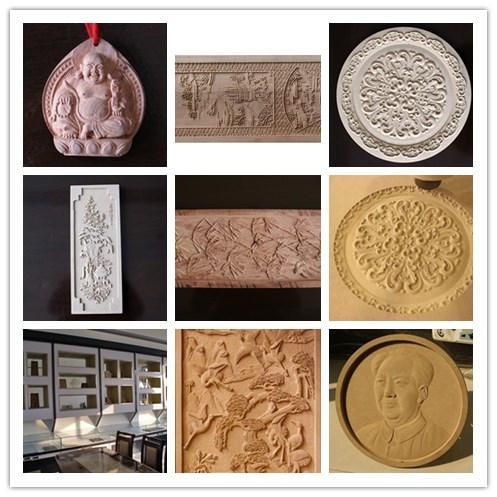

Application:

1. Advertising Materials: such as acrylic, plastic, PVC, etc. The cnc router is used for cutting large characters,
shape of groove for LED and neon and making sign.
2. Metal: copper, aluminum, stainless steel etc.
3. Wood: all kinds of wood, MDF, plywood. etc.

Packaging & Shipping

Our Services

 After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.



Company Information

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
