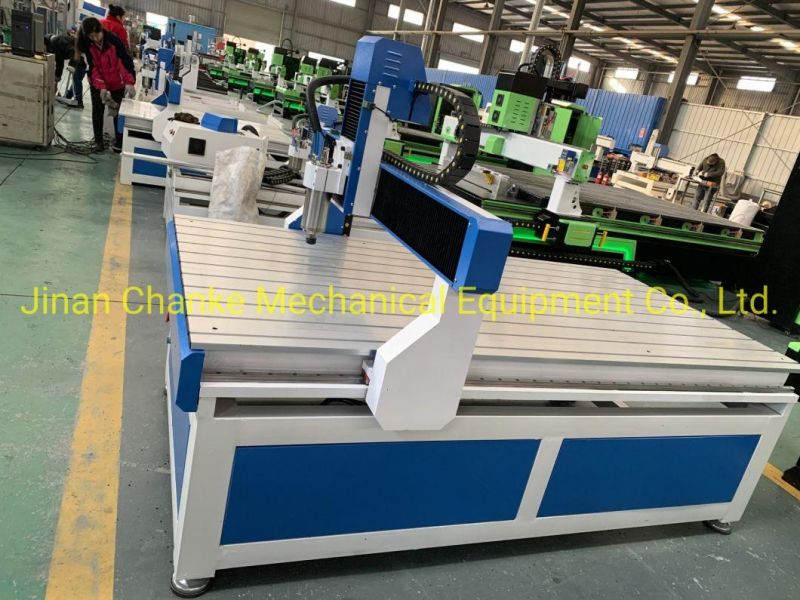

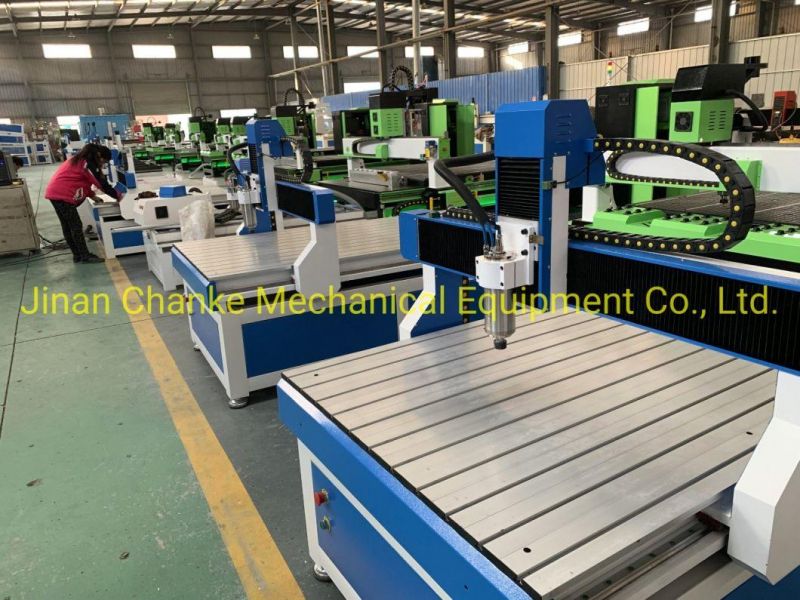

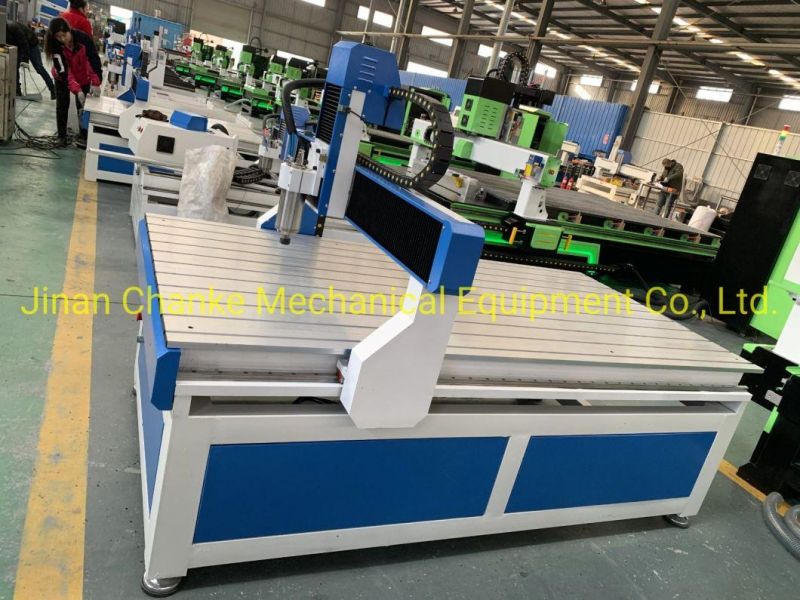

900X1800mm 3kw Water Cooling Spindle Small Wood Engraving CNC Machinery
Jinan Chanke Mechanical Equipment Co., Ltd.- Condition:New
- Certification:ISO, CE
- CNC or Not:CNC
- Voltage:220V
- Transport Package:Plywood Packing
- Specification:3200x2800x500mm
Base Info
- Model NO.:CK9018
- Trademark:CHANKE
- Origin:Shandong China
- HS Code:8465990000
- Production Capacity:50 Set,Year
Description
Basic Info.
Model NO. CK9018 Trademark CHANKE Origin Shandong China HS Code 8465990000 Production Capacity 50 Set/YearProduct Description
1. The table is made by whole and thick-walled steel pipe;2. Through finite element analysis (FEA) analysis and design, make the machine stability and high precision.
3. Rolling ball screw from Taiwan, original screw nut, imported linear and square rail for all the X, Y, Z axis.
4. Gantry movement for heavy products.
5. High speed: Max motion speed is 9000mm/min (optional).
6. Control system: PCI system, 3D display and following.
7. A variety of software compatibility: Compatible Wentai, carved, Tyie3, Artcam, Ucancam8, CAXA and other
CAD/CAM software.
8. Re-carving after stopping and the power failure may be restored. Processing time prediction
Technology Parmeter
Model | CK9018 |
Working Area | 900x1800x300mm |

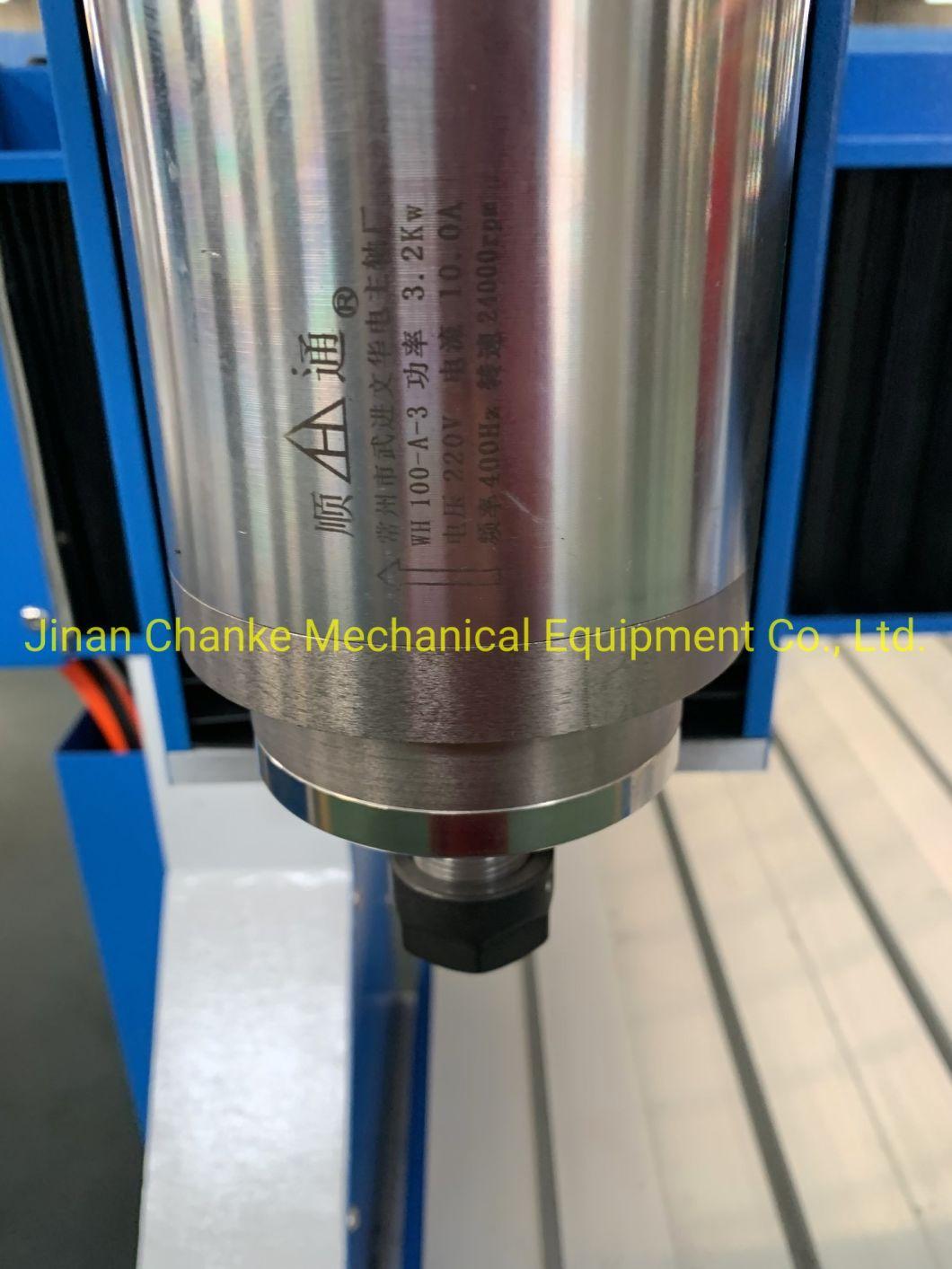

Spindle Motor | 1.5KW water cooling spindle (3.2KW spindle is optional) |
Working Mode | Leadshine drivers |
Control System | Mach3(NK 105 DSP controlling system is optional0 |
Drive Mechanism | x,y axis ,z axis Taiwan TBI ball screw |

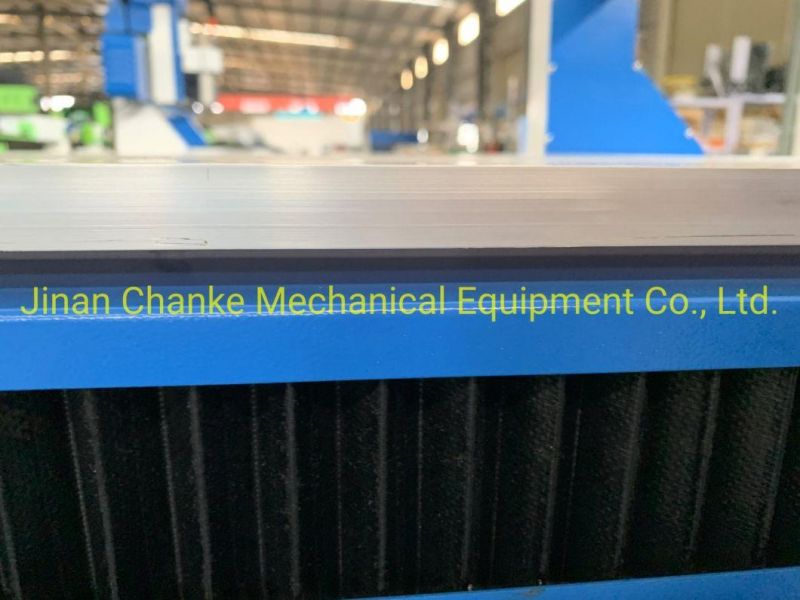

Table Surface | Vaccum /T-slot extrusions |
Frame | wholly steel structure |
Motion Positioning Accuracy | ± 0.03/300mm |
Repositioning Accuracy | ± 0.05mm |
Max Motion Speed | 6000mm/min |
Max Engraving Speed | 4500mm/min |
Rotating Speed of Spindle | 2,4000rpm |
Z-axis setting | Auto Z origin tool sensor |
Dictate Format | G code, *.u00, *.mmg, *.plt |
Operating Voltage | 3phase 380v/220v |
Software | Original Artcut software |
Packing Size | 1850*1800*1680MM |
Lubrication System | Oil lubrication system |
Net weight/ Gross Weight | 400kg/450kg |
