• Color：Iron Grey
• Model：Qsg300
• Working Width：300mm
• Working Thickness：2-100mm
• Feed Speed：2.5-12.5m,Min
• Quantity of Sanding Roller：4
• Total Motor Power：4.12kw
• Overall Dimensions：2745*875*1430mm
• Transport Package：Standard Export Packing
• Specification：ISO9001
• Trademark：HZH
• Origin：Qingdao
• HS Code：84659300
• Production Capacity：50sets,Month

Basic Info.

Color Iron Grey Model Qsg300 Working Width 300mm Working Thickness 2-100mm Feed Speed 2.5-12.5m/Min Quantity of Sanding Roller 4 Total Motor Power 4.12kw Overall Dimensions 2745*875*1430mm Transport Package Standard Export Packing Specification ISO9001 Trademark HZH Origin Qingdao HS Code 84659300 Production Capacity 50sets/Month

Product Description

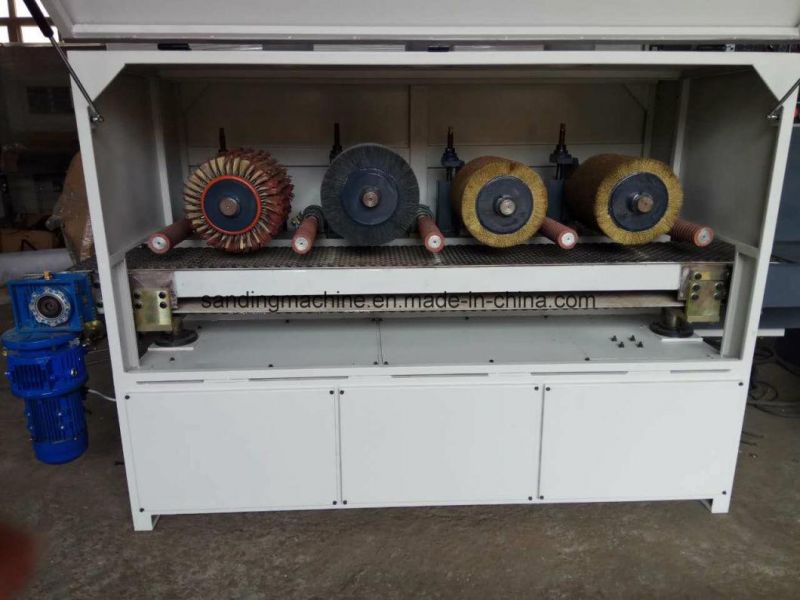

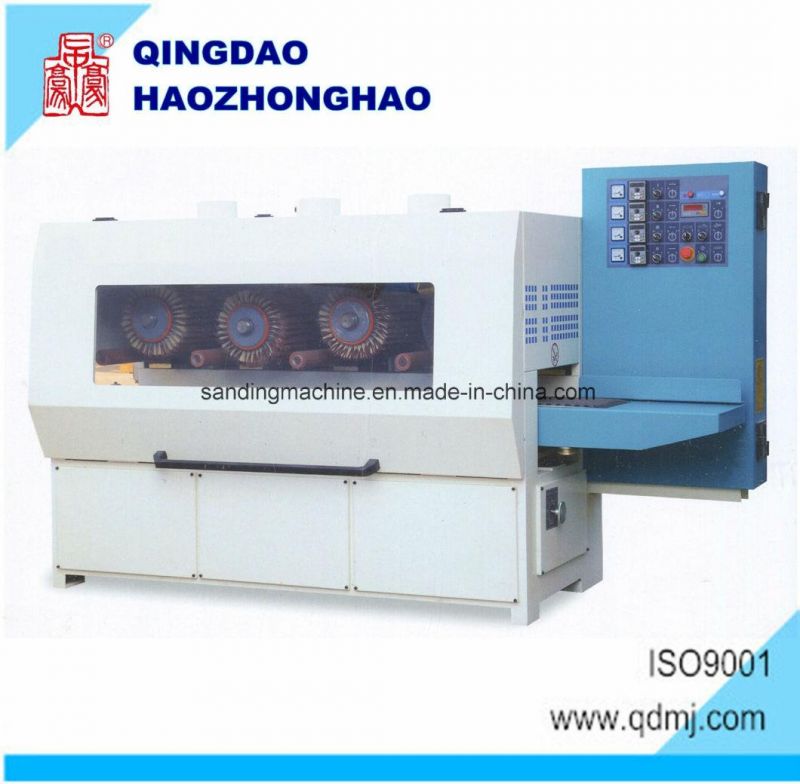

We supply Wood Curve Brush Polish sander machine for Panel

Model	QSG300	QSG450
Working Width	300mm	450mm
Working Thickness	2-100mm	2-100mm
Feed Speed	2.5-12.5m/min	2.5-12.5m/min
Number of Polishing Roller	4	4
Belt Speed	3-15.6m/s	3-15.6m/s
Speed of Sucked Air	More than 25m/s	More than 25m/s
Total Motor Power	4.12kw	4.12kw
Dust collector inlet diameter	Φ150*3	Φ150*3
Overall Dimensions	2745*875*1430mm	2745*1130*1430mm
Weight	1000kg	1200kg
Voltage	380V 50Hz 3Phase	380V 50Hz 3Phase

Function Characteristic
1 This machine is suitable for sanding and polishing the material surface ,for example concave-convex and planar solid wood,middle-high density Fiber board
2 Humanization design is geared to international standards; replace the emery cloth belt is very convenient
3 In order to meet the different techniques requirement, 4pcs sanding principal axis can frequency conversion speed independently.

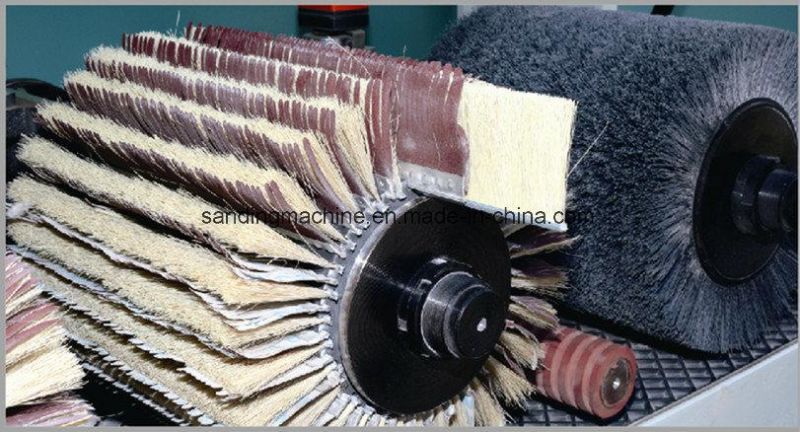

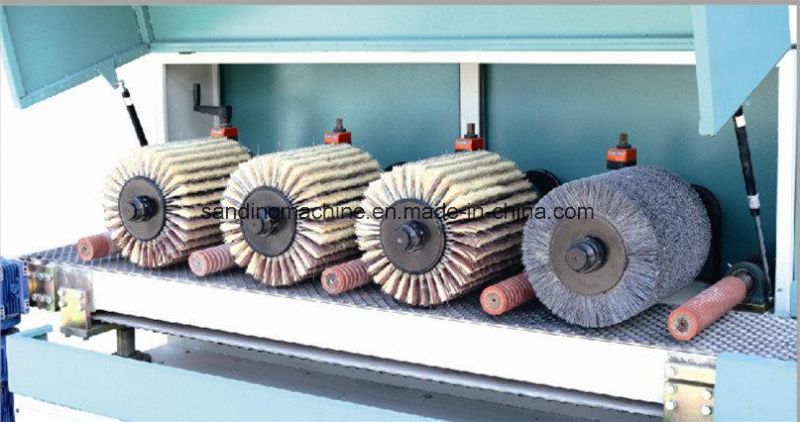

4 The first roller is 180# brush roller, the second is 240#, the third one is 320# and the Fourth is 3M roller for polishing, the grit of brush roller can be changed according to customer requirement
5 Each head can work separately and height of each head is adjustable separately

Brush roller can change to Wire brush roller for Drawing grain
Packaging & Shipping

Package: Plastic film package or as your requirement.

Delivery: About 30 days after receive the down payment



Company Information

 Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.



With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.



Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.

FAQ

What is the Warranty of machine?

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.



Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, CE certificate

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao sea port



How to contact us?

Phone;+86-134552970996

web: sandingmachine.en.made-in-china.com
