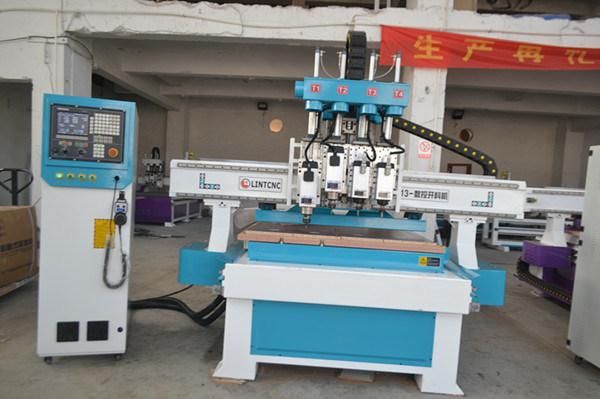

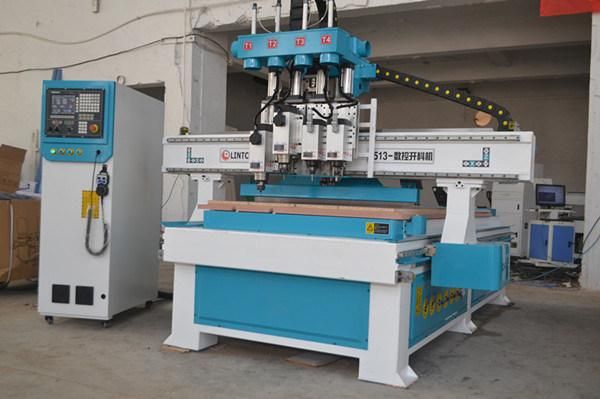

Low Price Sale 1325 CNC Router 3.0kw Three Head Spindle 3D Wood Engraving Machine for Sale
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Model：1325
- Working Area：1300(X)*2500(Y)*200(Z)mm
Base Info
- Model NO.：1325
- Machine Structure：Welded Steel Tube, Cast Iron Vertical Shafts and S
- Working Table：Vacuum Table with Vacuum Pump
- Spindle：3.5kw Air Cooling Spindle * 3 PCS
- Spindle Rotating Speed：0-18000 Rpm
- Collet Size：Er20
- Guide Rail：Taiwan Hiwin Linear Square Guide Rail
- Driving Method：X,Y Axis by Helical Gear Rack, Z Axis by Pneumatic
- Motors：Stepper Motors 450b
- Drivers：Leadshine Ma860h Drives
- Control System：Weihong 95A-3L Control System
- Inverter：Fuling Inverter
- Working Accuracy：<0.05,300mm
- Compatible Software：Type3,Castmate,Coreldraw,Autocad and Other Cam,CAD
- Transport Package：One Plywood Case
- Specification：3300*1950*1950mm; 1300KGS
- Trademark：LITIANZHIYUAN
- Origin：China
- HS Code：8465990000
- Production Capacity：600
Description
Basic Info.
Model NO. 1325 Machine Structure Welded Steel Tube, Cast Iron Vertical Shafts and S Working Table Vacuum Table with Vacuum Pump Spindle 3.5kw Air Cooling Spindle * 3 PCS Spindle Rotating Speed 0-18000 Rpm Collet Size Er20 Guide Rail Taiwan Hiwin Linear Square Guide Rail Driving Method X,Y Axis by Helical Gear Rack, Z Axis by Pneumatic Motors Stepper Motors 450b Drivers Leadshine Ma860h Drives Control System Weihong 95A-3L Control System Inverter Fuling Inverter Working Accuracy <0.05/300mm Compatible Software Type3/Castmate/Coreldraw/Autocad and Other Cam/CAD Transport Package One Plywood Case Specification 3300*1950*1950mm; 1300KGS Trademark LITIANZHIYUAN Origin China HS Code 8465990000 Production Capacity 600Product Description
Low price sale 1325 cnc router 3.0kw three head spindle 3D Wood engraving machine for sale
Product Description
Main Features
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Vacuum table +5.5kw Vacuum pump
4. X,Y axis by helicia gear rack, Z axis by pneumatic
5. Stepper motors 86BYG-450B and Leadshine drivers

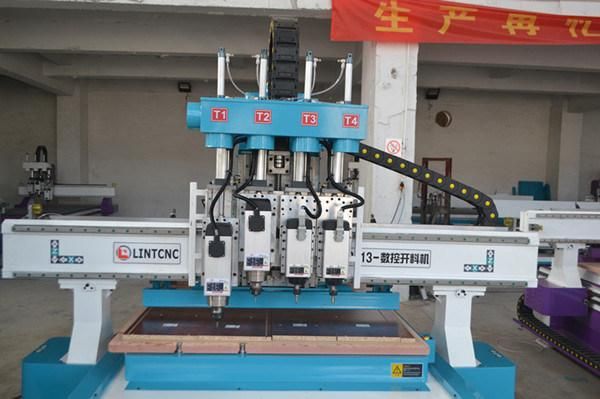

6. 3.0KW*3 air cooling spindle

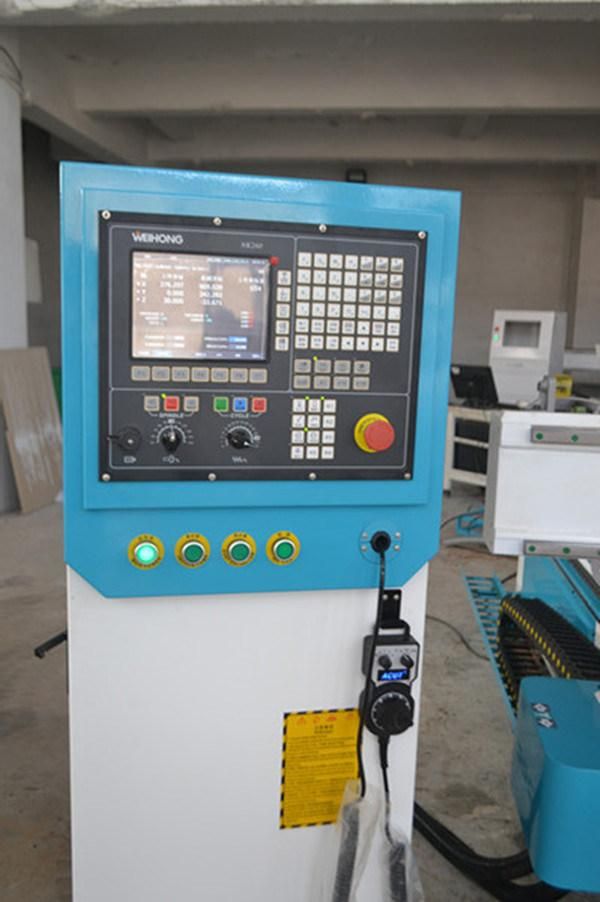

7. Ncstudio 95A-3L control system
8. Taiwan HIWIN linear square guide rail
9.With dust collector to suck the processing dust

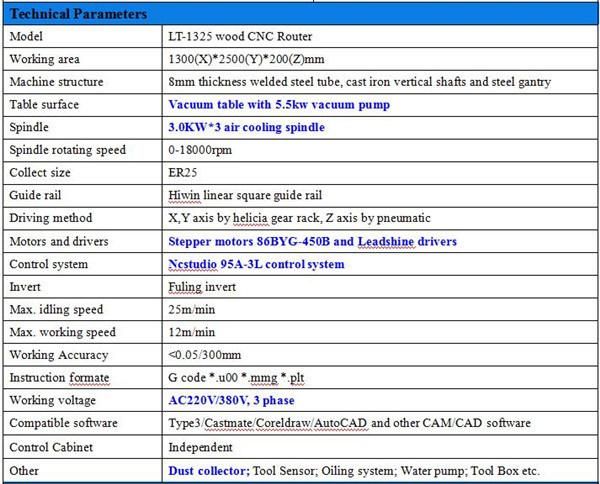

Technical parameter

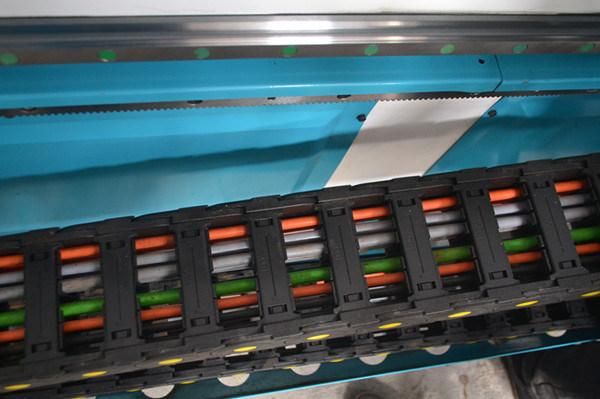

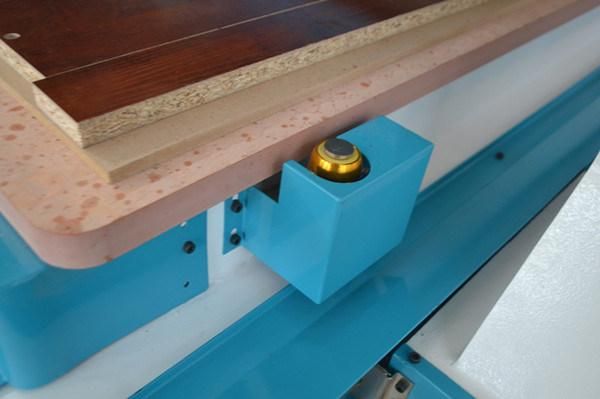

Main Machine Parts
Application
Wood Processing: processing of various furniture such as door, window, cabinet, screen
and so onAdvertisement: engraving and cutting various labels and number plate.
Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials wood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC,
acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Samples
Packaging & Shipping
--Warranty: 24 months for laser machine; 10 months for laser tube
--Technical support for the whole lifetime of laser machine
--If there is any part broken during warranty, then change it for free. if out of warranty, you can buy the
part at your market easily as we use very famous brand and we tell you the model, or you can buy it from
us and cost price can be promised

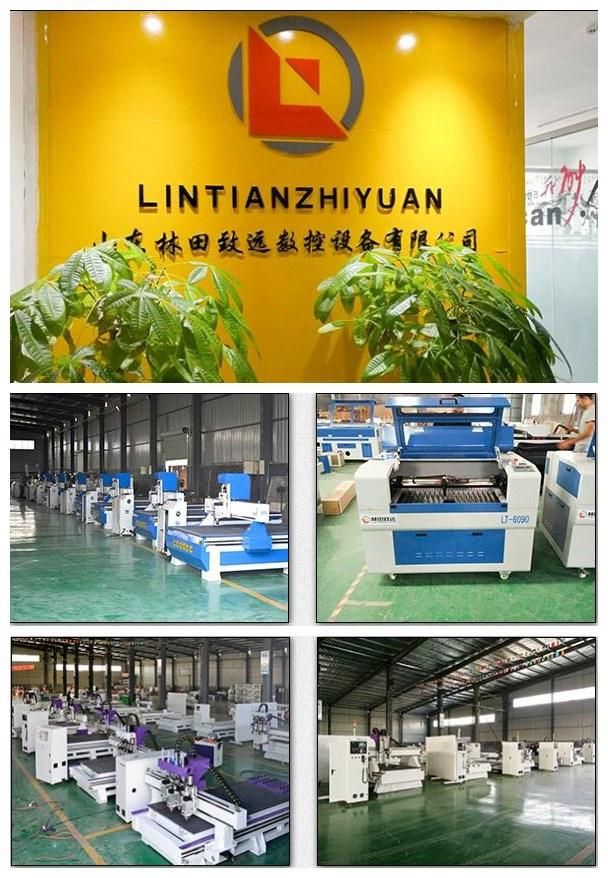

Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech
and high-quality products to build the world brand.Our main products: large scale (automatic tool change)
CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine,
CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machin,CNC metal mold
machine,laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter
product.
