Furnature Edge Banding Machine with Four Functions
Qingdao Zhongding Machinery Co., Ltd.- Function:Gluing, Edge Banding, End Trimming, Fine Trimming, Buffing
- Type:Linear Edge Banding Machine
- Edging thickness:0.4-3mm
- Automatic Grade:Automatic
- Panel Feeding Speed:10-23m,Min
- Certification:CE, ISO
Base Info
- Model NO.:R4
- Panel Thinkness:10-60mm
- Min.length panel:100mm
- Min.width panel:50mm
- Customized:Customized
- Transport Package:Wooden Case
- Origin:Qingdao
- HS Code:84659900
Description
Basic Info.
Model NO. R4 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Customized Customized Transport Package Wooden Case Origin Qingdao HS Code 84659900Product Description

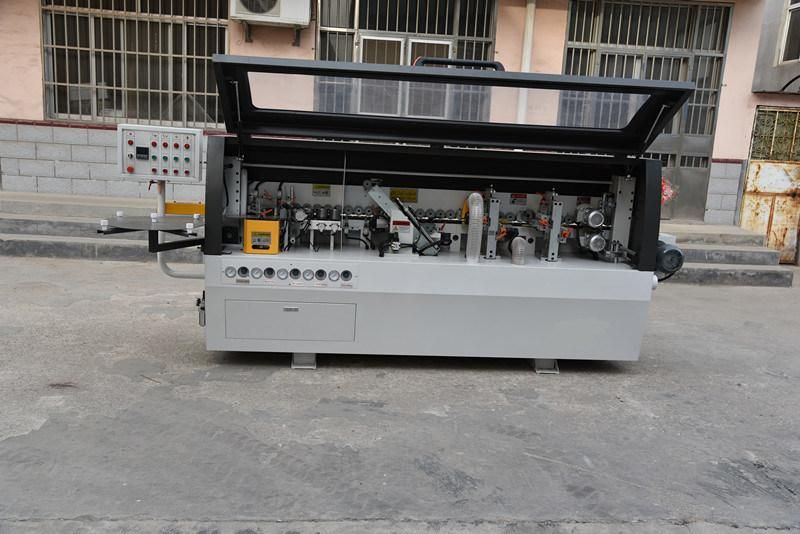

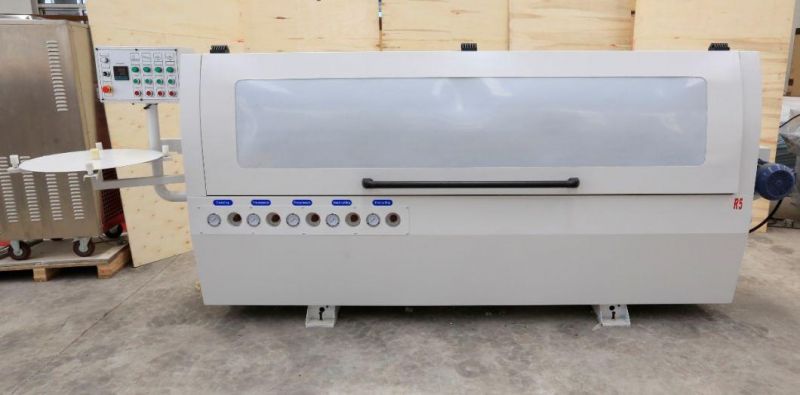

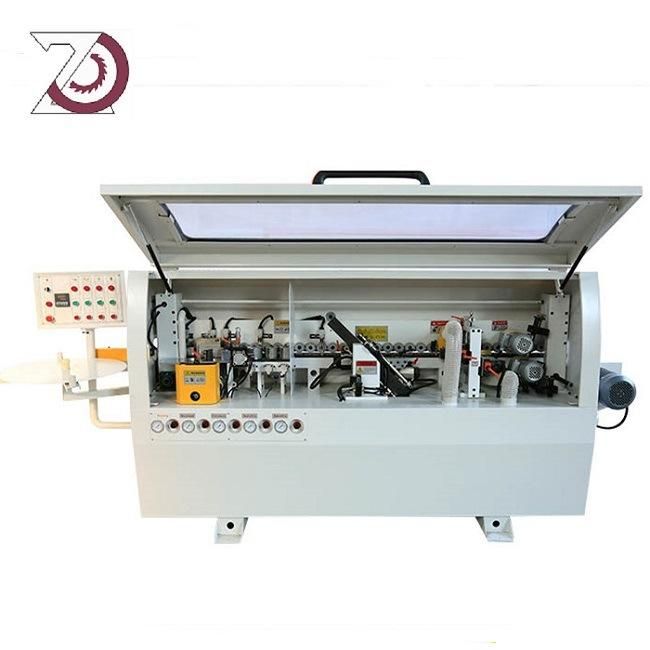

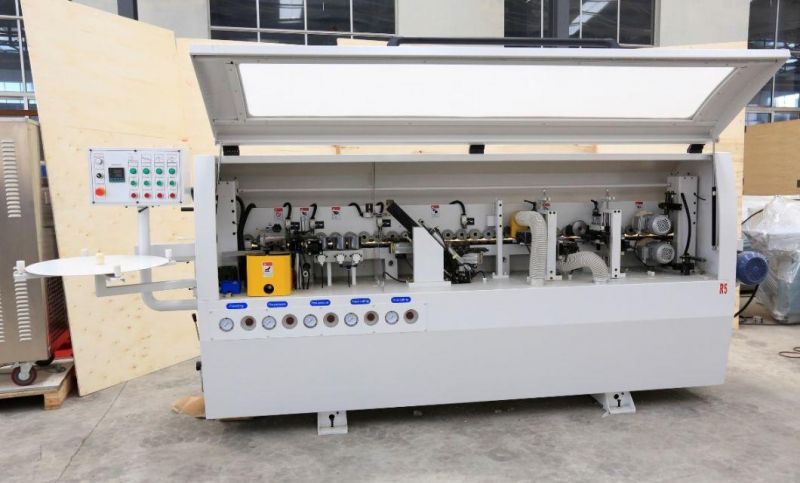

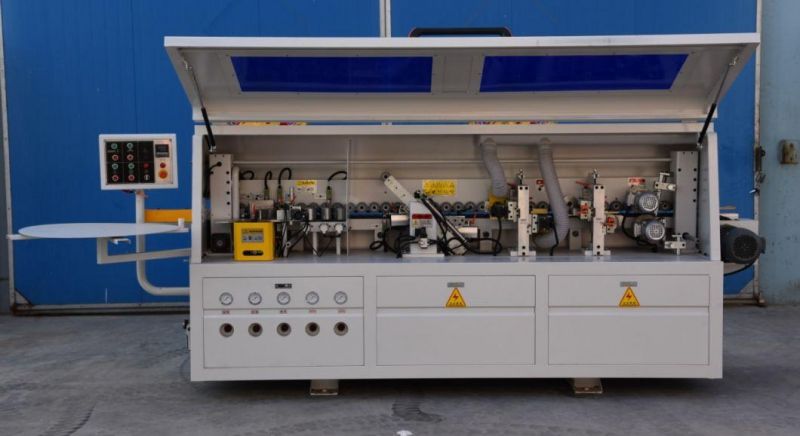

R4A Automatic Edge Banding Machine







Type | R5A |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Work piece width | >=50 mm |
Heating power | 1.5 KW |
Feeding motor power | 2.2 KW |
Glue spreading power | 0.37 KW |
End trimming power | 0.55 KW x 2 |
Fine trimming power | 0.75 KW x 2 |
Polishing motor power | 0.18 KW x 2 |
Feeding speed | 13 m/min |
Air pressure | 0.7 Mpa |
Total Power | 6.23 KW |
Overall dimension | 3600x900x1500 mm |
Packing size | 3670x1000x1600 mm |
N.W. | 1300 KGS |
G.W. | 1470 KGS |
Feature:
1.The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.

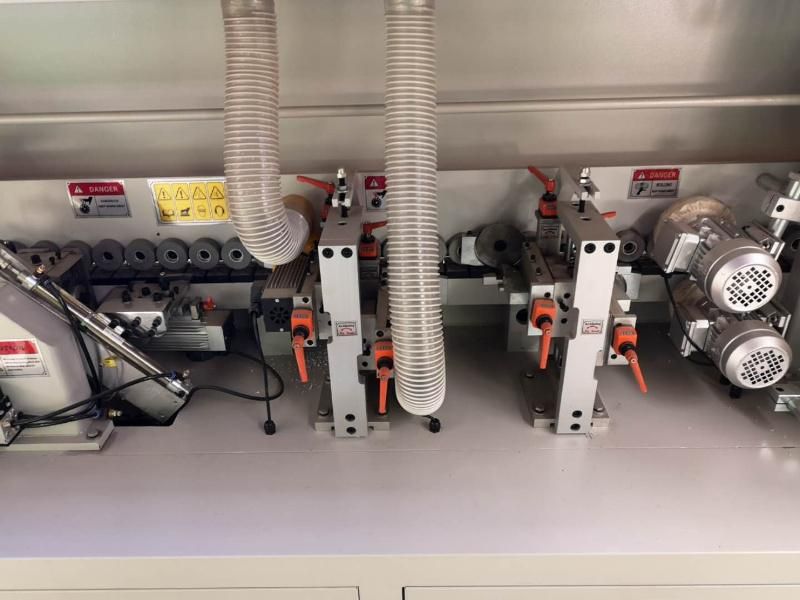

2.End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
3.Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
4.Scraping unit is for a perfect finishing of the applied edge.
5.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

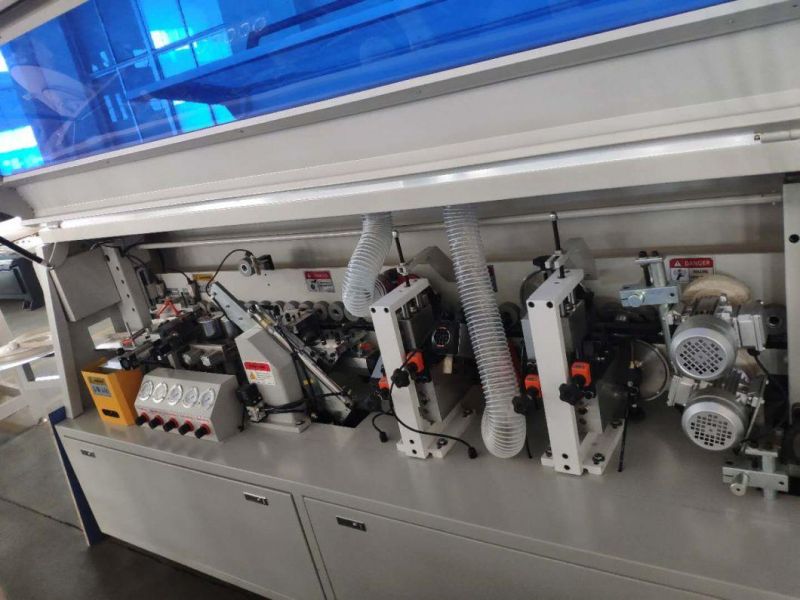

Product details:
