1325 4*8FT Four Process Woodworking CNC Router Machine

Jinan Zhongke CNC Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Vertical
  • Spindle Number：Four
  • Feed Mode：Manual
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Spindle Power：Air Cooling Spindle
  • Inverter：Sunfar
  • Control System：Weihong Control System
  • Table：Vacuum Adsorption Table
  • Motor：Hybrid Servo Motor
  • Transmission：Helical Rack
  • Guide Rail：Taiwan Hiwin Square Guide Rail
  • Spindle Speed：6000-18000
  • Application：Wooden Industry
  • Bed Structure：Welded Bed Structure
  • Transport Package：Plywood Package
  • Specification：1300*2500mm
  • Trademark：ZK
  • Origin：Jinan Shandong
  • HS Code：8465990000
  • Production Capacity：100

Description

ModelZK1325X,Y,Z axis working area1300*2500*200mmWhole structureWelded Steel gantry structureTable surfacevacuum table with 5.5KW vacuum pumpX,Y,Z structureTaiwan PMI/HIWIN Square linear guide railX,Y structureRack and pinion transmission, high speed and more stable;
Y -double motor driveZ structureImported ball screw, high precisionMax. idling speed50m/minMax. working speed25m/minRepositioning Accuracy±0.05mmX Y Z working Accuracy< 0.02mmSpindleAir cooling spindle(Optional:water cooling spindle)Spindle rotating speed6000-18000rpm/minDiameter of toolsΦ3.175 -Φ20Collect sizeER 25Operation languageG code (plt, mmg, uoo, bmp)Driving systemHybrid servo motorOperating systemNcstudio control systemWorking voltage 380V/3phaseSoftwareUcancamV8 / Type3 / Artcam software (option)

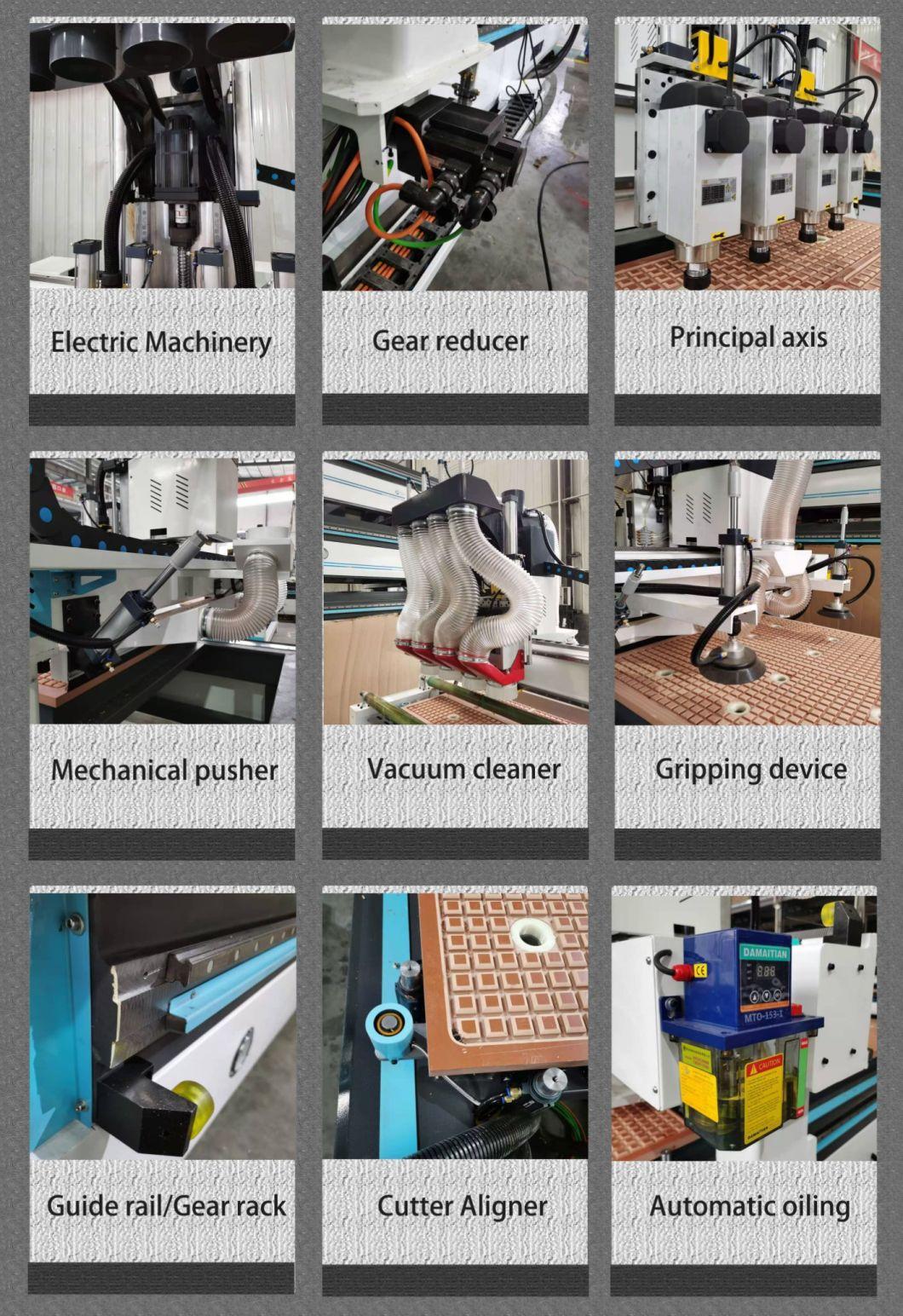

kConfiguration:

1325 4*8FT Four Process Woodworking CNC Router Machine
Samples

1325 4*8FT Four Process Woodworking CNC Router Machine
1325 4*8FT Four Process Woodworking CNC Router MachineTransport:
1325 4*8FT Four Process Woodworking CNC Router Machine1325 4*8FT Four Process Woodworking CNC Router Machine
Our factory:
1325 4*8FT Four Process Woodworking CNC Router Machine
1325 4*8FT Four Process Woodworking CNC Router Machine
